| Amperage Rating | : | 0.33 A Full Load |
| Application Type | : | Refrigeration Motors, Fan & Blower Motors |
| Bearing Type | : | Unit |
| Dimensions | : | 3-1/2 in Dia |
| Enclosure Type | : | TEFC |
| Frame | : | NEMA 51 |
| Frequency Rating | : | 50/60 Hz |
| Insulation Class | : | Class B |
| Material | : | Cast Iron |
| Mounting Type | : | All Angle |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | CCW |
| Shaft Size | : | 0.25 in Dia x 0.66 in L |
| Speed | : | 1550 rpm |
| Temperature Rating | : | 125 deg C |
| Type | : | Shaded Pole |
| Voltage Rating | : | 115 VAC |

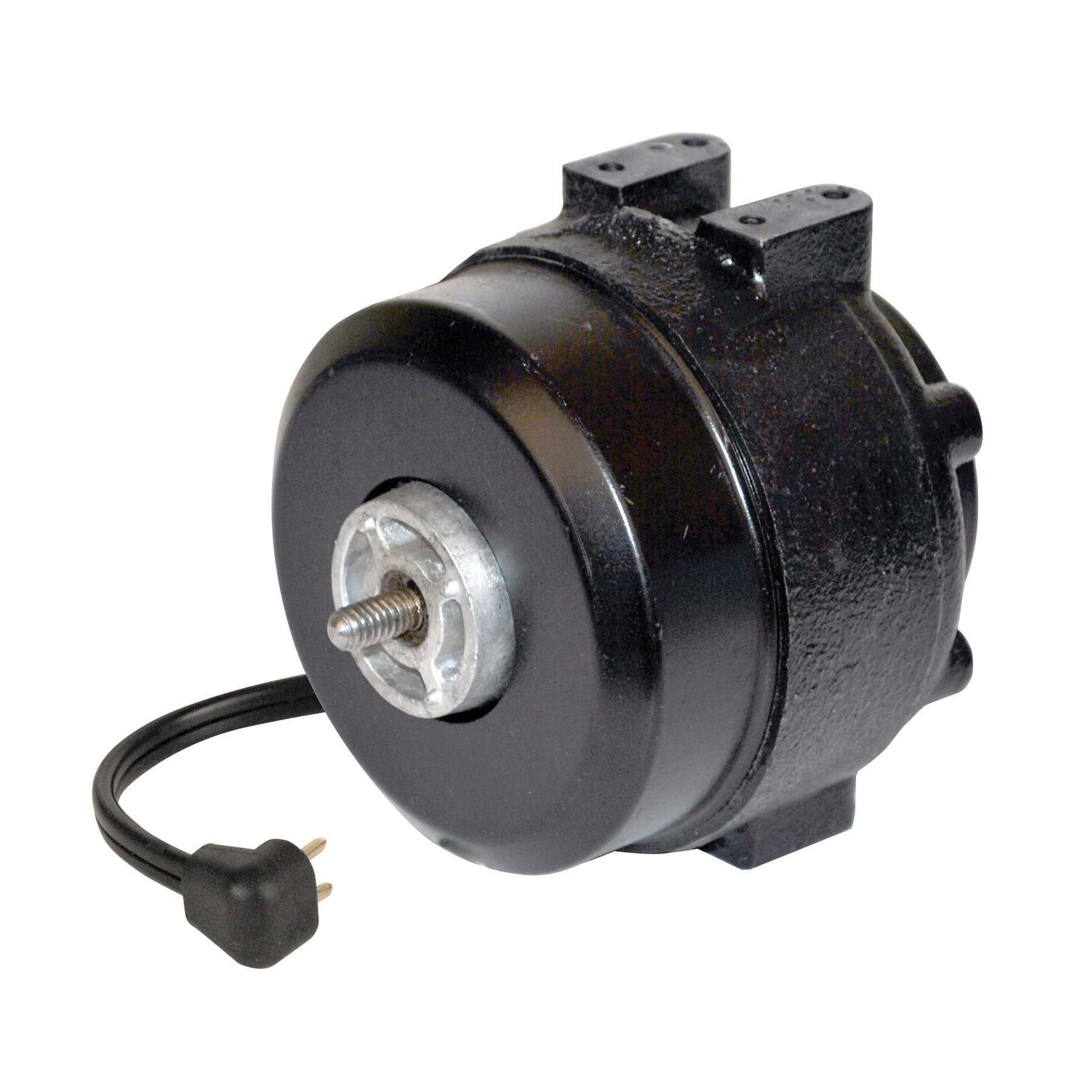

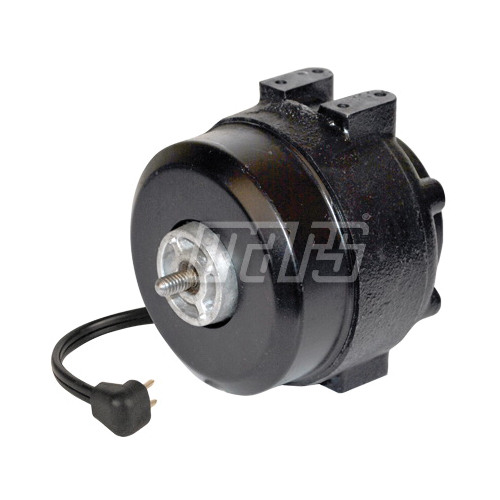

Mars® AC Motor, Shaded Pole, Refrigeration Motors, Fan & Blower Motors Application, 115 VAC, 0.33 A Full Load, 50/60 Hz Frequency, 1 ph ph, 1550 rpm Speed, 1 Speed, TEFC Enclosure, NEMA 51 Frame, 0.25 in Dia x 0.66 in L Shaft, CCW Rotation, Unit Bearing, All Angle Mounting, 125 deg C, Insulation Class: Class B, Cast Iron, 3-1/2 in Dia Dimensions
- Packed with vibration dampener, speed nut and screws
- Fan duty, continuous, air-over
- Impedance protection
- 1/4-20 threaded shaft
- Capacitor not included
