| Amperage Rating | : | 1.1 A Full Load |
| Application Type | : | Refrigeration Motors |
| Bearing Type | : | Sleeve |
| Dimensions | : | 3.3 in Dia |
| Enclosure Type | : | Open |
| Frame | : | NEMA 3.3 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/12 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | All Angle |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Shaft Size | : | 1/3 in Dia x 3 in L |
| Speed | : | 1550 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 115/230 VAC |
These motors replace hundreds of OEM shaded pole evaporator fan motors found in Bohn, Nutone, Chandler, Larkin, Kramer, Climate Control, McQuay, Heatcraft and reduce truck stock costs. These PSC type motors deliver more power and lower amp draw compared to shaded pole.

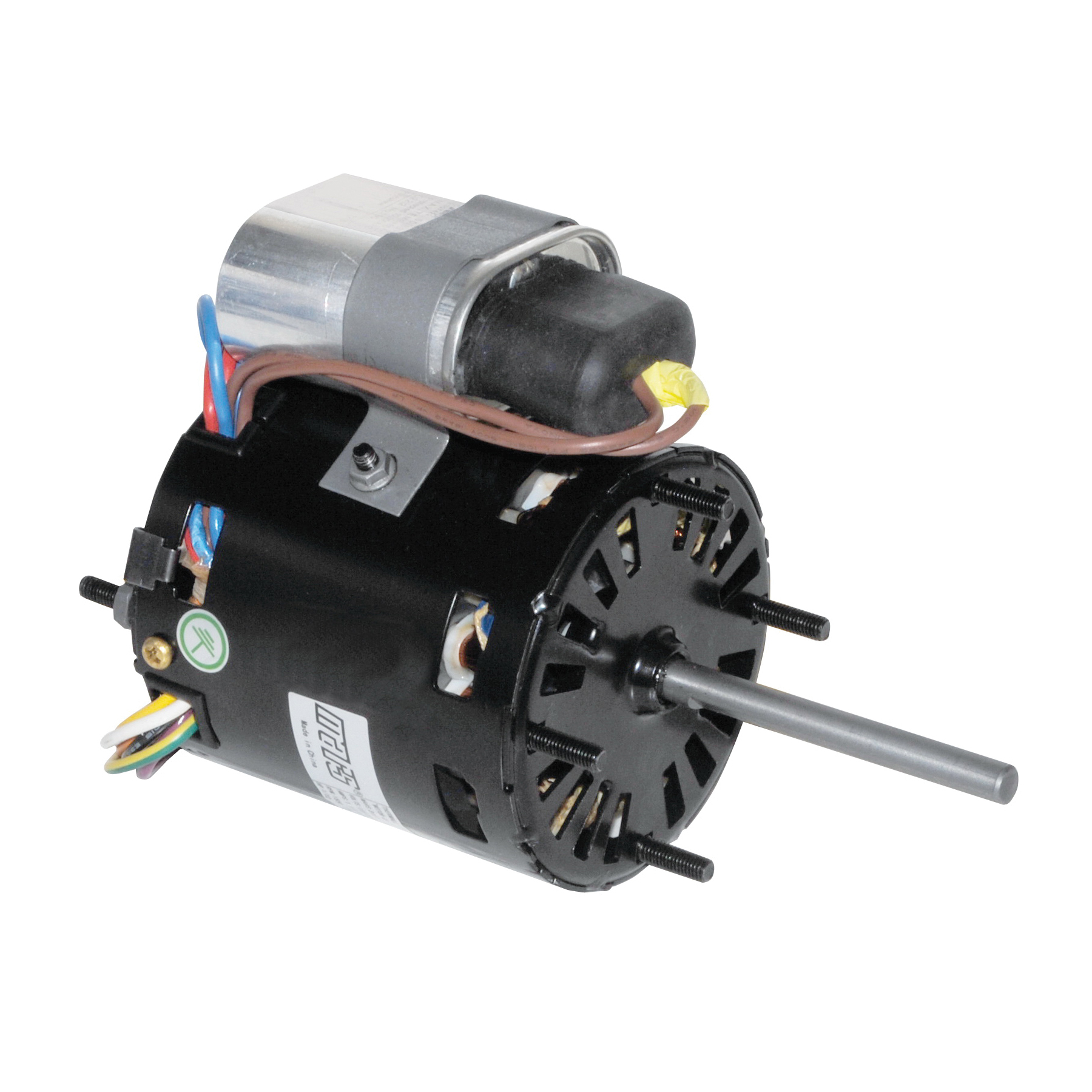

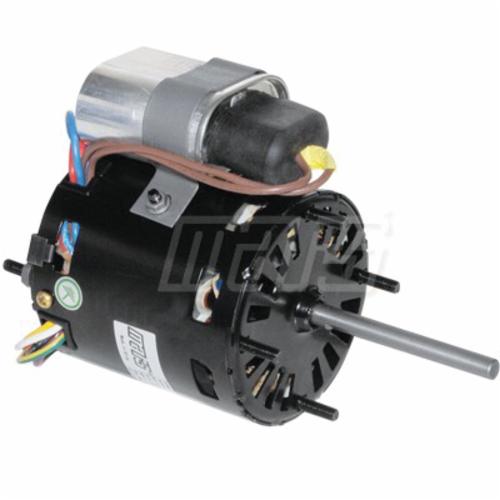

Mars® Refrigerator Motor, Application Type: Refrigeration Motors, 1/12 hp, 115/230 VAC, 1.1 A Full Load, 60 Hz, 1 ph, 1550 rpm, 1 Speed, Open, NEMA 3.3 Frame, 1/3 in Dia x 3 in L Shaft, Reversible, Sleeve Bearing, All Angle Mount, 60 deg C, Insulation Class: Class B, 3.3 in Dia
- Mounting - extended thru-bolt with nuts
- Low temperature lubricant
- Thermal overload protection
- 7.5 uF at 370 VAC capacitor required
