| Amperage Rating | : | 7.5 A Full Load |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | OAO |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | All Angle |
| Number of Speeds | : | 3 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 4-1/2 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 115 VAC |

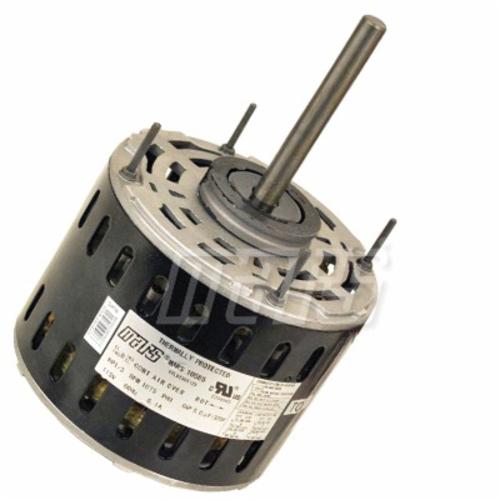

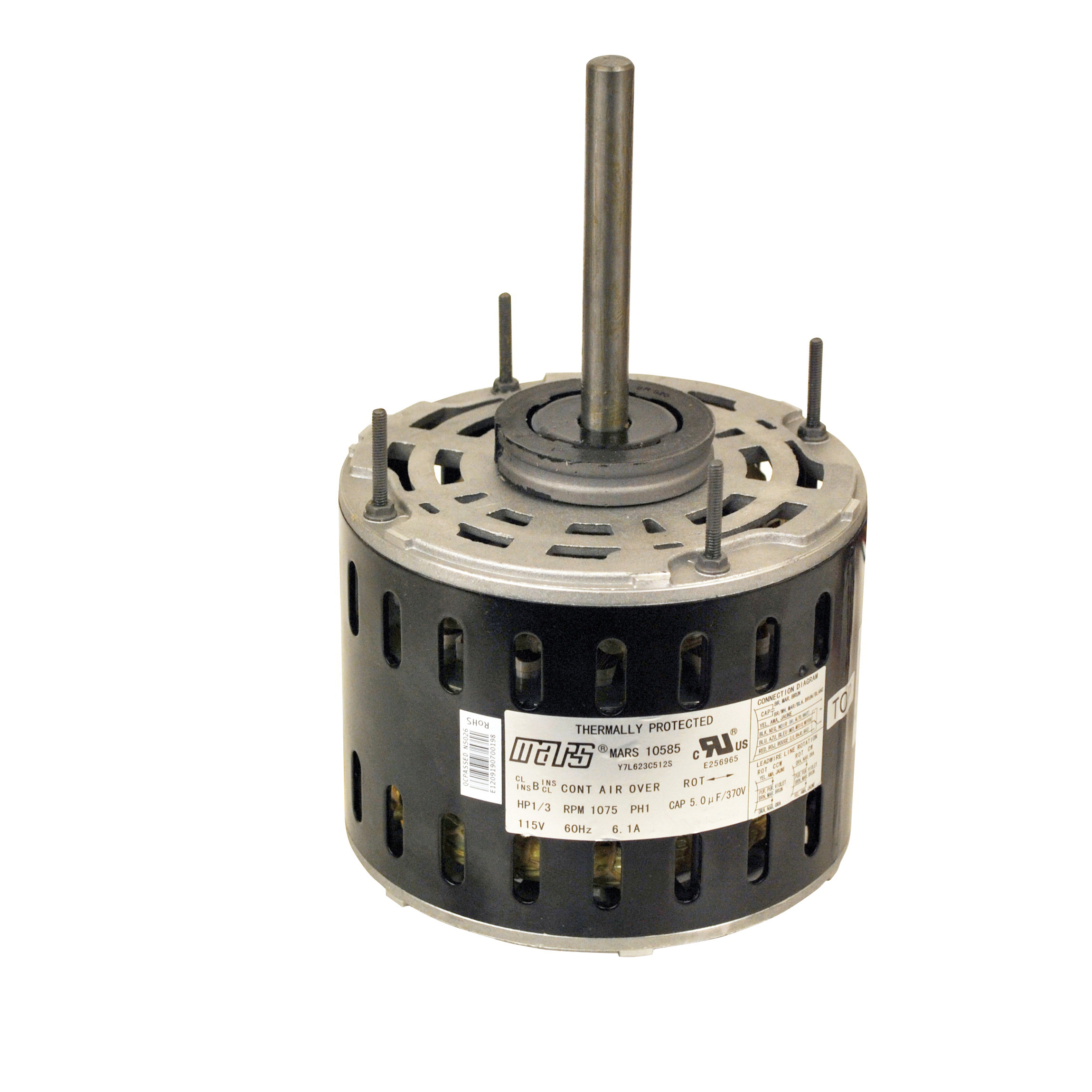

MARS direct drive furnace blower motors are three speed standard efficiency models. All models are electrically reversible and include 2-1/4 inch resilient rings for base mounting. These models have all angle sleeve bearings and have open air over enclosures.
Mars® Direct Drive Furnace Blower Motor, 1/2 hp, 115 VAC, 7.5 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, OAO Enclosure, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible Rotation, Sleeve Bearing, All Angle Mounting, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
- Rheem® mounting holes
- 1/2 in extended thru-bolt
- 2-1/4 in resilient rings
- Fan duty, continuous, air-over
- Comes with auto thermal protection
- Capacitor not included
- 10 uF at 370 VAC capacitor required
