Malco® 815CW

Malco® Zip-In® HW8X1ZWT Self-Piercing Sheet Metal Screw, #8, 3 in OAL, Hex Washer Head, Slotted Drive, Zinc Plated, Tapered Sharp Point

Manufacturer: Malco Products
Brand Name: Malco®
Part#: 815CW
MPN: HW8X1ZWT
Min. Order Qty: 1
Sold As: 500/TB
Login for Availability
Login for Price
Color      :      White
Diameter - Thread Size      :      #8
Drive Type      :      Slotted
Finish      :      Zinc Plated
Head Size      :      1/4 in
Head Type      :      Hex Washer
Overall Length      :      3 in
Point Type      :      Tapered Sharp
Thread Length      :      1 in
Thread Type      :      Double
Type      :      Self-Piercing

A unique thread design and quality controlled manufacture spell the Zip-In difference. Zip-In's sophisticated heat treat process allows the screw to taper to a fine, sharp point without sacrificing critical point strength. A single starting thread is formed down to the very tip of the point and is the source of Zip-In's penetrating power. A second thread above the point engages after initial penetration and drills in the screw double fast. Zip-In screws are faster driving, with a greater capacity for fastening heavier gas of sheet metal than any other self-piercing type.

Malco® Zip-In® Sheet Metal Screw, Self-Piercing, #8 Thread, 3 in Overall Length, Hex Washer Head, Slotted Drive, Zinc Plated, Tapered Sharp Point, 1/4 in Head, Double Thread, 1 in Thread Length, White

  • Undercut - indented hex washer slotted head
  • Bright zinc plated
  • Burr free
  • Full 1/4 in (# 8) head will not strip out of hex driver opening at anytime during operation
  • One 1/4 in hex driver accommodates all sizes
  • Undercut - always seats flush
  • Trademarked and patented head markings indicate one and only genuine Zip-In®
  • Combination lead double thread design
  • Single starting thread machined down to very tip of screw point

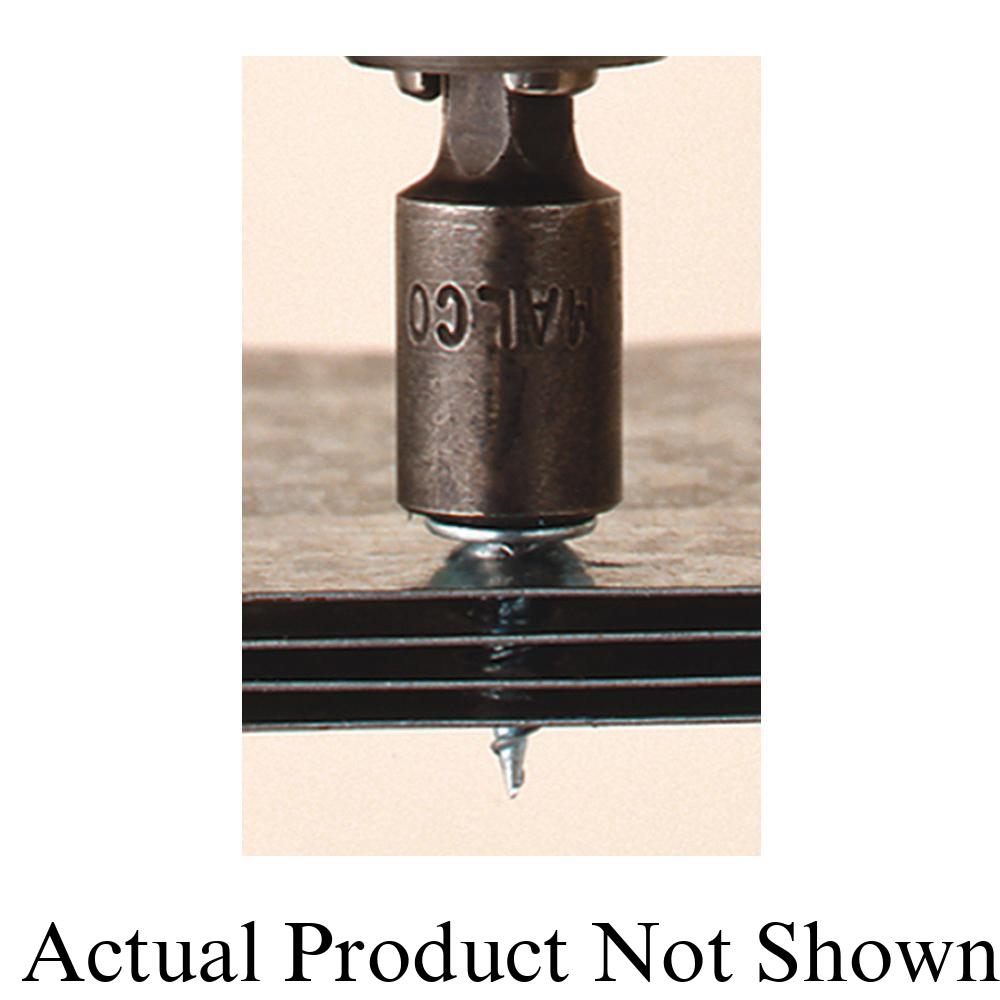

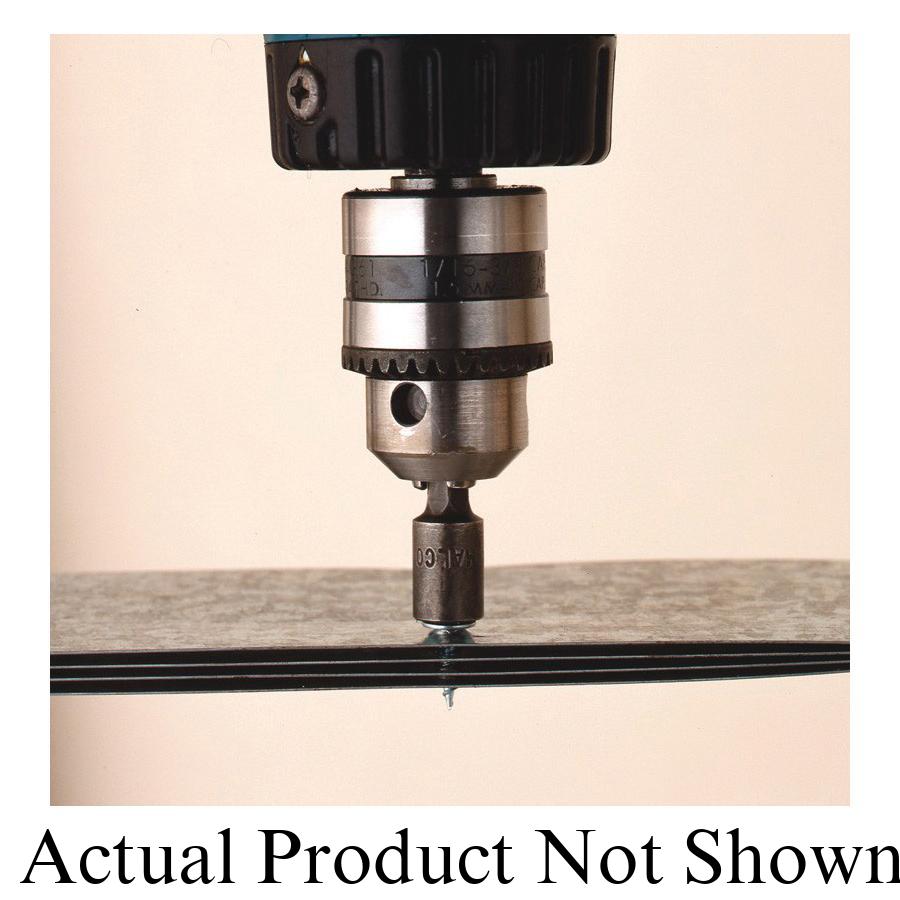

  • Instantly penetrates and engages in heavy gauge sheet metal and layered light gauge
  • Consistent hard point
  • Quality controlled heat treat
  • Sharp tapered point will not mushroom or break
  • No walking
