MagicPak® 7MHP411301FP

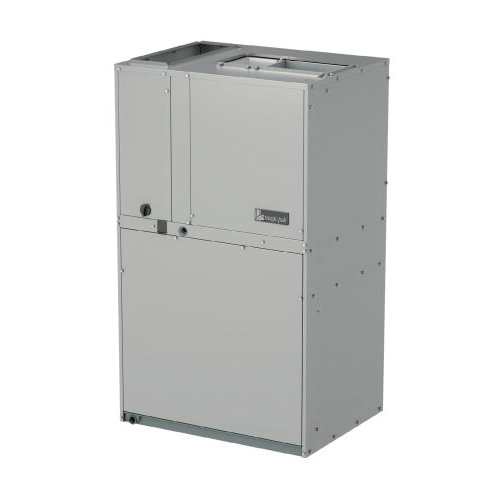

MagicPak® 1.513012 M Series™/MHP4 Electric Heat Pump Packaged Unit, 16400 Btu/hr at 17 deg F/26200 Btu/hr at 47 deg F Heating, 28200 Btu/hr Cooling, 208/230 VAC, 7 kW, 1 ph, 60 Hz, 11 EER, 8 HSPF

Manufacturer: Allied Air Enterprises
Brand Name: MagicPak®
Part#: 7MHP411301FP
MPN: 1.513012
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
COP Rating      :      2 at 17 deg F/3.3 at 47 deg F
Cooling Capacity      :      28200 Btu/hr
Dimensions      :      28-1/16 in W x 24-3/8 in D x 55-7/8 in H
EER Rating      :      11
Flow Rate      :      1025 scfm
HSPF Rating      :      8
Heating Capacity      :      16400 Btu/hr at 17 deg F/26200 Btu/hr at 47 deg F
Material      :      Steel
Motor HP      :      1/2 hp Blower, 1/4 hp Fan
Motor RPM      :      1100 rpm Fan
Power Source      :      208/230 VAC, 7 kW, 1 ph, 60 Hz
Refrigerant Type      :      R-410A
Series      :      M Series™/MHP4
Sound Level      :      79 dBA
Temperature Rating      :      17 deg F and 47 deg F

MagicPak® Electric Heat Pump Packaged Unit, Series: M Series™/MHP4, 16400 Btu/hr at 17 deg F/26200 Btu/hr at 47 deg F Heating, 28200 Btu/hr Cooling, 208/230 VAC, 7 kW, 1 ph, 60 Hz Power Source, 1025 scfm Flow Rate, 11 EER, 8 HSPF, 2 at 17 deg F/3.3 at 47 deg F COP, R-410A Refrigerant, 1/2 hp Blower, 1/4 hp Fan Motor, 1100 rpm Fan, 17 deg F and 47 deg F, 79 dBA Sound Level, Steel, 28-1/16 in W x 24-3/8 in D x 55-7/8 in H Dimensions

  • Fully ducted system
  • Individual metering and control for each unit
  • Easy plug-and-play-like install and service
  • Top supply and return
  • Nominal cfm at 0.5 in-WC
  • <1.4% cabinet air leak
  • Pre-wired and pre-charged
  • Factory installed evaporator drain float switch
  • Factory installed ventilation air capabilities
