LittleGIANT® EC1

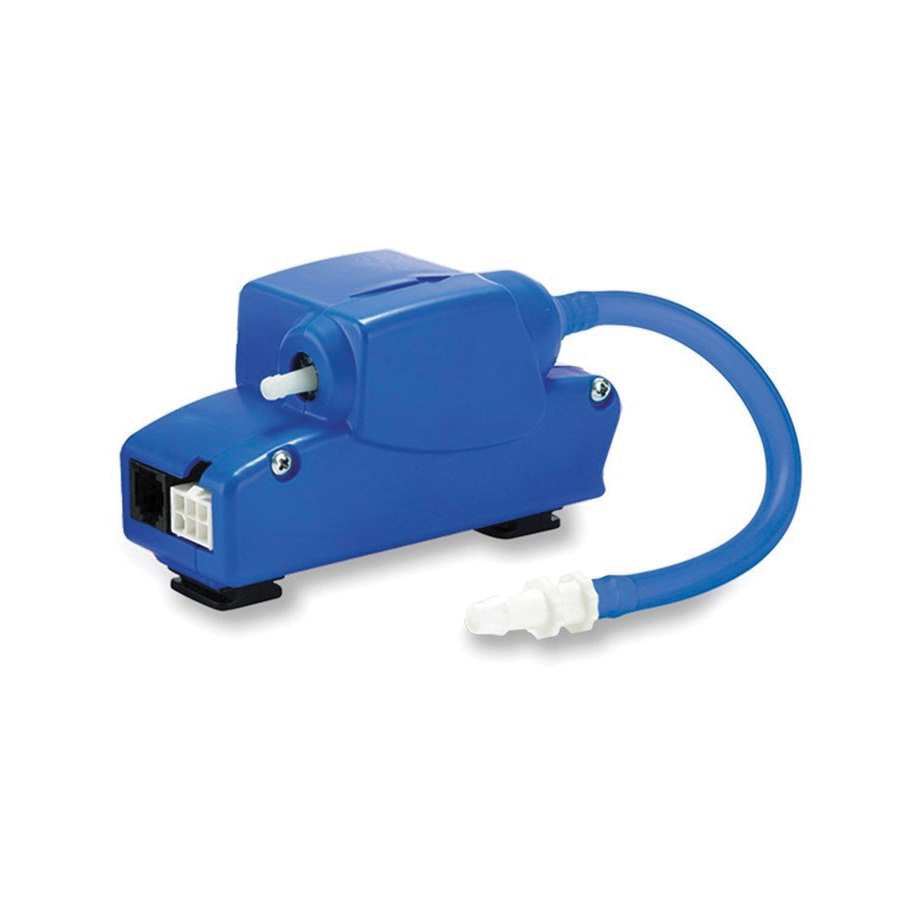

Little Giant® 553507 EC-1 Mini-Split/Ductless Condensate Removal Pump, 2.5 gph Flow Rate, 1/4 in Barb Outlet, 33 ft Shutoff Head, 19 W Power Rating, Import
| Cord Type | : | 7 ft Power |
| Dimensions | : | 1.8 in L x 2.4 in W x 4.1 in H |
| Domestic/Import | : | Import |
| Electrical Ratings | : | 110 to 240 V 60 Hz 0.24 A |
| Flow Rate | : | 2.5 gph |
| Maximum Pressure | : | 26 psi |
| Mounting Type | : | Wall |
| Outlet Size | : | 1/4 in Barb |
| Power Rating | : | 19 W |
| Series | : | EC-1 |
| Shutoff Head | : | 33 ft |
| Sound Level | : | 21 dB |
| Temperature Rating | : | 32 to 140 deg F Ambient |
| Type | : | Mini-Split/Ductless |
The EC-1-DV model is designed to accommodate multiple electrical requirements within one pump. The DV suffix indicates that the pump is capable of operating from a wide range of supply voltage to maintain consistent pump performance. The EC-1-DV Series is a new concept for mini pumps incorporating an improved noise reducing design and reliable solid-state switching technology. Easy to install brackets provide a quick and precise method to accurately position and secure both parts of the pump quickly. The two-piece design allows the reservoir to be placed within the air handler while the pump-controller is located outside the air handler. The two components are connected via a convenient communications wire and suction tubing. EC-1-DV is designed for use in removing condensate from wall mount, ductless mini-split air conditioners up to 34000 Btu/hr. It can also be used to remove condensate from fan coils and suspended ceiling air conditioners. The pump can be installed above the air conditioner in a false ceiling behind the wall mount air handler, or in plastic conduit or line-set channel. The reservoir, featuring a clear tank, connects to the condensate drain hose and must be positioned flat and horizontal while the pump can be oriented in any position within 3.3 ft.
Little Giant® Condensate Removal Pump, Mini-Split/Ductless, Series: EC-1, 2.5 gph, 1/4 in Barb Outlet, 33 ft Shutoff Head, 19 W Power, 110 to 240 V 60 Hz 0.24 A Electrical Rating, 26 psi Maximum, 7 ft Power Cord, Wall Mounting, 21 dB Sound Level, 32 to 140 deg F Ambient, 1.8 in L x 2.4 in W x 4.1 in H Dimensions, Import
- Normally closed relay rated 8 A resistive 250 V alarm
- Quick-connect for pump-to-reservoir communications
- Quick-connect of power cable
- Pump bracket designed to isolate noise
- Multi-size hose drain adapter fits all popular drain hose connectors
- Clear reservoir for instant visual inspection of water level, float and filter
- Hall effect on/off level sensors with high water safety sensor
- Extra-large filter screen for longer intervals between cleaning
- 2.5 gph at 1 ft H
- Automatic switch/operation
