LG PMBD3630

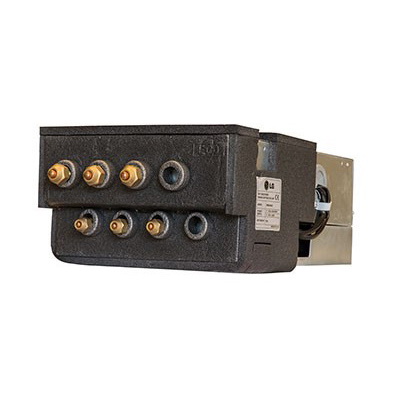

LG PMBD3630 3-Port Branch Distribution Unit

Manufacturer: LG Electronics
Brand Name: LG
Part#: PMBD3630
MPN: PMBD3630
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Accessory Type      :      Accessory
Domestic/Import      :      Import
Specifications      :      24 W Input Power 208 to 230 VAC 60 Hz 1 ph 0.12 A 24000 to 72000 Btu/hr Nominal Capacity
Suitable For Use With      :      LMU540HV LG Multi F Max Outdoor Unit

Branch distribution units are designed for use with LG Multi F MAX (LMU540HV) outdoor units. The branch distribution unit is used as an intermediate refrigerant control device between the outdoor unit and the indoor units to effectively and efficiently control the heating or cooling operation of the system through the use of electronic expansion valves.

LG 3-Port Branch Distribution Unit, Accessory Type: Accessory, For Use with: LMU540HV LG Multi F Max Outdoor Unit, 24 W Input Power 208 to 230 VAC 60 Hz 1 ph 0.12 A 24000 to 72000 Btu/hr Nominal Capacity, Import

  • Piping connection to outdoor unit 3/8 in (OD) liquid line, 3/4 in (OD) vapor line
  • Piping connection to indoor unit 1/4 in (OD) liquid line, 3/8 in (OD) vapor line
  • Distributes refrigerant to indoor units
  • Internal components are insulated
  • Flare joints provided for easy installation
  • Compact design
  • 0 to 122 deg F temperature
