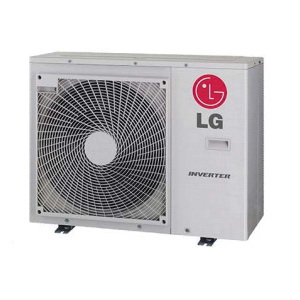

LG LMU30CHV
LG LMU30CHV Multi F Ductless Quad-Zone Outdoor Unit, 32000 Btu/hr Heating, 30000 Btu/hr Cooling, 208/230 V AC, 1 ph, 60 Hz, 22 SEER, 13 EER, R-410A Refrigerant
| Compressor Type | : | Twin Rotary |
| Cooling Capacity | : | 30000 Btu/hr |
| Dimensions | : | 37-13/32 in W x 13 in D x 32-27/32 in H |
| Discharge Line Size | : | 1/4 in |
| Domestic/Import | : | Domestic |
| EER Rating | : | 13 |
| Flow Rate | : | 2119 cfm |
| Fuse Size | : | 25 A |
| Heating Capacity | : | 32000 Btu/hr |
| Maximum Piping Length | : | 82 ft |
| Mounting Type | : | Wall |
| Nominal Capacity | : | 30000 Btu/hr |
| Power Source | : | 208/230 V AC, 1 ph, 60 Hz |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 22 |
| Series | : | Multi F |
| Sound Level | : | 55 dBA |
| Suction Line Size | : | 3/8 in |
| Type | : | Ductless Quad-Zone |
Multi F series outdoor units can support two, three, four or eight indoor units for maximum design flexibility. Choose from 18000, 24000, 30000 and 36000 Btu/hr capacities. Space-saving footprint in a heat pump configuration, Multi F outdoor units include advanced Inverter (variable-drive compressor) technology, and enable easy installation with little to no ductwork required.
LG Outdoor Unit, Ductless Quad-Zone, Series: Multi F, 30000 Btu/hr Nominal, 32000 Btu/hr Heating, 30000 Btu/hr Cooling, 208/230 V AC, 1 ph, 60 Hz Power Source, 2119 cfm, 13 EER, 22 SEER, Twin Rotary Compressor, R-410A Refrigerant, 3/8 in Suction Line, 1/4 in Discharge Line, 25 A Fuse, 55 dBA Sound Level, 82 ft Maximum Piping Length, Wall Mounting, 37-13/32 in W x 13 in D x 32-27/32 in H Dimensions, Domestic
- Inverter variable speed compressor maintains temperature while reducing energy consumption
- Supports multiple indoor units for personalized comfort
- Compatible with both ducted and duct-free indoor units for maximum design flexibility
- Quiet operation reduces noise pollution
