| Close Pressure Rating | : | 418 psi |
| Connection Type | : | 1/4 in Female Flare with Deflator |
| Domestic/Import | : | Import |
| Mounting Type | : | Direct |
| Open Pressure Rating | : | 590 psi |
| Series | : | 4 Series |
| Switch Action | : | Open on Rise |
| Switch Type | : | SPST |
The 4 - Series Klixon Pressure Switches. This newest set of designs delivers the reliability and performance that has made Klixon the most trusted name in the electromechanical sensor business. The 4 - Series line of pressure switches covers many new R410A applications along with traditional pressure setting switches. Klixon Brand, UL and CUL, Compact size, light weight for direct mounting, Factory Set, Hermetically Sealed Sensor. 5.8 FLA - 34.8 LRA @ 120 VAC, 2.9 FLA - 15.0 LRA @ 240 VAC, 100,000 Cycle Life at Rated Current.

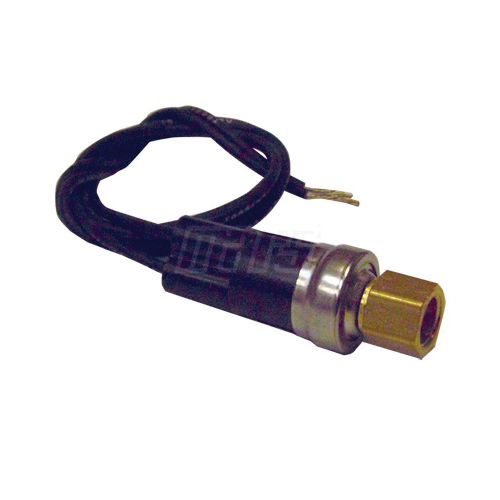

Klixon® by Mars® Pressure Switch, Series: 4 Series, SPST Switch, Open On Rise, 418 psi Close, 590 psi Open Pressure, 1/4 in Female Flare with Deflator, Direct Mount, Import
- Tamper proof construction
- Direct mounting on tubing
- Fixed setting pressure controls high pressure cut-out
- Contacts rated at 6 amps, 24 to 240 VAC
- Range psi: +/-15
- Lead length: 45 in black XLP wire, 1/2 in stripped ends
- Auto reset
