| Close Pressure Rating | : | 95 psi |
| Connection Type | : | 1/4 in Female Flare with Deflator |
| Domestic/Import | : | Import |
| Mounting Type | : | Direct |
| Open Pressure Rating | : | 50 psi |
| Series | : | 4 Series |
| Switch Action | : | Close On Rise |
| Switch Type | : | SPST |
The 4 - Series Klixon Pressure Switches. This newest set of designs delivers the reliability and performance that has made Klixon the most trusted name in the electromechanical sensor business. The 4 - Series line of pressure switches covers many new R410A applications along with traditional pressure setting switches. Klixon Brand, UL and CUL, Compact size, light weight for direct mounting, Factory Set, Hermetically Sealed Sensor. 5.8 FLA - 34.8 LRA @ 120 VAC, 2.9 FLA - 15.0 LRA @ 240 VAC, 100,000 Cycle Life at Rated Current.

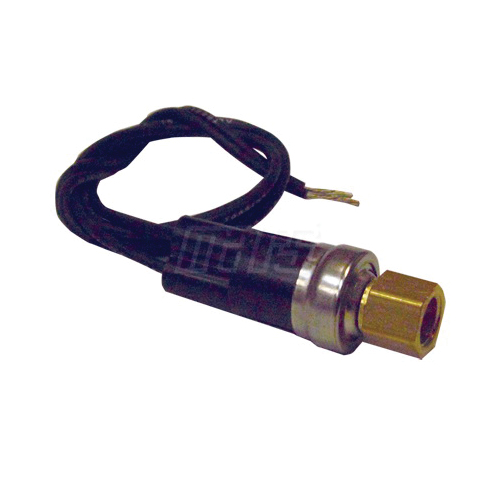

Klixon® by Mars® Pressure Switch, Series: 4 Series, SPST Switch, Close On Rise Switch Action, 95 psi Close, 50 psi Open, 1/4 in Female Flare with Deflator Connection, Direct Mounting, Import
- Tamper proof construction
- Direct mounting on tubing
- Low pressure controls
- Contacts rated at 6 amps, 24 to 240 VAC
- Range PSI: +/-5
- Lead length: 18 in blue XLP wire, 1/2 in stripped ends
- Auto reset
