| Control Voltage | : | 24 V |
| Domestic/Import | : | Import |
| Number of Switches | : | 4 |
| Switch Off Time | : | 45 to 75 s |
| Switch On Time | : | 1 to 24 s |
A new simple method for selecting and replacing electric heat sequencers with only five basic controls. Replace sequencers in almost any existing system.

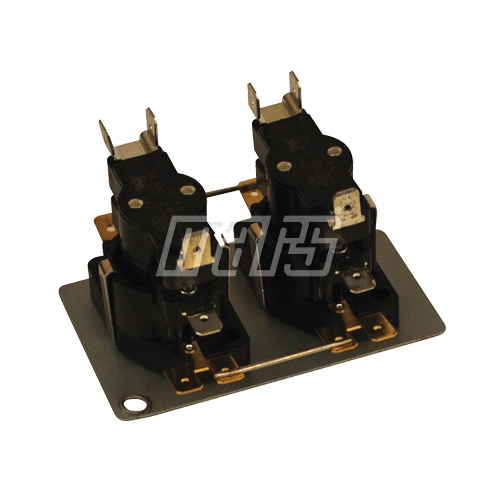

Klixon® by Mars® Electric Heat Sequencer, 4 Switches, 1 to 24 s Switch On, 45 to 75 s Switch Off, 24 V, Import
- Two DPST switch
- Solid state dependability
- Replaces Honeywell and White-Rodgers
- Ambient rated from 20 to 160 deg F
- Used on both separate blower and element and combination blower and element systems
- Standard double quick-connect terminals for combination fan and element systems
- Full-load-rated auxiliary contacts
- 7.2 KW combination fan and element rated contacts (23A resistive, 7A motor load)
- Non-positional
- Voltage and ambient self compensating positive temperature coefficient (PTC) heater elements
- Individually packaged with wiring diagrams for up to seven element furnaces
- 25 A Full Load at 240 VAC
- 30 to 70 sec auxiliary switch on time
- 1 to 40 sec auxiliary switch off time
