JPL® IFM20R6

JPL® MHP25R6B20 MHP-25 Insulated Class 1 Flexible Air Duct, 20 in ID x 25 ft L, 5000 fpm Flow Rate, R6 Insulation, Metalized Polyester

Manufacturer: JP Lamborn
Brand Name: JPL®
Part#: IFM20R6
MPN: MHP25R6B20
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Flow Rate      :      5000 fpm
Inside Diameter      :      20 in
Insulation Value      :      R6
Length      :      25 ft
Material      :      Metalized Polyester
Pressure Rating      :      -1/2 to 4 in-WG
Series      :      MHP-25
Temperature Rating      :      0 to 200 deg F
Type      :      Insulated Class 1
Vapor Transmission      :      0.01 perm

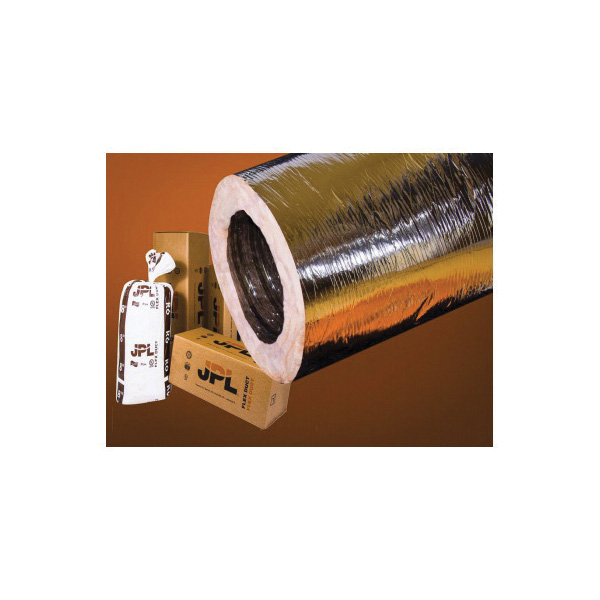

MHP-25 (25 ft length) flexible duct is constructed with a spring steel wire helix, encapsulated in a 2-ply, air-tight inner core. Fiberglass insulation choices of R4.2, R6 & R8 encompass the core and a unique metalized, reinforced vapor barrier surrounds the entire duct.

JPL® Flexible Air Duct, Insulated Class 1, Series: MHP-25, 20 in ID, 25 ft Length, 5000 fpm Flow Rate, R6 Insulation Value, 0.01 perm Vapor Transmission, -1/2 to 4 in-WG Pressure, 0 to 200 deg F, Metalized Polyester

  • To meet thermal properties, packaging complies with recommended 12:1 or less compression ratio
  • Raw ended treatments
  • Air-tight 2-ply black pigmented polyester inner core
  • Flexible air ducts are for indoor applications and should not be exposed to direct ultraviolet light
  • Metalized polyester barrier
