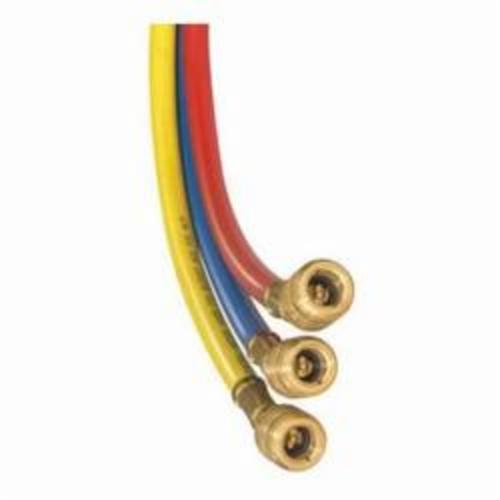

JB Industries CCLS-72

JB Industries Kobra® CCLS-72 3-Piece High Pressure Manifold Hose Set With Secure Seal Fitting, 1/4 in, 72 in L, 800 psi, Kevlar®, Domestic

Manufacturer: JB Industries
Brand Name: JB Industries
Part#: CCLS-72
MPN: CCLS-72
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      Red/Blue/Yellow
Domestic/Import      :      Domestic
Length      :      72 in
Material      :      Kevlar®
Nominal Size      :      1/4 in
Series      :      CLS
Type      :      3-Piece
Working Pressure      :      800 psi

CLS Series hoses feature a secure seal fitting that opens to full flow. The revolutionary patent-pending design on our internal structure significantly reduces blowouts, provides maximum flow and automatically traps refrigerant discharge in the hose. JB also uses a common crimp that grips the full circumference of the hose yielding a maximum hold and uniform seal that prevents leaks and bursts. Pressure rating 800 psi and 4,000 psi burst. These hoses are suitable for R-410A and can be used with all common refrigerants except ammonia. As always, Kobra® hoses are made in the USA.

JB Industries Kobra® High Pressure Manifold Hose Set, 3-Piece, Series: CLS, 1/4 in Nominal, 72 in Length, 800 psi Working, Kevlar®, Red/Blue/Yellow, Domestic

  • Gasket feature a hood with a straight edges that snaps into the straight edges of the barb and straight edges to straight edges force eliminate gasket blowouts
  • Depressor is barbed and locks into the gasket, meaning the outward force on the depressor pushes the gasket further into place, resulting in no blowouts
  • Kobra® high pressure hoses are made from Kevlar®, the same material that stops bullets in bullet-proof vests
  • Kevlar® makes our hoses incredibly strong and flexible, Kobra® hoses feature a nitrile cover which is better than neoprene because it is more resistant to oils, giving the hoses a longer life
  • 800 psi working, 4000 psi burst pressure
  • 5 to 1 safety factory (beat industry standard of 4 to 1)
  • Use rebuild kit 33112RK, P90022 replacement O-ring
  • Stainless steel thrust washer insures free rotation even under high pressure
  • Three points contacts on depressor
  • JB also uses a common crimp that grips the full circumference of the hoses yielding a maximum hold and uniform seals that prevents leaks and burst
  • Suitable for R-410A refrigerants
  • Low loss fitting adapter available
