Honeywell Home YTHX9421R5101WW

Honeywell Home Prestige® YTHX9421R5101WW/U 2-Wire IAQ Comfort Touchscreen System, Programmable Thermostat, 40 to 90 deg F Control, Import

Manufacturer: Resideo Technologies
Brand Name: Honeywell Home
Part#: YTHX9421R5101WW
MPN: YTHX9421R5101WW/U
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White
Control Range      :      40 to 90 deg F
Dimensions      :      4-1/2 in W x 7/8 in D x 3-1/2 in H
Display Type      :      8.06 sq-in Tri-Lingual
Domestic/Import      :      Import
Fan Switching      :      Auto/On/Circulate/Follow Schedule
Humidity Range      :      5 to 90% Non-Condensing
Number of Stages      :      6
Power Source      :      Hardwired
Stages Cool      :      2 Heat Pump, 2 Conventional
Stages Heat      :      4 Heat Pump, 3 Conventional
System Switching      :      Heat/Cool/Auto/Off
Terminal Designations      :      R, RC, RH, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D
Thermostat Type      :      Programmable
Type      :      2-Wire
Voltage Rating      :      18 to 30 VAC

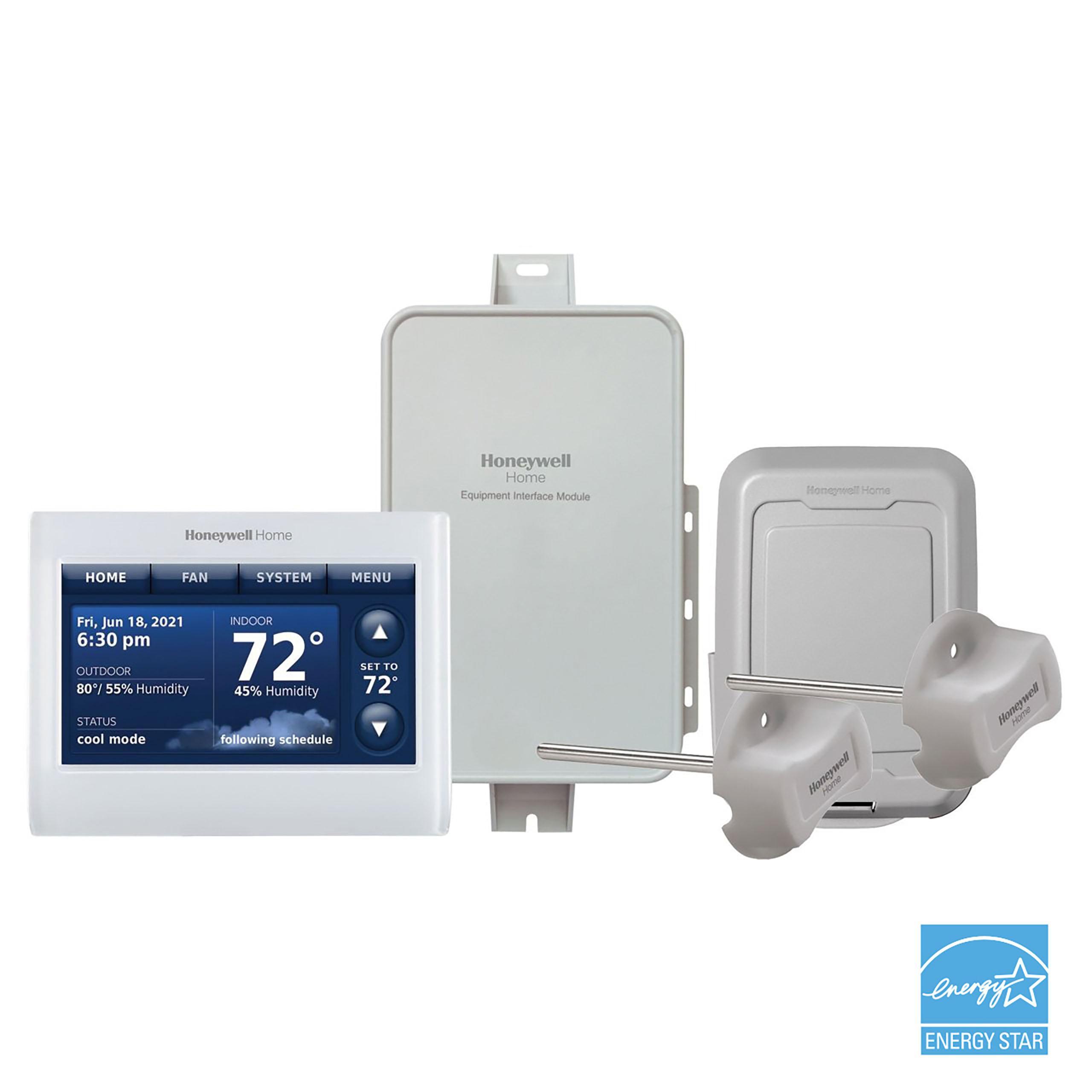

The Prestige® IAQ Thermostat kit offers temperature and humidity control for residential or light commercial use, and comes with an Equipment Interface Module, 2 duct sensors and one outdoor sensor. This WiFi thermostat features an HD color touchscreen

Honeywell Home Prestige® IAQ Comfort Touchscreen System, 2-Wire, Programmable Thermostat, 40 to 90 deg F Control, R, RC, RH, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D Terminal Designations, Heat/Cool/Auto/Off System Switching, Auto/On/Circulate/Follow Schedule Fan Switching, 6 Stage, 4 Heat Pump, 3 Conventional Stages Heat, 2 Heat Pump, 2 Conventional Stages Cool, 5 to 90% Non-Condensing Humidity, 8.06 sq-in Tri-Lingual Display, 18 to 30 VAC, Hardwired Power Source, White, 4-1/2 in W x 7/8 in D x 3-1/2 in H, Import

  • Equipment Interface Module has 4 assignable inputs to be used with wired outdoor, indoor, discharge or occupancy sensors
  • Adaptive Intelligent Recovery Over time, the Prestige thermostat learns how long it takes to reach the desired temperature and activates the system earlier
  • Dealer information on-screen
  • Keypad lockout to prevent unauthorized changes
  • Displays on/off status of all equipment controlled by the thermostat
  • RedLINK wireless communication
  • English, French or Spanish display options
  • Performance logs maintain heating and cooling history
