Honeywell Home YTHM1004R3000

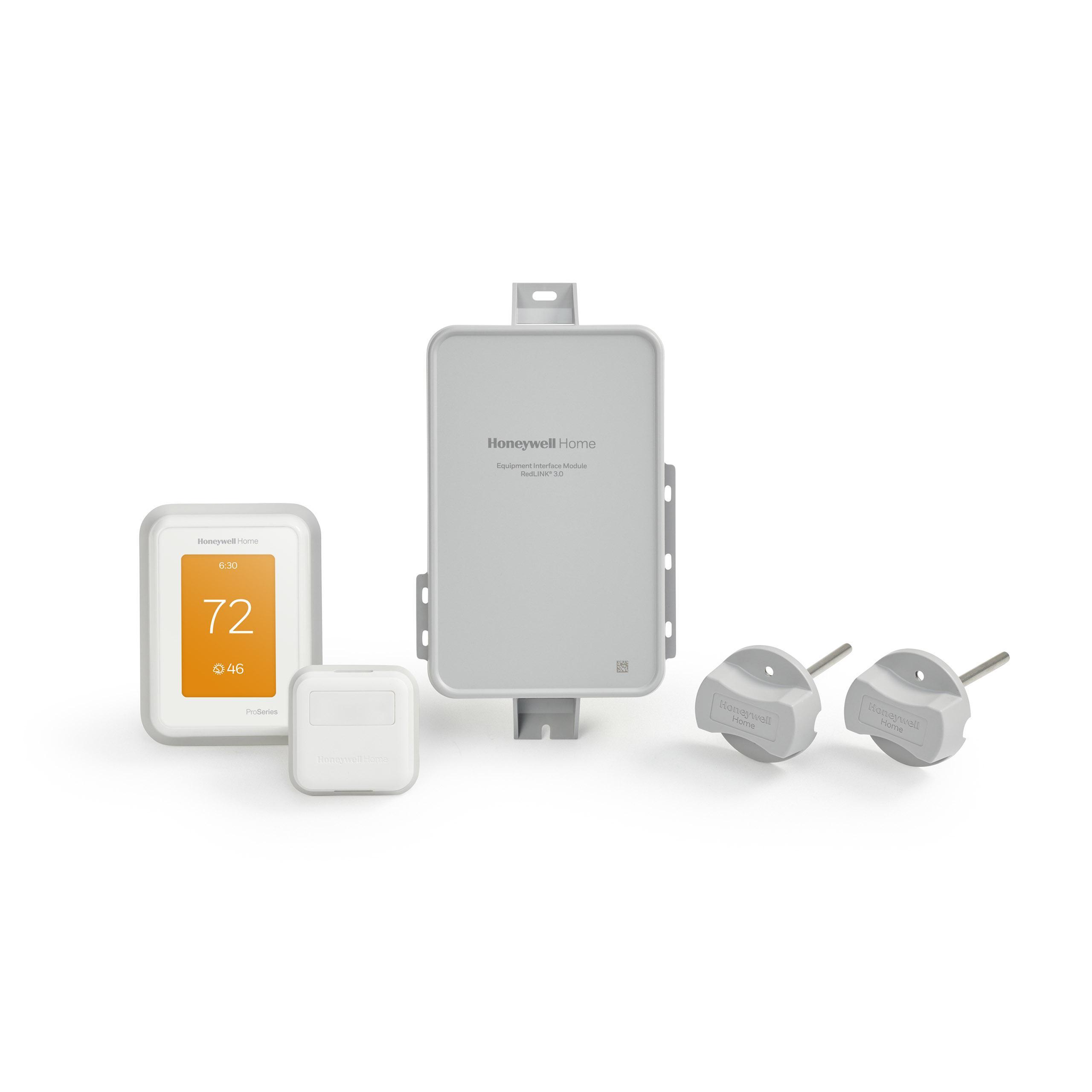

Honeywell Home YTHM1004R3000/U Smart Thermostat with EIM, Programmable Thermostat, 37 to 102 deg F Control, Relay Switch, 40 to 90 deg F Heating/50 to 99 deg F Cooling per Day, 7 or 5-1-1 or 5-2 Days Programs per Week

Manufacturer: Resideo Technologies
Brand Name: Honeywell Home
Part#: YTHM1004R3000
MPN: YTHM1004R3000/U
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White/Gray
Control Range      :      37 to 102 deg F
Dimensions      :      4.9 in H x 3.7 in W x 0.93 in D
Display Type      :      Touchscreen
Domestic/Import      :      Import
Fan Switching      :      Auto/On/Circulate
Full Load Current      :      0.02 to 0.05 A
Humidity Range      :      5 to 90 %
Mounting Type      :      UWP
Power Source      :      Hardwired
Programs per Week      :      7 or 5-1-1 or 5-2 Days
Stages Cool      :      2 Heat Pump/2 Conventional
Stages Heat      :      3 Heat Pump/2 Conventional
Switch Type      :      Relay
System Switching      :      Heat/Cool/Auto/Off/Em Heat
Temperature Settings per Day      :      40 to 90 deg F Heating/50 to 99 deg F Cooling
Terminal Designations      :      EIM (R/Rh/Rc/C/L/O/B/W1/W2-AUX 1/W3-AUX 2/Y1/Y2/G/U1/U1/U2/U2/U3/U3/S1/S1/S2/S2/S3/S3/S4/S4)
Thermostat Type      :      Programmable
Voltage Rating      :      20 to 30 VAC

The T10+ Pro Smart with RedLINK® Room Sensor allows homeowners to prioritize comfort in the rooms that matter most, using time-based scheduling, motion detection or geofencing. Priority settings optimize comfort by using sensors in the areas of the hou

Honeywell Home, YTHM1004R3000/U, Smart Thermostat with EIM, Programmable Thermostat, 37 to 102 deg F Control, Relay Switch, EIM (R/Rh/Rc/C/L/O/B/W1/W2-AUX 1/W3-AUX 2/Y1/Y2/G/U1/U1/U2/U2/U3/U3/S1/S1/S2/S2/S3/S3/S4/S4) Terminal Designations, Heat/Cool/Auto/Off/Em Heat System Switching, Auto/On/Circulate Fan Switching, 3 Heat Pump/2 Conventional Stages Heat, 2 Heat Pump/2 Conventional Stages Cool, 40 to 90 deg F Heating/50 to 99 deg F Cooling Temperature Settings per Day, 7 or 5-1-1 or 5-2 Days Programs per Week, 5 to 90 % Humidity, Touchscreen Display, 20 to 30 VAC, 0.02 to 0.05 A Full Load, Hardwired Power Source, UWP Mounting, White/Gray, 4.9 in H x 3.7 in W x 0.93 in D Dimensions, Import

  • RedLINK 3.0 Sensor Compatible
  • Time-based or Smart scheduling
  • Configurable daytime and nighttime backlight settings
  • T10+ models can be used with slab sensor
  • Controls Humidification, Dehumidification, or Ventilation (all three with T10+ and EIM)
  • Demand Response Program availability
  • On-screen menus with familiar installer setup (ISU) steps
  • Optional geofencing
  • Flexible programming (7, 5-2, 5-1-1, 1, Off)
  • Connects with our app
