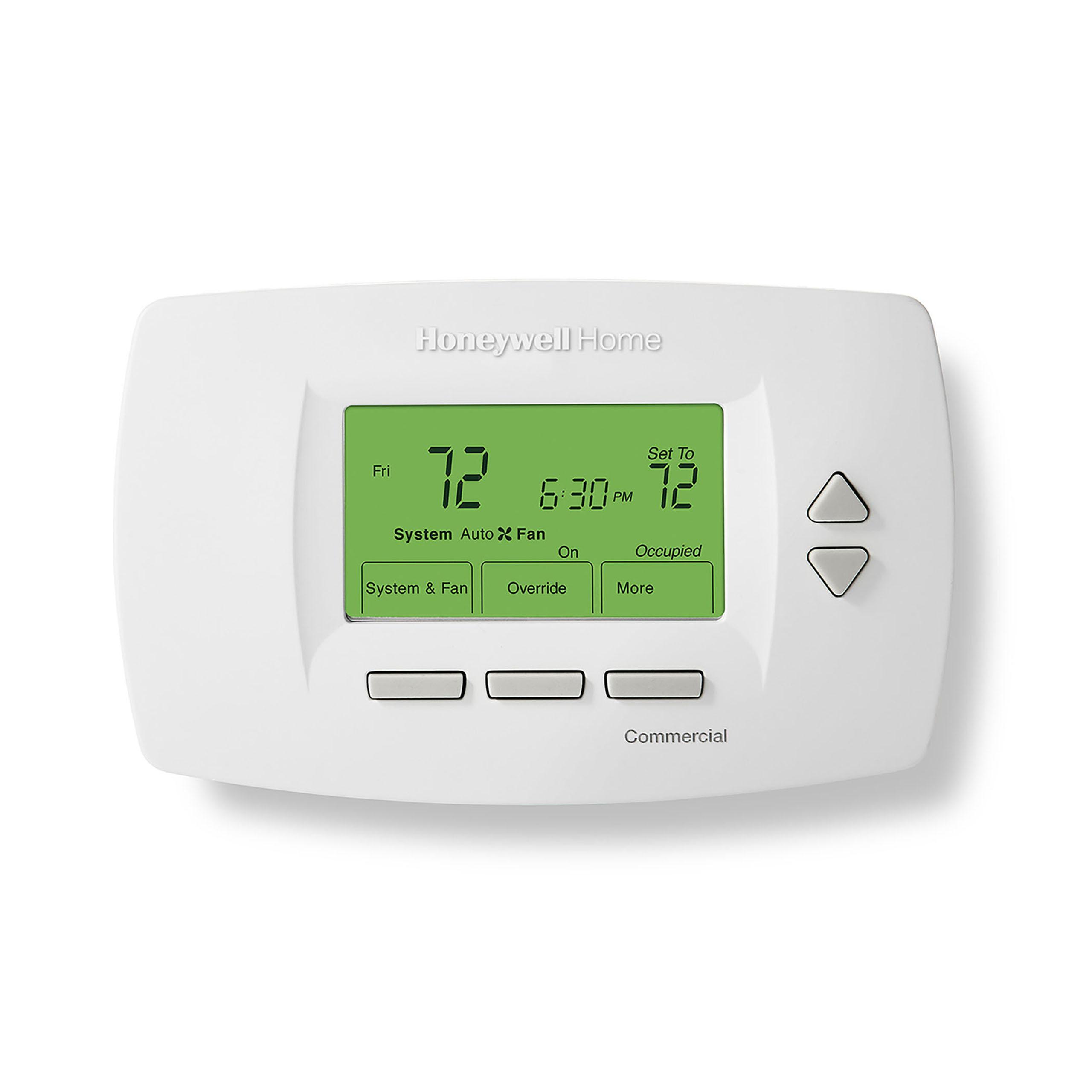

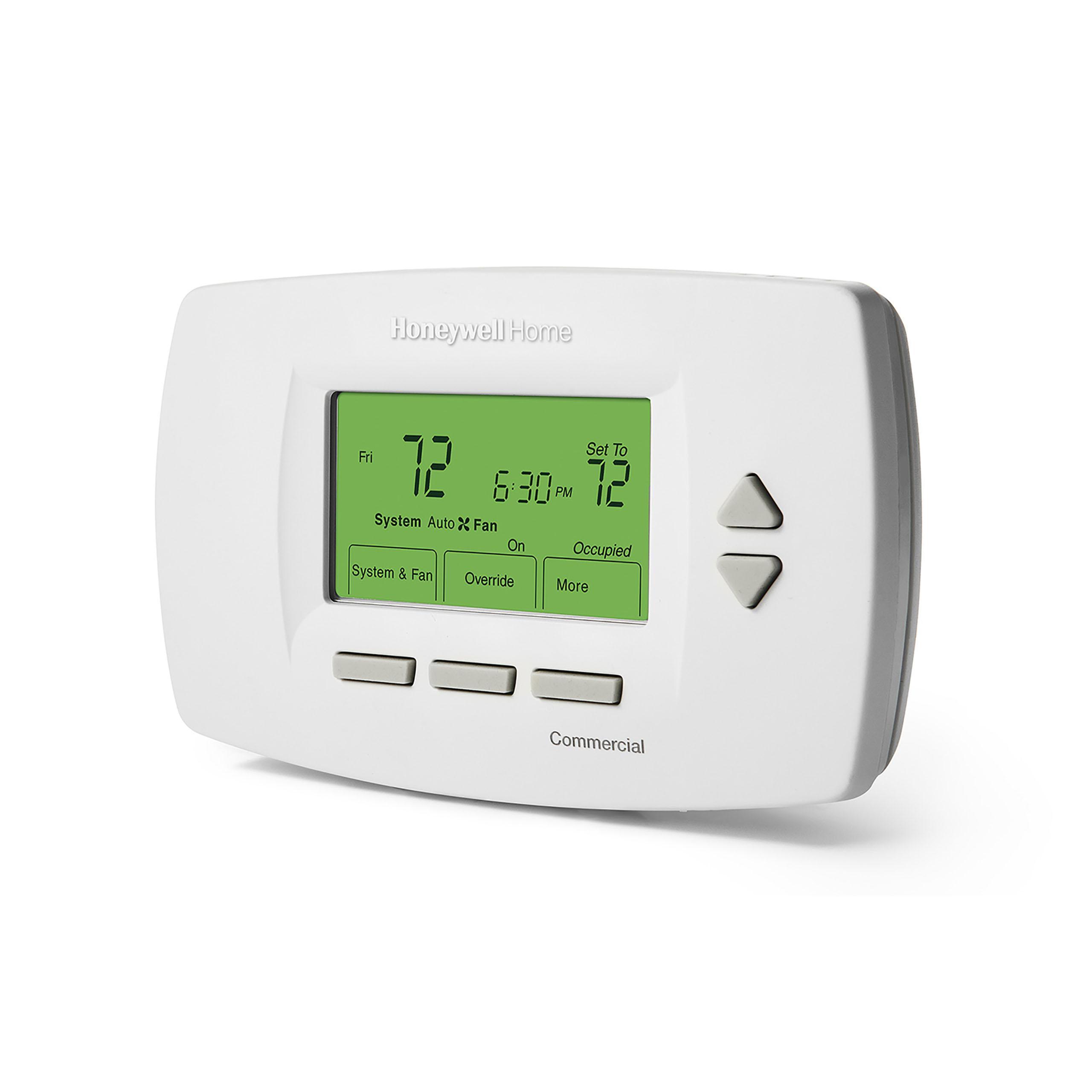

Honeywell Home TB7220U1012
Honeywell Home CommercialPRO® TB7220U1012/U 7000 Thermostat, Programmable Thermostat, 40 to 90 deg F Control, R, RC, W (O/B), W2 (W1), Y, Y2, A, G, C, S1, S2 Terminal, Import
| Color | : | Premier White® |
| Control Range | : | 40 to 90 deg F |
| Dimensions | : | 6 in W x 1-3/8 in D x 3-3/4 in H |
| Domestic/Import | : | Import |
| Fan Switching | : | Auto/On |
| Humidity Range | : | 5 to 90% Non-Condensing |
| Number of Stages | : | 5 |
| Series | : | 7000 |
| Stages Cool | : | 2 Heat Pump, 2 Conventional |
| Stages Heat | : | 3 Heat Pump, 2 Conventional |
| System Switching | : | Heat/Cool/Auto/Off |
| Terminal Designations | : | R, RC, W (O/B), W2 (W1), Y, Y2, A, G, C, S1, S2 |
| Thermostat Type | : | Programmable |
| Voltage Rating | : | 24 VAC |
The COMMERCIALPRO® 7000 Programmable Thermostat is an effortless, seven-day programmable thermostat that provides universal system compatibility, precise comfort control and is easy-to-program. The TB7220 provides temperature control for gas, oil, electric and heat pumps for up to 2 heat, 2 cool systems.
Honeywell Home CommercialPRO® Thermostat, Series: 7000, Programmable Thermostat, 40 to 90 deg F Control, R, RC, W (O/B), W2 (W1), Y, Y2, A, G, C, S1, S2 Terminal Designations, Heat/Cool/Auto/Off System Switching, Auto/On Fan Switching, 5 Stage, 3 Heat Pump, 2 Conventional Stages Heat, 2 Heat Pump, 2 Conventional Stages Cool, 5 to 90% Non-Condensing Humidity, 24 VAC, Premier White®, 6 in W x 1-3/8 in D x 3-3/4 in H, Import
- Large, clear display with backlight shows the current and set temperature and time
- Ergonomic design
- Real-time clock keeps time during power failures and automatically updates to daylight saving
- Saving changes notification lets customers know when the schedule changes have been saved
- Holiday override function allows for overrides without changing programming
- Armchair programming allows customers to remove the thermostat from the wall for programming
