Glasfloss® ZPS24241295B

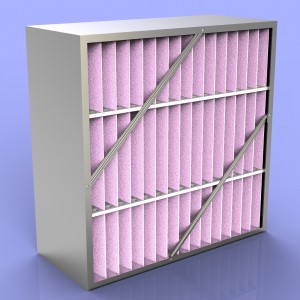

Glasfloss® ZPS242412-95-BO Z-Pak® High Efficiency Rigid Cell Filter Without Gasket, 24 in W x 12 in D x 24 in H, 14 to 15 MERV, 180 deg F, Domestic

Manufacturer: Glasfloss
Brand Name: Glasfloss®
Part#: ZPS24241295B
MPN: ZPS242412-95-BO
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Depth      :      12 in
Domestic/Import      :      Domestic
Efficiency      :      90 to 95%
Final Resistance      :      1 in WG
Flow Rate      :      500 fpm
Frame Type      :      Galvanized Steel Box
Height      :      24 in
Initial Resistance      :      0.55 in WG
MERV      :      14 to 15
Media Material      :      Synthetic
Overall Dimensions      :      23-3/8 in H x 23-3/8 in W x 11-1/2 in D
Series      :      Z-Pak®
Temperature Rating      :      180 deg F
Type      :      High Efficiency
Width      :      24 in

The Glasfloss Z-Pak Series frame shall be a rigid construction of 26 gauge galvanized steel. A heavy gauge, galvanized steel header is optional for the Z-Pak Series. The media shall be a high density synthetic fiber or a microfine glass fiber. The filter media pack shall be constructed by pleating a continuous sheet of media into uniform spaced pleats, which are separated by flame retardant, injection molded plastic media separators. A heavy-duty expanded metal reinforcement shall be laminated to the air exit side of the media by a thermo-setting adhesive to maintain continuity of the radial pleats. The expanded metal shall be galvanized to resist rust and corrosion. Metal vertical brackets shall be utilized to stabilize the media pack and prevent air bypass. The air entry and air exit side shall be fitted with two 26 gauge support struts. The pleated media ends are sealed to the top and bottom of the metal frame to prevent air bypass. Gasket material, 3/4 in width and 1/4 in thickness, is optional. Glasfloss Z-Pak series filters shall be rated to withstand temperatures up to 180 degrees Fahrenheit. Glasfloss Z-Pak filters shall be Classified under U.L. std. 900.

Glasfloss® Rigid Cell Filter, High Efficiency, Series: Z-Pak®, 24 in Width, 12 in Depth, 24 in Height, MERV: 14 to 15, 500 fpm, 180 deg F, Galvanized Steel Box, 90 to 95% Efficiency, 0.55 in WG Initial Resistance, 1 in WG Final Resistance, Synthetic Media, 23-3/8 in H x 23-3/8 in W x 11-1/2 in D, Domestic

  • Glasfloss Z-Pak air filter are designed for medium and high efficiency application and offers superior service life
  • The Z-Pak's total rigid construction makes it ideal for variable air volume system (VAV), where changes in air flow can have an adverse affect on non-rigid type filter
  • Z-Pak filter are available with fiberglass or synthetic media in four efficiency performance levels: MERV 9 (40-45 percent),MERV 11 (60-65 percent), MERV 13 (80-85 percent) and MERV 14 / 15 (90-95 percent)
  • The Z-Pak is available in a variety of filter face dimensions with two optional depth
  • Injection molded pleat separators
  • Header or box style
  • High dust holding capacity extends time between filter changes
  • Ideal for VAV system
  • Media sealants which seals the corners
  • Galvanized box, support struts
  • Support struts
  • 0.55 in-WG box, 0.65 in-WG header
