Glasfloss® ZPS12241295H

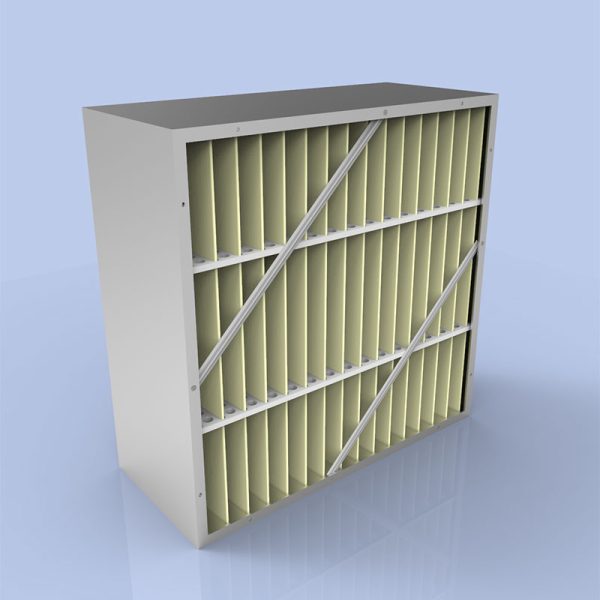

Glasfloss® ZPS12241295HO Z-PAK S Filter, 24 in H 12 in W 12 in D, 14 MERV, 180 deg F

Manufacturer: Glasfloss
Brand Name: Glasfloss®
Part#: ZPS12241295H
MPN: ZPS12241295HO
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Depth      :      12 in
Final Resistance      :      1.5 in-WG
Flow Rate      :      500 fpm
Frame Type      :      Header
Height      :      24 in
Initial Resistance      :      0.35 in-WG
MERV      :      14
Media Material      :      Synthetic Fiber
Series      :      Z-PAK S
Temperature Rating      :      180 deg F
Width      :      12 in

Glasfloss®, ZPS12241295HO, Filter, Series: Z-PAK S, 12 in Width, 12 in Depth, 24 in Height, 14 MERV, 500 fpm Flow Rate, 180 deg F, Header Frame, 0.35 in-WG Initial Resistance, 1.5 in-WG Final Resistance, Synthetic Fiber Media

  • 26.25 Media Square Feet
  • 9 lb Weight
  • The Z-Pak's total rigid construction makes it ideal for variable air volume systems (VAV), where changes in air flow can have an adverse effect on non-rigid type filters.
  • Z-Pak filters are available with fiberglass or synthetic media in four efficiency performance levels: MERV 9 (40-45%), MERV 11 (60-65%), MERV 13 (80-85%) and MERV 14 (90-95%).
  • The Z-Pak is available in a variety of filter face dimensions with two optional depths.
  • The Glasfloss Z-Pak Series frame shall be a rigid construction of 26 gauge galvanized steel.
  • The media shall be a high density synthetic fiber or a microfine glass fiber.
  • The filter media pack shall be constructed by pleating a continuous sheet of media into uniform spaced pleats, which are separated by flame retardant, injection molded plastic media separators.
  • A heavy-duty expanded metal reinforcement shall be laminated to the air exit side of the media by a thermo-setting adhesive to maintain continuity of the radial pleats.
  • The expanded metal shall be galvanized to resist rust and corrosion.
  • Metal vertical brackets shall be utilized to stabilize the media pack and prevent air bypass.
  • The air entry and air exit side shall be fitted with two 26 gauge support struts.
  • The pleated media ends are sealed to the top and bottom of the metal frame to prevent air bypass.
  • Gasket material, 3/4 in width and 1/4 in thickness, is optional.
