| Depth | : | 1 in |
| Domestic/Import | : | Domestic |
| Efficiency | : | <20% |
| Filter Rating | : | 3 to 10 micron |
| Final Resistance | : | 1/2 in WG |
| Flow Rate | : | 300 fpm |
| Frame Material | : | Kraft Board |
| Height | : | 24 in |
| Initial Resistance | : | 0.09 in WG |
| MERV | : | 1 to 5 |
| Media Material | : | Fiberglass |
| Overall Dimensions | : | 23-5/8 in H x 19-5/8 in W x 3/4 in D |
| Series | : | GDS |
| Temperature Rating | : | 180 deg F |
| Width | : | 20 in |

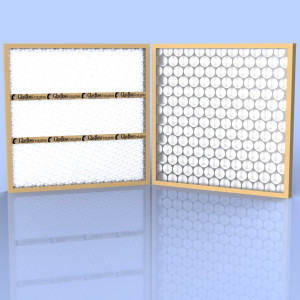

The Glasfloss GDS disposable panel filter features an innovative, reinforced, "double strut" construction for excellent durability and performance in commercial, industrial, and residential applications. The design provides 10 percent greater open media area than traditional metal grill filters and offers excellent dust holding capacity. In addition, the design allows for easier disposal, eliminates sharp edges for safer handling and reduces carton weight for lower shipping costs. The GDS disposable panel filter is available in 1 in and 2 in depths in many standard sizes.
Glasfloss® Disposable Panel Filter, Series: GDS, 20 in Width, 1 in Depth, 24 in Height, MERV: 1 to 5, 300 fpm, 180 deg F, Kraft Board Frame, 3 to 10 micron, <20% Efficiency, 0.09 in WG Initial Resistance, 1/2 in WG Final Resistance, Fiberglass Media, 23-5/8 in H x 19-5/8 in W x 3/4 in D, Domestic
- Progressively dense heavy duty media
- Heavy duty one piece box frame construction
- Thermally bonded
- All corners shall be closed and sealed
- The fiberglass filter media shall be coated with a non-toxic, non-flammable, odor free adhesive
- Craftboard frame, double reinforcement struts, glue beads
