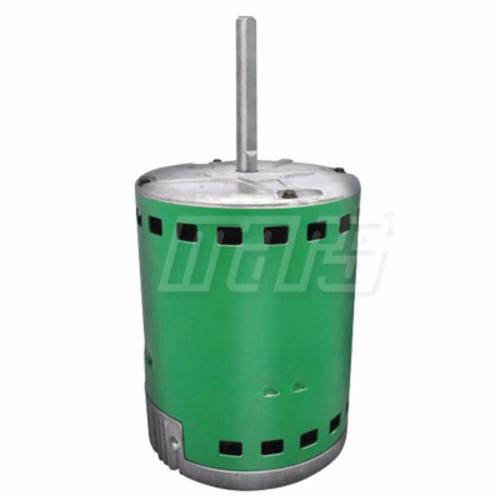

Genteq® by Mars® M06010
Genteq® by Mars® Evergreen® IM 06010 Electronic Commutated Motor, Open Enclosure, 1 hp, 115/230 VAC, 50/60 Hz, 1 ph, 48 Frame, 1070 rpm Speed, Horizontal Mount
| Application Type | : | Air Conditioner Motors |
| Bearing Type | : | Ball |
| Enclosure Type | : | Open |
| Frame | : | 48 |
| Frequency Rating | : | 50/60 Hz |
| Horsepower | : | 1 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Horizontal |
| Number of Speeds | : | 5 |
| Phase | : | 1 |
| Rotation | : | CW/CCW |
| Shaft Size | : | 0.5 in Dia x 9.87 in L |
| Special Features | : | ECM Motors, Synchronous Permanent Magnet AC Motors |
| Speed | : | 1070 rpm |
| Voltage Rating | : | 115/230 VAC |
Evergreen IM is the world's first high-efficiency ECM replacement motor that is designed to replace factory PSC blower motors in HVAC systems. Built from the same trusted, field-proven ECM technology that is found in millions of OEM systems nationwide, Evergreen uses up to 25% fewer watts in operating mode and up to 74% fewer Watts than a PSC motor in constant fan. Evergreen's ECM controls combine thermostat commands with an advanced permanent magnet design to run more efficiently and quietly while offering better airflow control than a PSC. The Evergreen IM is a great replacement for any PSC air-handler motor, adding up to 1 SEER point to an existing system. The motor's airflow benefits are especially important to homeowners who run (or would like to run) in constant fan mode for better comfort, improved IAQ products or improved zoning airflow.
Genteq® by Mars® Evergreen® IM Electronic Commutated Motor, Air Conditioner Motors Application, ECM Motors, Synchronous Permanent Magnet AC Motors Special Features, 1 hp, 115/230 VAC, 50/60 Hz Frequency, 1 ph, 1070 rpm Speed, 5 Speed, Open Enclosure, 48 Frame, 0.5 in Dia x 9.87 in L Shaft, CW/CCW Rotation, Ball Bearing, Horizontal Mounting, Insulation Class: Class B
- Two motors cover all applications
- Multi-volt 115/230 and reversible rotation
- Integrated with HVAC system controls/operation
- Four speed selections for heating and cooling
- Optimized constant fan speed
- Reduce truck stock, no capacitors to change out or stock
- Residential split and packaged systems
- Capacitor not included
