Genteq® by Mars® M03467

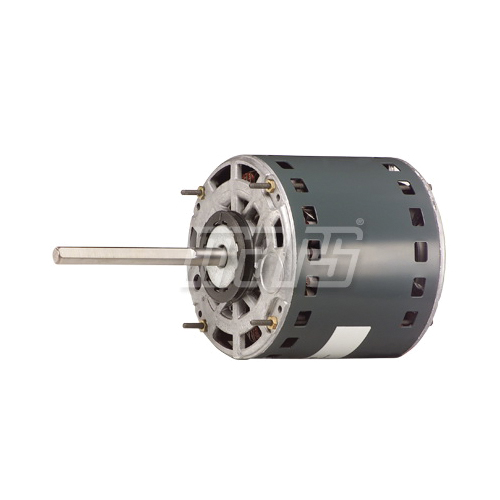

Genteq® by Mars® SOS™ 03467 Direct Drive Blower Motor, Open Enclosure, 3/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, All Angle Mount
Manufacturer: Mars
Brand Name: Genteq® by Mars®
Part#: M03467
MPN: 03467
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 4.1 A Full Load |
| Application Type | : | Fan & Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | Open |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 3/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | All Angle |
| Number of Speeds | : | 4 |
| Phase | : | 1 |
| Rotation | : | CW/CCW |
| Shaft Size | : | 0.5 in Dia x 10.44 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230 VAC |
Mars® SOS™ multi-horsepower direct drive blower motors are ideal for truck stock. Four models cover both 115 volt and 208-230 volt applications from 1/6 through 3/4 HP. All SOS™ motors feature easy mounting in Rheem applications.
Genteq® by Mars® SOS™ Direct Drive Blower Motor, Fan & Blower Motors Application, 3/4 hp, 208 to 230 VAC, 4.1 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 4 Speed, Open Enclosure, 48 Frame, 0.5 in Dia x 10.44 in L Shaft, CW/CCW Rotation, Ball Bearing, All Angle Mounting, 40 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
- Extended mounting studs
- 2-1/2 in resilient ring
- 6 poles
- Capacitor requirement noted on motor label
- Thermal overload protection
- Multi-rated hp: 3/4 to 1/5 hp
- Capacitor not included
- 20 uF at 370 VAC capacitor required
