Genteq® 6505VUI

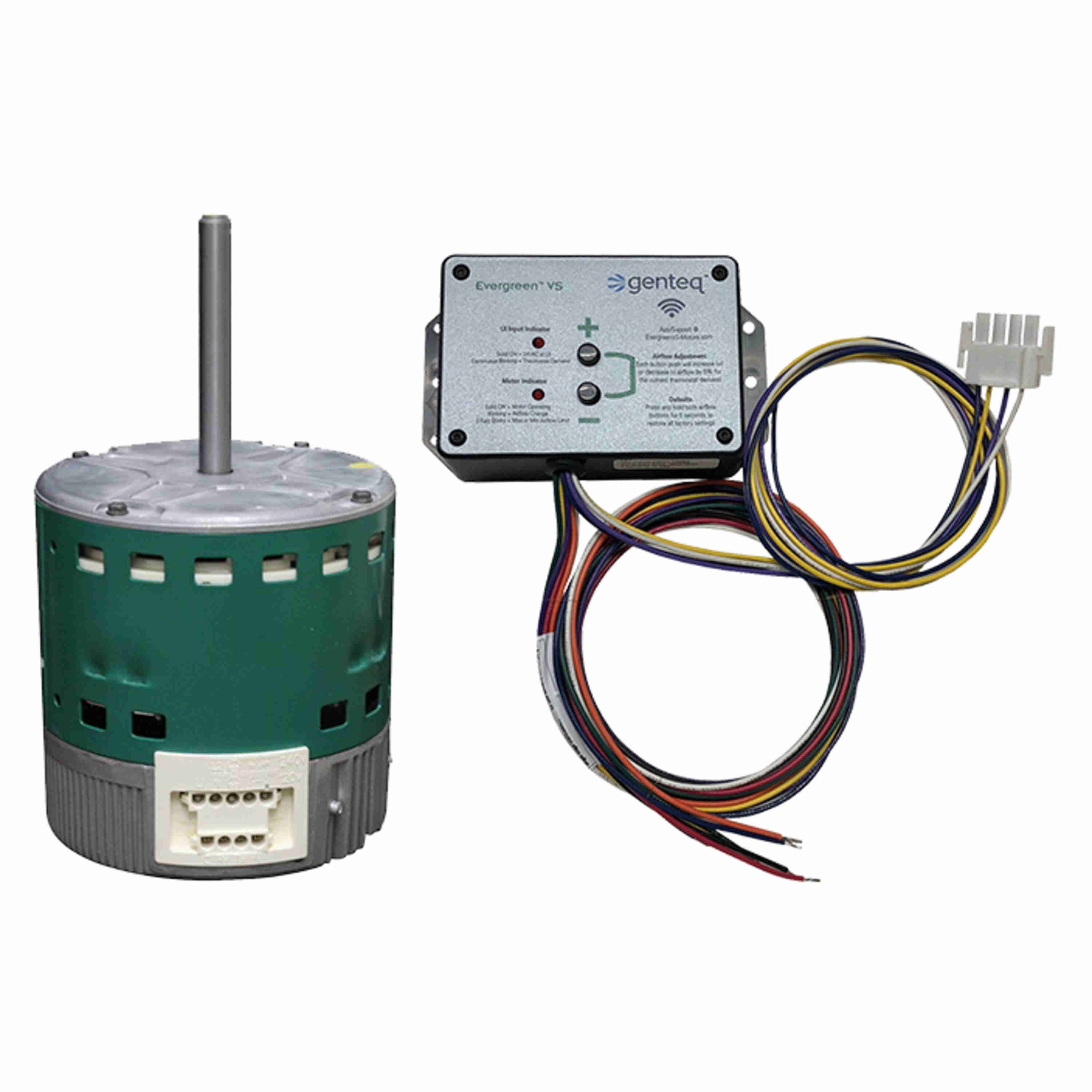

Genteq® 6505VUI 12-Pole Fan and Blower Motor, OAO Enclosure, 1/2 hp, 120 to 240 V, 60 Hz, 1 Phase, 48 Frame, 1050 rpm Speed, Round Mounting

Manufacturer: Regal Rexnord
Brand Name: Genteq®
Part#: 6505VUI
MPN: 6505VUI
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Add / Remove CPN
Amperage Rating      :      7.7/4.3 A
Bearing Type      :      Ball
Enclosure Type      :      OAO
Frame      :      48
Frequency Rating      :      60 Hz
Horsepower      :      1/2 hp
Insulation Class      :      Class B
Mounting Type      :      Round
Number of Speeds      :      1
Phase      :      1
Rotation      :      CCW/CW
Service Factor      :      1
Shaft Size      :      0.500 in
Special Features      :      12-Pole
Speed      :      1050 rpm
Temperature Rating      :      40 deg C
Type      :      12-Pole
Voltage Rating      :      120 to 240 V

Genteq®, 6505VUI, Fan and Blower Motor, 12-Pole, 12-Pole Special Features, 1/2 hp, 120 to 240 V, 7.7/4.3 A, 60 Hz Frequency, 1 ph, 1050 rpm Speed, 1 Speed, OAO Enclosure, 48 Frame, 0.500 in Shaft, CCW/CW Rotation, 1 Service Factor, Round Mounting, 40 deg C, Insulation Class: Class B

  • Electronically Commutated (ECM)
  • 1/2 in Diameter Shaft with flat Leads
  • Sealed bearings shut out contaminants that lead to bearing failure
  • Stainless steel output shaft seals protect against external contaminants
  • Cast, white epoxy conduit boxes house electrical wiring
  • Operational at 208-230/460 V at 60HZ
