| Amperage Rating | : | 12.2/9 in |
| Application Type | : | Fan/Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 12.45 in L |
| Enclosure Type | : | OPAO |
| Frame | : | 48 |
| Frequency Rating | : | 60, 50 Hz |
| Horsepower | : | 1 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Round |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Counterclockwise/Clockwise |
| Service Factor | : | 1 |
| Shaft Size | : | 0.5 in |
| Special Features | : | 0.75 kW Output, 10 Pole, Horizontal Motor Orientation, Flat Shaft, 4.07 in Frame Length, 4.92 in Shaft Extension, Rolled Steel Frame Material |
| Speed | : | 1050 rpm |
| Temperature Rating | : | 40 deg C |
| Type | : | Continuous Air Over Duty |
| Voltage Rating | : | 115 to 208/230 V |

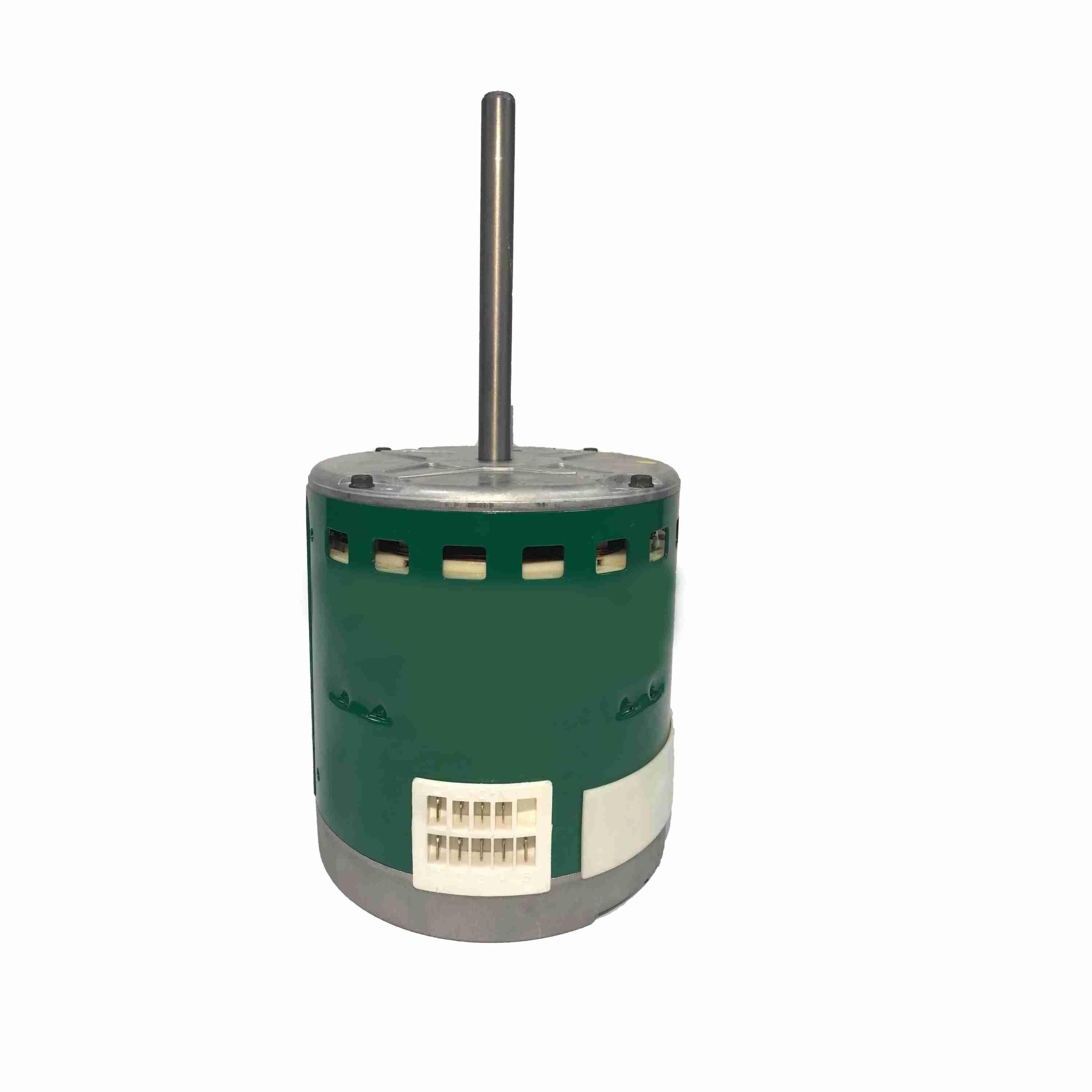

Genteq®, 6210X, Motor, Fan/Blower Motors Application, 1 hp, 115/208, 230 V, 12.2, 9 in, 60, 50 Hz Frequency, 1 pH ph, 1050 rpm Speed, 1 Speed, OPAO Enclosure, 48 Frame, 0.5 in Shaft, Counterclockwise/Clockwise Rotation, 1 Service Factor, Round Mounting, 40 deg C, Insulation Class: Class B
- 5.6 in diameter - 48 frame, Electronically commutated and Electronically protected
- Up to five constant torque settings controlled by 24 VAC inputs
- Fully variable (PWM compatible) from 600 to 1100 RPM
- Ball Bearing
- 42 inch Leads
- Belly Band Mount
- Meets T3B temperature code with a maximum surface temperature of 329 deg F
- Permanently lubricated, sealed bearings extend the lifetime of the motor
- 140 frame motor and below include explosion proof conduit box, shipped loose
- Evergreen EM - Dual Voltage Constant Torque ECM Replacement Blower Motor
- Pre-Programmed at the factor Ready to use out of the box Increase first time completion Rotation sensing technology
- Shaft, Single, 1/2 in diameter, 5 in length, 4.5 in single Flat Leads
- Pre-Programmed at the factor Ready to use out of the box Increase first time completion Rotation sensing technology
