| Amperage Rating | : | 5 A |
| Body Material | : | Aluminum |
| Displacement | : | 6 cfm |
| Domestic/Import | : | Import |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Oil Capacity | : | 8 oz |
| Overall Height | : | 16 in |
| Overall Length | : | 7.9 in |
| Overall Width | : | 11.7 in |
| Temperature Rating | : | 30 to 122 deg F |
| Voltage Rating | : | 120 VAC |

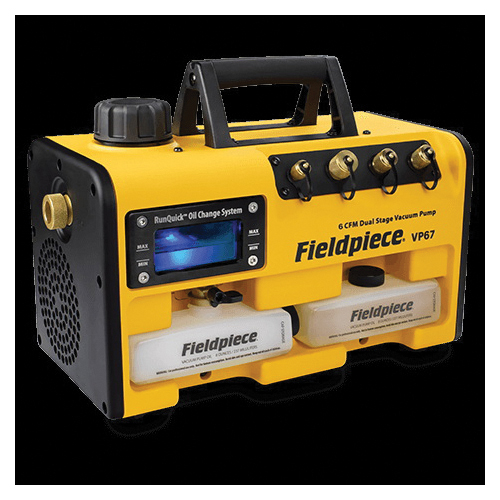

Performing a proper system evacuation prior to charging directly increases the expected life and efficiency of the system. Fieldpiece Vacuum Pumps provide a new view at system evacuation. Good oil is the lifeblood of every evacuation. You need to know the condition of the oil. You need to change the oil easily with no mess. Clearly view the oil condition through the huge oil tank window. The oil backlight helps to see the condition of the oil and if the fill level is correct. With the RunQuick® oil change system, you can replace the oil in under 20 s without losing vacuum, even while the pump is running. The extra wide base helps prevent tipping and spilling oil. Four inline ports in three different sizes give you tidy hose routing and hose options. Place the power cord on the handle for tangle-free storage. Carry the machine to and from the job site easily and well protected.
Fieldpiece Vacuum Pump, 6 cfm Displacement, 1/2 hp, 120 VAC, 5 A, 60 Hz Frequency, 8 oz Oil, 7.9 in Overall Length, 11.7 in Overall Width, 16 in Overall Height, Aluminum Body, 30 to 122 deg F, Import
- RunQuick® oil change system offers on the fly oil change in seconds
- Backlit oil reservoir - allows you to view condition of oil and system
- Extra oil bottle storage
- (1) 1/4, (2) 3/8, (1) 1/2 in for easy hose connections
- Sturdy base stays upright
- 1346 cu-in small footprint
- Quarter-turn gas ballast with LED indicator
- Convenient, removable cord storage
- Appropriate plug based on country
