Fieldpiece SC620

Fieldpiece SC620 Clamp Meter, 500 Ohm to 50 MOhm, 500 Hz to 1 MHz, 1.2 in Jaw, Dual Backlit Display

Manufacturer: Fieldpiece Instruments
Brand Name: Fieldpiece
Part#: SC620
MPN: SC620
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
AC Current Accuracy      :      +/-2 %
Counts      :      5000
Dimensions      :      287.5 mm H x 79.5 mm W x 50 mm D
Display Type      :      Dual Backlit
Frequency Rating      :      500 Hz to 1 MHz
Jaw Capacity      :      1.2 in
Operating Temperature      :      32 to 122 deg F
Power Source      :      9V Alkaline Battery
Resistance      :      500 Ohm to 50 MOhm
Safety Rating      :      CATIII 600V, Class II and Pollution Degree 2
Voltage Accuracy      :      +/-1.2% VAC, +/-0.5% VDC

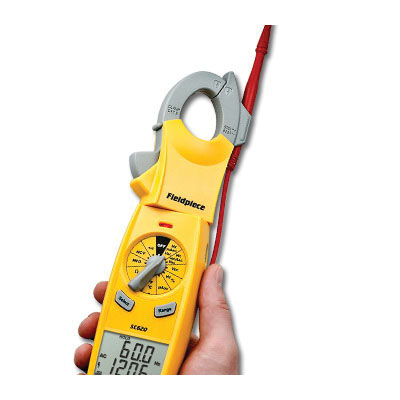

The SC620 swivel-head clamp meter is packed with all the electrical measurements HVACR professionals use everyday. It also includes a host of safety features like a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder with detachable leads, and alligator probe tips for easy one-handed testing. As far as ranges go, the SC620 clamp meter has temperature, capacitance, and microamps DC for flame diode tests. Its a rugged workhorse you can count on to get the job done easier, faster, and more safely.

Fieldpiece Clamp Meter, 500 Ohm to 50 MOhm Resistance, 500 Hz to 1 MHz Frequency, 1.2 in Jaw, 5000 Count, Dual Backlit Display, +/-2 % AC Current Accuracy, +/-1.2% VAC, +/-0.5% VDC Voltage Accuracy, Safety Rating: CATIII 600V, Class II and Pollution Degree 2, 9V Alkaline Battery Power Source, 32 to 122 deg F Operating, 287.5 mm H x 79.5 mm W x 50 mm D

  • The SC620 is fast reacting, easy-to-use, and rugged, with extended temperature tolerances that allow for testing in freezers and on hot rooftops, designed specifically for HVACR field service
  • The SC620 is a dedicated digital multimeter that offers specific features and benefits to help HVACR professionals do more, everyday - Volts AC/DC, swivel clamp, magnetic strap, dual display, temperature F/C, capacitance, duty cycle %, 400 amps AC, microamps DC, frequency via leads and clamp, non-contact voltage, 50 mega ohm with 0.1 resolution, continuity, diode test, hold, clamp probe holder, Low battery indicator, Hi-voltage Warning
  • Lead storage
  • Swivel-head clamp
  • Magnetic strap
  • Frequency via leads and clamp
  • 60 second duration with auto-off blue color backlight
  • Approx 30 minutes auto power off
  • 100 hr typical alkaline battery life
  • Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level
  • Up to 6562 ft altitude
  • 600 VDC or 600 VAC rms unless otherwise stated
  • Automatic zero
  • 3.3 times per second, nominal measurement rate
  • 500 micro A DC
  • 5% to 95% duty cycle
  • 5 micro F to 5 mF capacitance
  • 500 ohm continuity
  • 0.8 mA diode test
