| AC Response | : | 100 ms |
| Counts | : | 5000 |
| Dimensions | : | 258.3 mm H x 71.2 mm W x 42.7 mm D |
| Display Type | : | LCD |
| Electrical Ratings | : | 500 mA |
| Frequency Rating | : | 50 to 500 Hz |
| Operating Temperature | : | 32 to 122 deg F |
| Power Source | : | Alkaline Battery |
| Resistance | : | 50 MOhm |
| Safety Rating | : | 600 V |

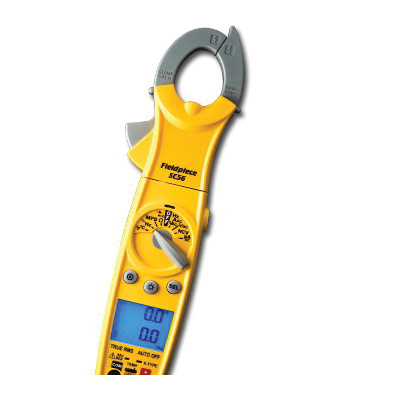

The Fieldpiece SC56 Swivel Head Clamp Meter is the best clamp meter on the market for the HVAC/R technician. The SC56 is packed with all the essential test parameters necessary to get the job done right. Plus, you can use all the Fieldpiece Accessory Heads via your test leads. In addition, the incredible 180 deg swivel head clamp enables you to view your results at any angle. Combine that with the unique wire grabbing claw and the LED flashlight in the SC56 clamp head, and you can easily isolate wires that are hard to reach and/or difficult to see.
Fieldpiece Swivel Head Clamp Meter, 500 mA Electrical Rating, 50 MOhm Resistance, 50 to 500 Hz Frequency, 5000 Count, LCD Display, 100 ms AC Response, Safety Rating: 600 V, Alkaline Battery Power Source, 32 to 122 deg F Operating, 258.3 mm H x 71.2 mm W x 42.7 mm D Dimensions
- 180 deg swivel head clamp to easily view your results at any angle
- Inrush current to easily diagnose an impending motor failure
- Clamp flashlight to illuminate wires in dark spaces
- Backlight dual display to display multiple information simultaneously even celsius and fahrenheit
- Rugged construction to withstand harsh conditions
- Automatic power-off (APO) to preserve your battery life when clamp isn't in use
- Non-contact voltage alert warning via audio and visual alarms
- Easy field calibration with convenient pot location to quickly calibrate k-type thermocouples
- True RMS to accurately measure non-sinusoidal wave forms
- Auto or manual ranging button to conveniently toggle between ranges
- Constant battery status so you don't run out of batteries in the middle of a job
