| Domestic/Import | : | Import |
| Length | : | 12 in |
| Material | : | Nickel Aluminum/Nickel Chromium |
| Type | : | K-type |

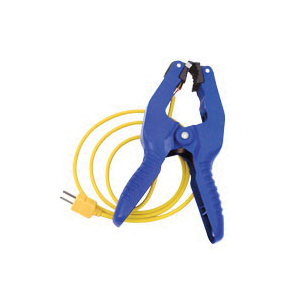

The ATC2, K-type, pipe clamp thermocouple is used to take temperatures of medium to large pipes or any other cylindrical surface within its 3/8 to 2 1/4 in jaw range. Using a pipe clamp thermocouple greatly facilitates taking superheat or sub cooling measurements. Use the ATC2 for most A/C units. The ATC2 can be used with any of our meters that measure temperature and any thermometer accepting a K-type thermocouple. Because the jaw is designed for HVAC/R, its clamping ability lets you measure temperatures of pipes that are fixed, at any angle, to walls or other surfaces. The sensor reaches correct temperature within a minute.
Fieldpiece Thermocouple, K-type, 12 in Length, Nickel Aluminum/Nickel Chromium, Import
- +/- 4 deg F (2 deg C), +/-1 deg F (0.5 deg C) after field calibration, 32 to 176 deg F (0 to 80 deg C) accuracy
- -50 to 180 deg F temperature
- Calibration and atmosphere will affect maximum useful temperature in applications
- The wire insulation is designed to withstand a maximum continuous use at 180 deg F probe insulation
- K-type thermocouple male mini plug
- Typical stabilization time: less than 60 sec
- Large pipe clamp
- For use with air conditioning
- 1/8 to 3/4 in in jaw range
