| Amperage Rating | : | 4/2.7/2 A Full Load |
| Application Type | : | Fan & Blower Motors |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5.6 in Dia |
| Enclosure Type | : | Open Ventilated |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class B |
| Number of Speeds | : | 3 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 6 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230 VAC |

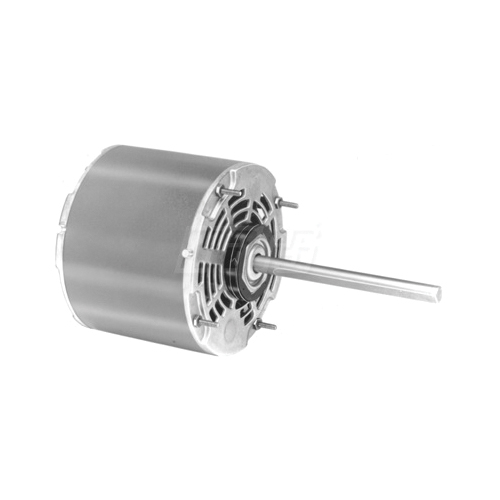

Mars® direct drive furnace blower motors are three speed standard efficiency models. All models are electrically reversible and include 2-1/4 in resilient rings for base mounting. These models have all angle sleeve bearings and have open air over enclosures.
Fasco® by Mars® Direct Drive Blower Motor, Application Type: Fan & Blower Motors, 1/2 hp, 208 to 230 VAC, 4/2.7/2 A Full Load, 60 Hz, 1 ph, 1075 rpm, 3 Speed, Open Ventilated, 1/2 in Dia x 6 in L Shaft, Reversible, Sleeve Bearing, 40 deg C, Insulation Class: Class B, 5.6 in Dia
- Rheem® mounting holes
- Multi-rated hp: 1/2 or 1/3 or 1/4 hp
- 1/2 in extended thru-bolt
- 2-1/4 in resilient rings
- Thermal overload protection
- Fan duty, continuous, air-over
- 7.5 uF at 370 VAC capacitor required
