| Amperage Rating | : | 1.1 to 0.6 A Full Load |
| Application Type | : | General Purpose AC Motors |
| Bearing Type | : | Sleeve |
| Dimensions | : | 3.3 in Dia |
| Enclosure Type | : | Open Ventilated |
| Frame | : | NEMA 3.3 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/12 hp |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Shaft Size | : | 5/16 in Dia x 3 in L |
| Speed | : | 1550 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/230 V AC |

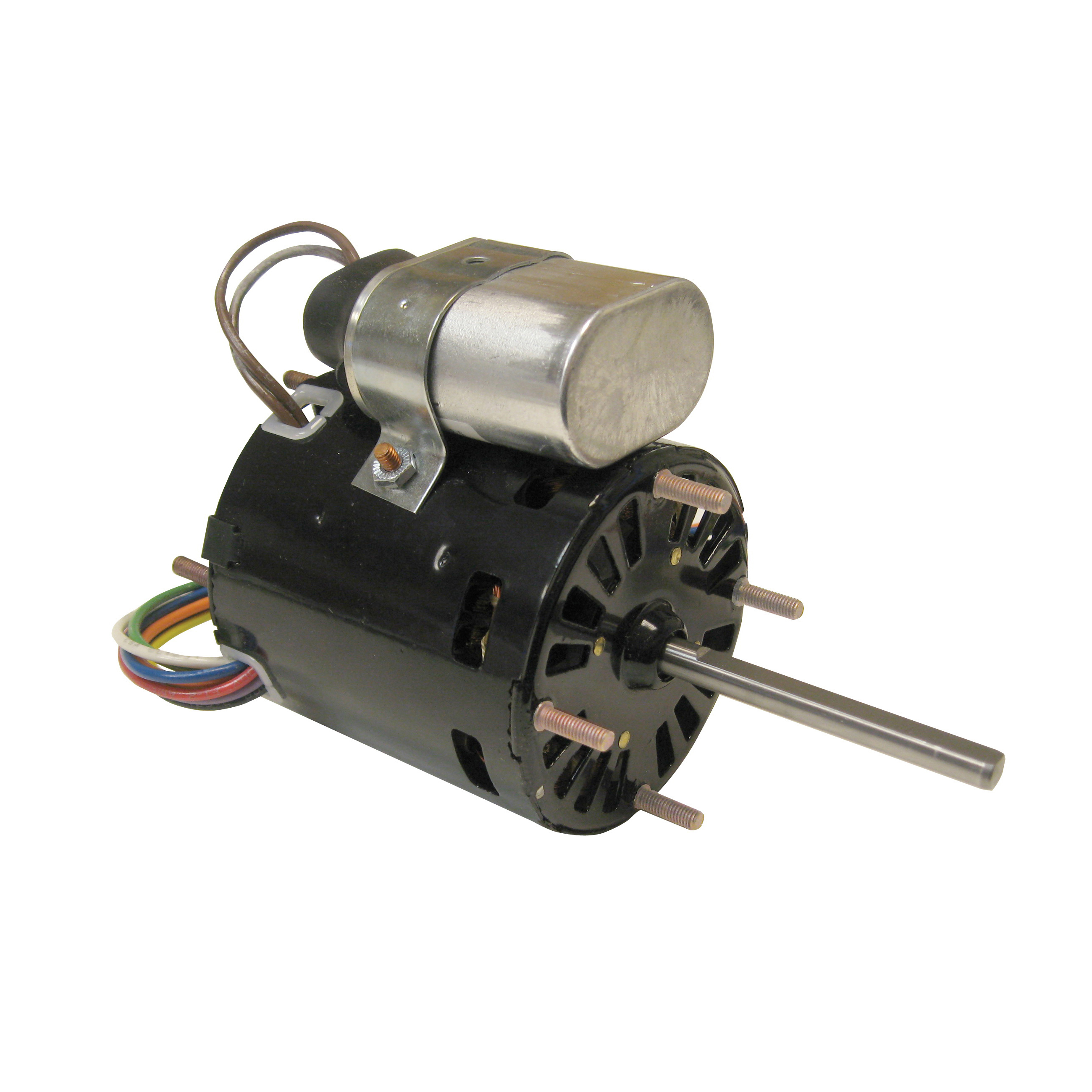

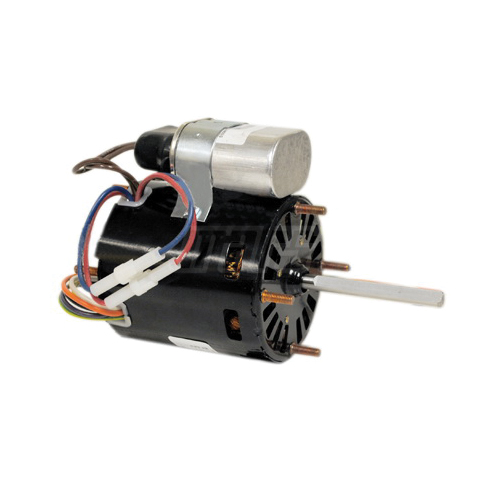

Fasco® by Mars® AC Motor, Application Type: General Purpose AC Motors, 1/12 hp, 115/230 V AC, 1.1 to 0.6 A Full Load, 60 Hz, 1 ph, 1550 rpm, 1 Speed, Open Ventilated, NEMA 3.3 Frame, 5/16 in Dia x 3 in L Shaft, Reversible, Sleeve Bearing, 40 deg C, 3.3 in Dia
- Shell turbo 68, low temp. oil (-40 deg F)
