| Amperage Rating | : | 0.73 A |
| Domestic/Import | : | Domestic |
| Duct Size | : | 4 in |
| Finish | : | Galvanized |
| Flow Rate | : | 173 cfm |
| Frequency Rating | : | 60 Hz |
| Housing Diameter | : | 9-3/4 in |
| Inlet Diameter | : | 3-7/8 in |
| Material | : | Steel |
| Motor Speed | : | 2559 rpm |
| Voltage Rating | : | 120 VAC |
Fantech® dryer booster fans have been specially designed to solve the problems caused by long duct runs on clothes dryers. According to dryer manufacturers and some local building codes, booster fans should be added in the dryer duct run when the length of the duct exceeds 24 ft with no bends, 20 ft with one bend or 15 ft with two bends. When the dryer is on, Fantech®'s patented pressure sensing switch automatically turns the booster fan on. The warm, moist air in the dryer duct is exhausted out of the building quickly. The dryer booster fan monitors the status of the dryer and will turn itself off when the dryer stops. Wall-mounted indicator panel with LED display lets homeowners know that the fan is functioning properly.

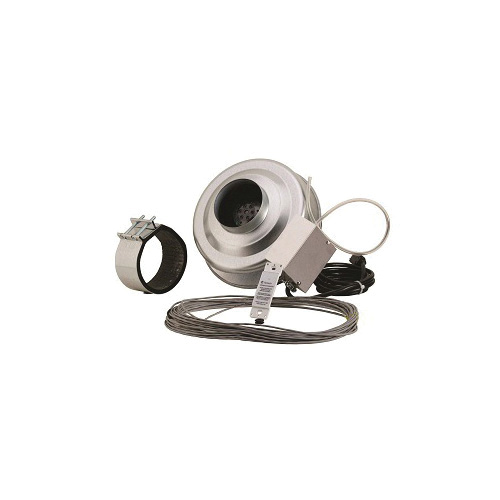

Fantech® Dryer Exhaust Fan, 120 VAC, 0.73 A, 60 Hz, 173 cfm, 4 in Duct, 3-7/8 in Inlet Dia, 9-3/4 in Housing Dia, 2559 rpm Motor, Steel, Galvanized, Domestic
- Backward inclined blades of the motorized impeller allow lint to pass through the fan
- The fan can be used to effectively boost dryer exhaust in duct runs up to 130 ft
- Wall-mounted indicator panel assures dryer operator of correct operation
- Insulation class: B
- IP44 motor enclosure
- Maximum temperature of transported air: 140 deg F
- 71.9 W input
- Single phase
