Duro Dyne® CTC34

Duro Dyne Insulation Fasteners provide a means of securing duct liner to the duct work. They are available in a variety of styles, which all feature a precision formed point to insure constant penetration of the duct liner. Once the duct liner is pierced, the fastener is in firm electrical contact with the duct work and the pinspotter current securely welds the fastener in place. Duro Dyne Insulation Fasteners are for use with MF, PBF, FG, RH, FGMH, and HSMH pinspotters.

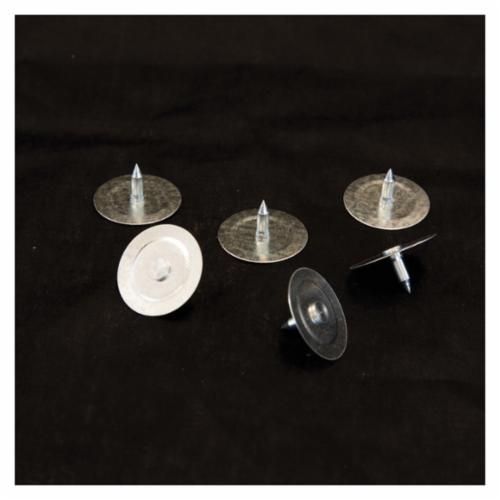

Duro Dyne® SLOPE PINS® Weld Pin, Sloped Washer, Series: CTC, 0.13 in Dia, 0.015 to 0.017 in Thickness

• Sloped washer (CTC) pins are low cost insulation fasteners designed to provide a strong mechanical anchor point for duct liner and a smooth transition from the insulation surface to the quilting depression
• 1 in dia washer
• For 1 in 1-2 density duct liner
• 0.531 in L after setting
• All Duro Dyne insulation fasteners are designed to meet SMACNA HVAC duct construction standard

• Duro Dyne 10171 Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Duro_Dyne_10171_Manual.pdf
• Duro Dyne 26002 Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Duro_Dyne_26002_Catalog.pdf
• Duro Dyne 26002 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Duro_Dyne_26002_Specification_Sheet.pdf
