| Finish | : | Zinc Coated |
| Material | : | Steel |
| Specifications | : | 125 lb |
| Suitable For Use With | : | HV AC Systems |

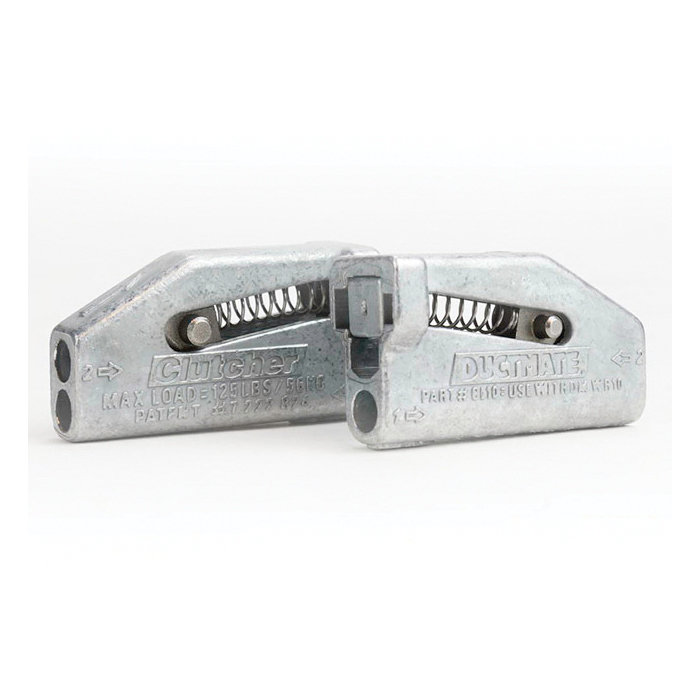

The Ductmate® Clutcher® System is a complete Steel Cable hanging system for HVAC Systems. The Ductmate® Clutcher® Cable Hanging System consists of Ductmate® Clutcher Cable and the Ductmate® Clutcher mechanism. For the system to work properly, both components must be used. Ductmate® Clutcher Cable is the only cable tested and approved for use with the Ductmate® Clutcher system. Use of any other cable is prohibited, and will void the Ductmate® warranty. The Clutcher mechanism uses a serrated steel wedge to grip the Clutcher Cable. The housing of the mechanism is cast out of metal. The shape and orientation of the wedge allows Clutcher Cable to pass through in one direction. When a load is applied to the Clutcher Cable in the opposite direction, the wedge grips the Clutcher Cable and presses it against the Clutcher mechanism housing, preventing it from moving. The Clutcher mechanism has two bores or passages. The first bore allows the Clutcher Cable to pass freely through the housing, the second bore contains the wedge mechanism described above.
Ductmate® Clutcher® Clutcher Cable Hanging System, For Use With: HV AC Systems, Specifications: 125 lb, Steel, Zinc Coated
- Meets SMACNA upper and lower attachment construction standards if used per manufacturer's installation guidelines
- Seismic tested and conforms to ICC Code guidelines AC284
- Engineered for strength and durability
- Tapered bore design for fast and easy installation
- Eliminates the need to stock multiple lengths of cable
- Compact design is aesthetically pleasing
- Easily adjust hanging height by hand
- Items can be hung at angles up to 60 deg from vertical
