Diversitech 440555D

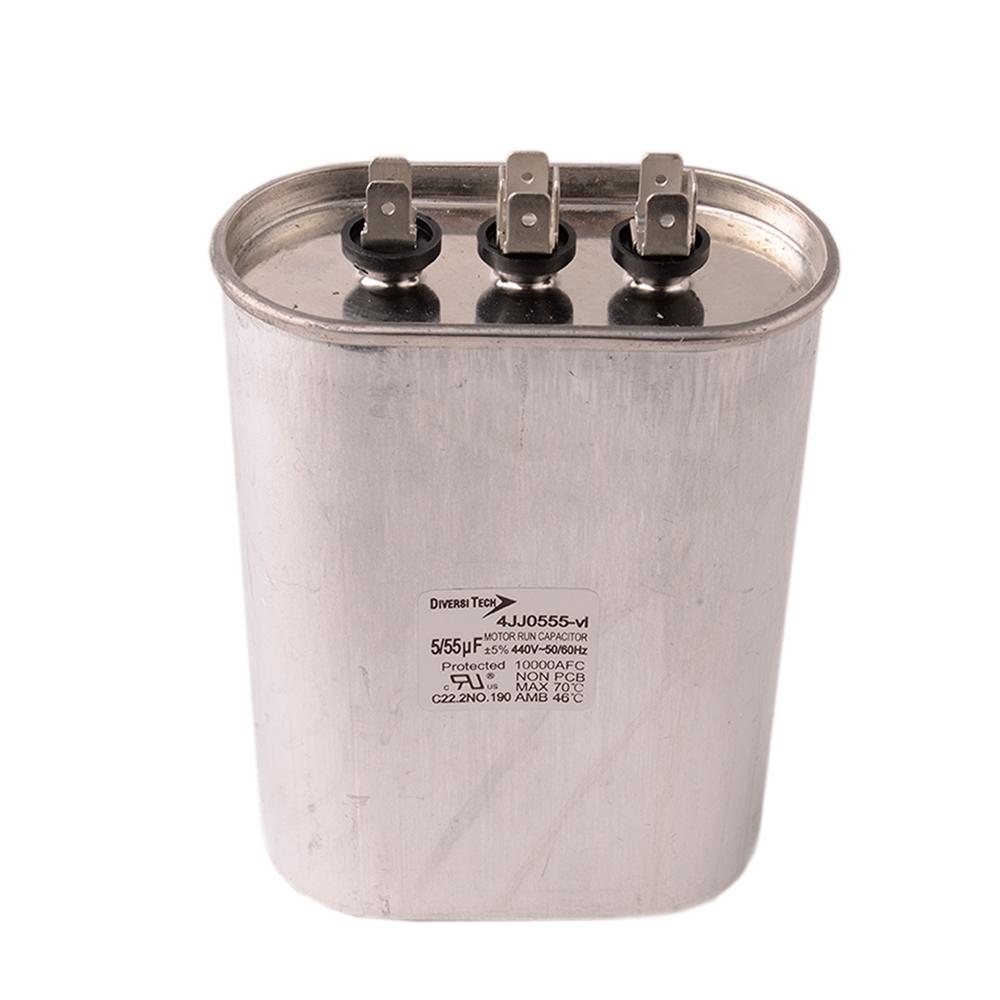

Diversitech 4JJ0555 Dual Motor Run Capacitor, 55/5 uF, 440 VAC, Oval

Manufacturer: DiversiTech
Brand Name: Diversitech
Part#: 440555D
MPN: 4JJ0555
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Add / Remove CPN
Capacitance      :      55/5 uF
Case Material      :      Metal
Color      :      Silver
Dimensions      :      3-3/4 in W x 2 in D x 4-3/4 in H
Domestic/Import      :      Import
Shape      :      Oval
Specifications      :      50/60 Hz, +/-5% Tolerance, 3-3/4 in H Case
Type      :      Dual
Voltage Rating      :      440 VAC

Diversitech Motor Run Capacitor, Dual, 55/5 uF, 440 VAC, Oval, Metal Case, 50/60 Hz, +/-5% Tolerance, 3-3/4 in H Case, Silver, 3-3/4 in W x 2 in D x 4-3/4 in H, Import

  • Guaranteed for 10000 hr of life under normal operating conditions
  • Operating life of 94% at 60000 hr
  • Meets 10000 AFC safety requirement per UL 810
  • Between terminals: Rated voltage x 1.75 VAC, 10 sec withstand voltage test
  • Between terminals and case: Rated voltage x 2+1000 VAC, 60 sec withstand voltage test
  • Maximum permissible voltage: 110% of the rated voltage
  • Maximum permissible current: 130% of the rated current
  • Oil filled, non PCB
  • 1/4 in quick connect terminal
  • -40 to 70 deg C permissible temperature
  • Designed for continuous run
