Diversitech 440405

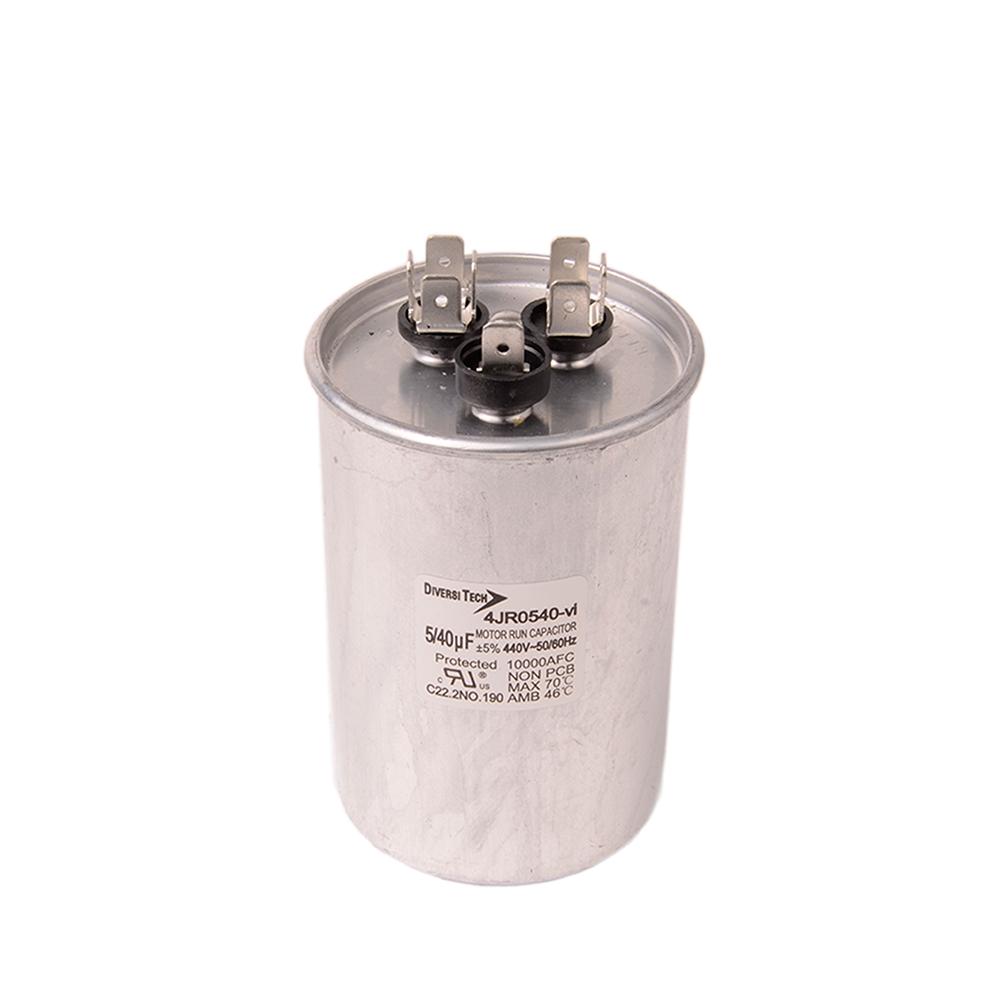

Diversitech 4JR0540 Dual Motor Run Capacitor, 40/5 uF, 400 VAC, Round

Manufacturer: DiversiTech
Brand Name: Diversitech
Part#: 440405
MPN: 4JR0540
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Add / Remove CPN
Capacitance      :      40/5 uF
Case Material      :      Metal
Domestic/Import      :      Import
Shape      :      Round
Specifications      :      50/60 Hz, +/- 5% Tolerance, 3.54 in H Case
Type      :      Dual
Voltage Rating      :      400 VAC

Diversitech Motor Run Capacitor, Dual, 40/5 uF, 400 VAC, Round, Metal Case, 50/60 Hz, +/- 5% Tolerance, 3.54 in H Case, Import

  • Guaranteed for 10000 hr of life under normal operating conditions
  • Operating life of 94 percent at 60000 hours
  • Meets 10000 AFC safety requirement per UL 810
  • Individually packaged
  • Between terminals: rated voltage x 1.75 VAC, 10 sec withstand voltage test
  • Between terminals and case: rated voltage x 2+1000 VAC, 60 sec withstand voltage test
  • Maximum permissible voltage: 110 percent of the rated voltage
  • Maximum permissible current: 130 percent of the rated current
  • Oil filled, Non PCB
  • 1/4 in quick connect terminals
