Diversitech 44010

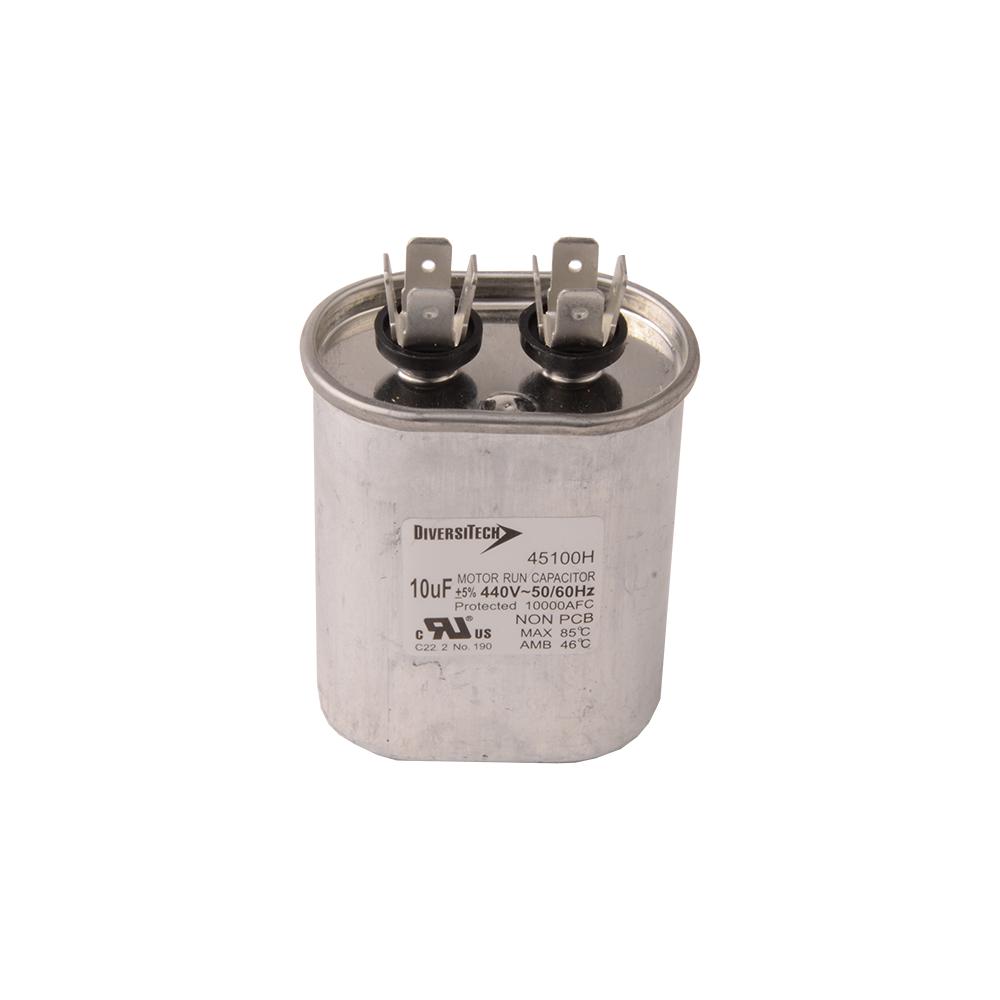

Diversitech 45100H Single Motor Run Capacitor, 10 uF, 440 VAC, Oval

Manufacturer: DiversiTech
Brand Name: Diversitech
Part#: 44010
MPN: 45100H
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Add / Remove CPN
Capacitance      :      10 uF
Case Material      :      Metal
Domestic/Import      :      Import
Shape      :      Oval
Specifications      :      50/60 Hz, +/- 5% Tolerance, 2.56 in H Case
Type      :      Single
Voltage Rating      :      440 VAC

These single capacitance oval, metal can capacitors are designed for continuous run.

Diversitech Motor Run Capacitor, Single, 10 uF, 440 VAC, Oval, Metal Case, 50/60 Hz, +/- 5% Tolerance, 2.56 in H Case, Import

  • Guaranteed for 10000 hr of life under normal operating conditions
  • Operating life of 94 percent at 60000 hours
  • Meets 10000 AFC safety requirement per UL 810
  • Individually packaged
  • Between terminals: Rated voltage x 1.75 VAC, 10 s withstand voltage test
  • Between terminals and case: Rated voltage x 2+1000 VAC, 60 s withstand voltage test
  • Maximum permissible voltage: 110 percent of the rated voltage
  • Maximum permissible current: 130 percent of the rated current
  • Oil filled, non PCB
  • 1/4 in quick connect terminal
