Diversitech 3704575

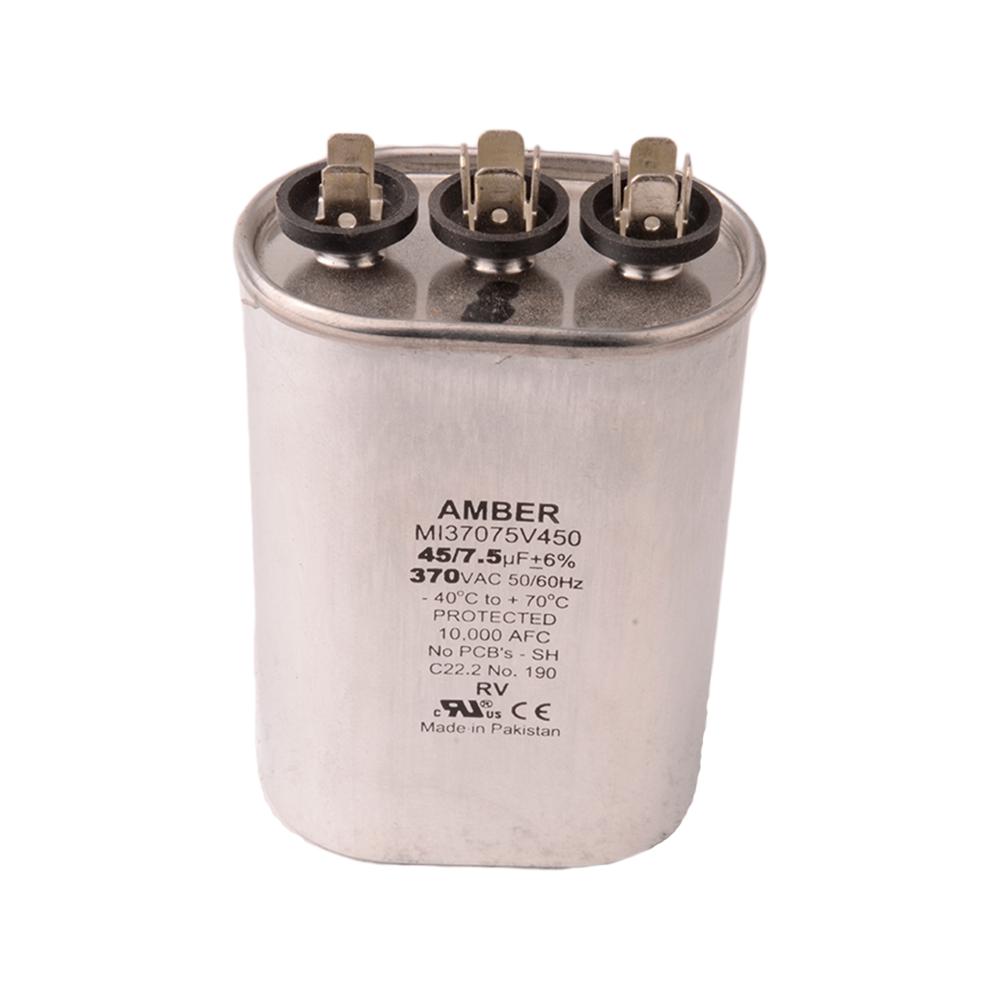

Diversitech 3GJ7545 Dual Motor Run Capacitor, 45/7.5 uF, 370 VAC, Oval

Manufacturer: DiversiTech
Brand Name: Diversitech
Part#: 3704575
MPN: 3GJ7545
Min. Order Qty: 1
Sold As: 20/CS
Login for Availability
Login for Price
Add / Remove CPN
Capacitance      :      45/7.5 uF
Case Material      :      Metal
Color      :      Silver
Domestic/Import      :      Domestic
Shape      :      Oval
Specifications      :      50/60 Hz, +/-5% Tolerance, 3.94 in H Case
Type      :      Dual
Voltage Rating      :      370 VAC

Diversitech Motor Run Capacitor, Dual, 45/7.5 uF, 370 VAC, Oval, Metal Case, 50/60 Hz, +/-5% Tolerance, 3.94 in H Case, Silver, Domestic

  • Guaranteed for 10000 hr of life under normal operating conditions
  • Operating life of 94% at 60000 hr
  • Meets 10000 AFC safety requirement per UL 810
  • Between terminals: Rated voltage x 1.75 VAC, 10 sec withstand voltage test
  • Between terminals and case: Rated voltage x 2+1000 VAC, 60 sec withstand voltage test
  • Maximum permissible voltage: 110% of the rated voltage
  • Maximum permissible current: 130% of the rated current
  • Oil filled, non PCB
  • Quick connect terminal - Faston No 250 series size
  • -40 to 70 deg C permissible temperature
