Diversitech 30ADC

Diversitech DDS-30 Pull-Out Fused Disconnect Switch, 240 VAC, 30 A, 10 hp

Manufacturer: DiversiTech
Brand Name: Diversitech
Part#: 30ADC
MPN: DDS-30
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Amperage Rating      :      30 A
Color      :      Gray
Enclosure Type      :      NEMA 3R
Horsepower      :      10 hp
Material      :      Metal
Type      :      Pull-Out Fused
Voltage Rating      :      240 V AC

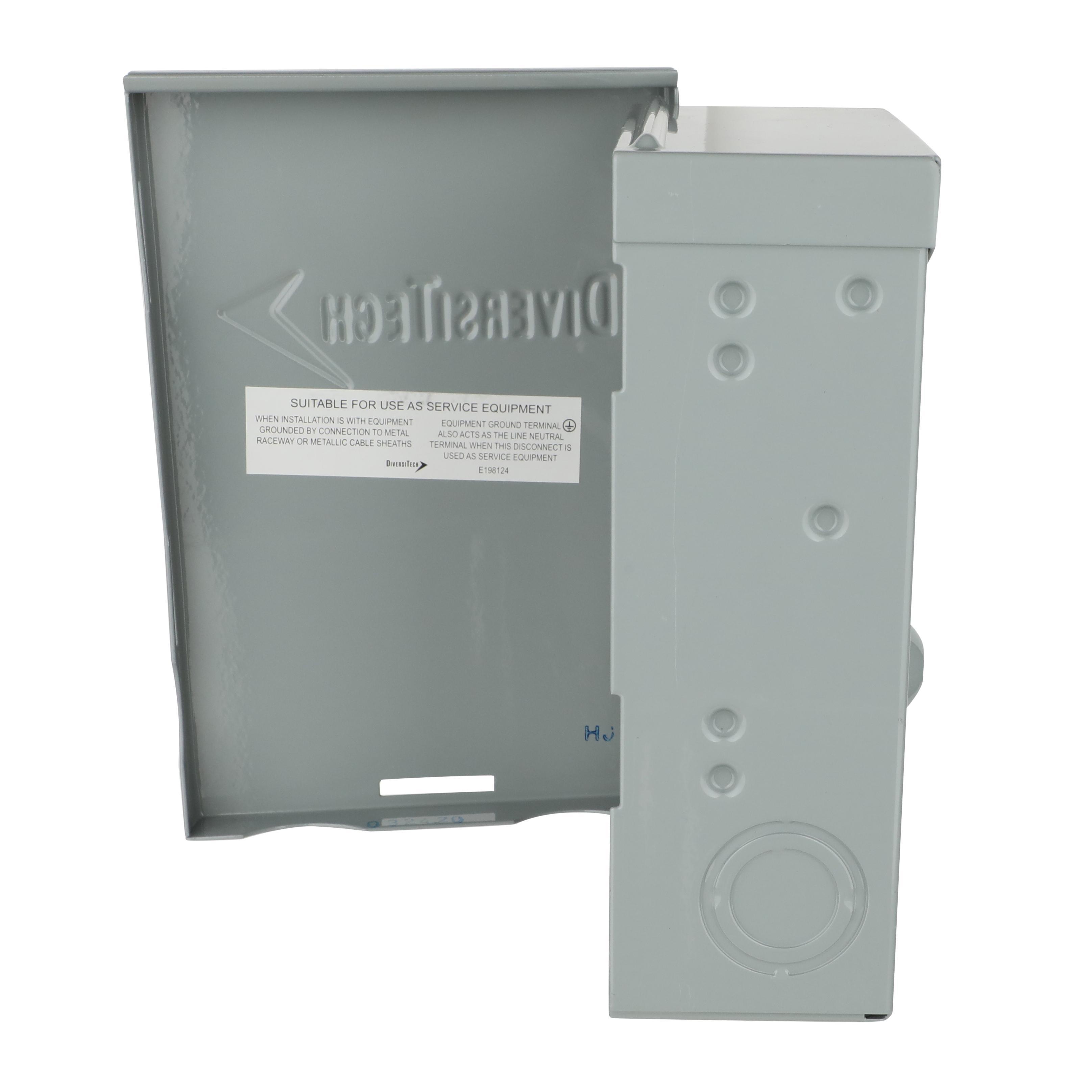

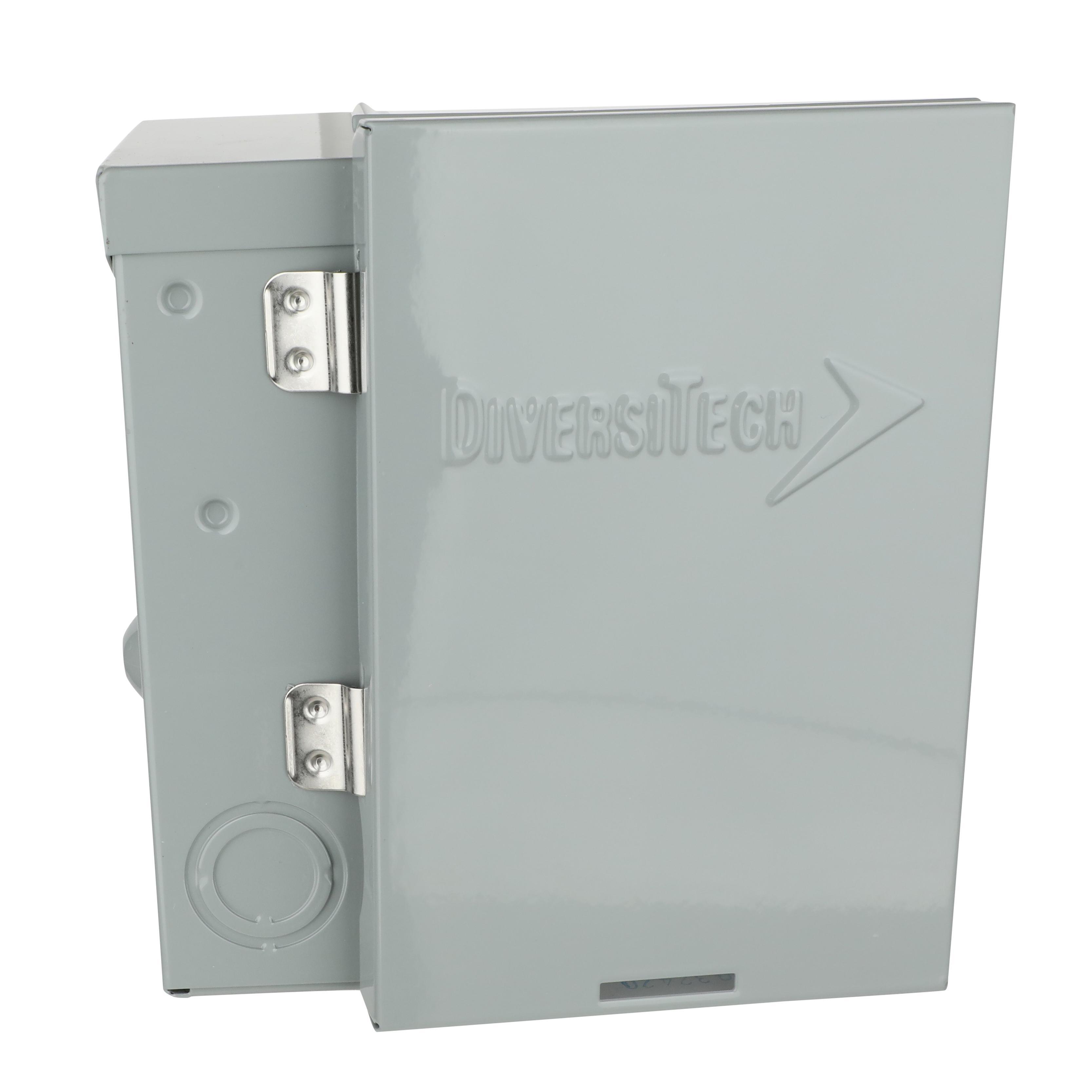

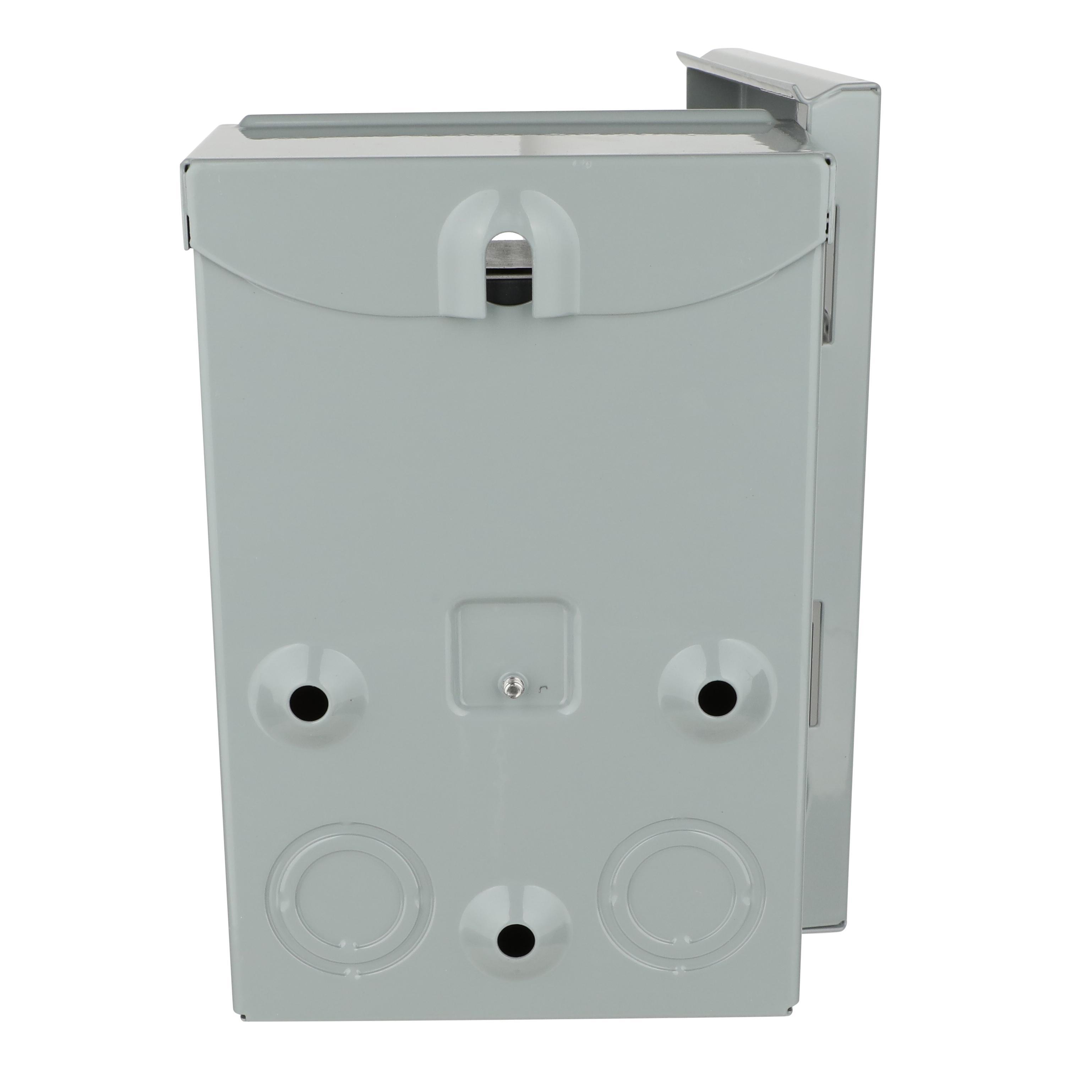

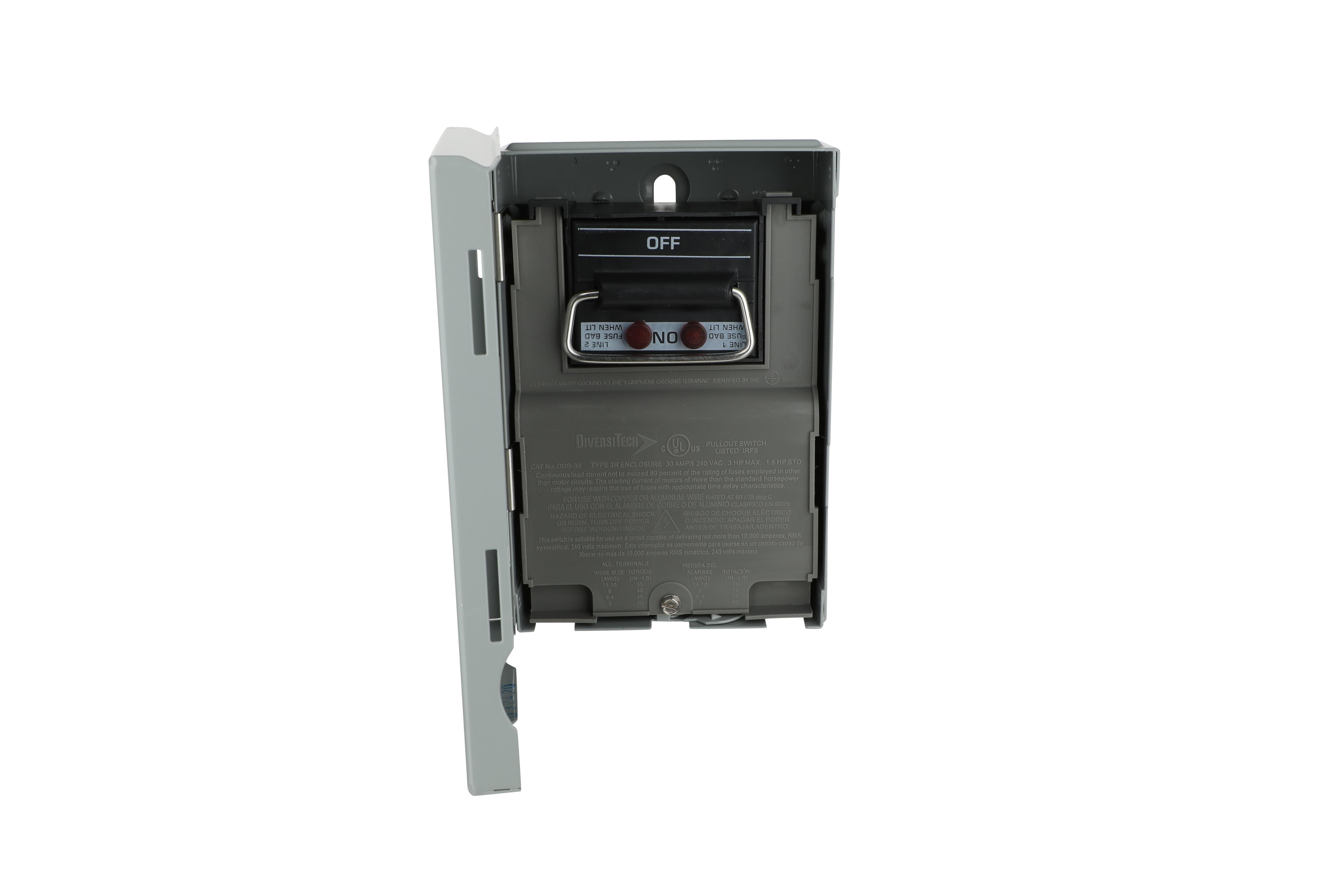

This DiversiTech® DDS-30 Fusible Disconnect Switch, 30 Amps fused model designed with fuses in pull out handle for easy replacement. The line, load, and ground terminals are aligned for ease of wiring. This product has a reversible door. The side open door opens more than 180 degrees for maximum access and has a full dead front. The UL Listed number is IRF9, NEMA Type 3R and the US Patent is 6,630,637.

Diversitech Disconnect Switch, Pull-Out Fused, 240 VAC, 30 A, 10 hp, NEMA 3R, Metal, Gray

  • The line, load, and ground terminals are aligned for ease of wiring
  • Reversible door which opens to either left or rigHigh Temperature and also opens more than 180 deg for maximum access and has a full dead front
