Century® BL6424

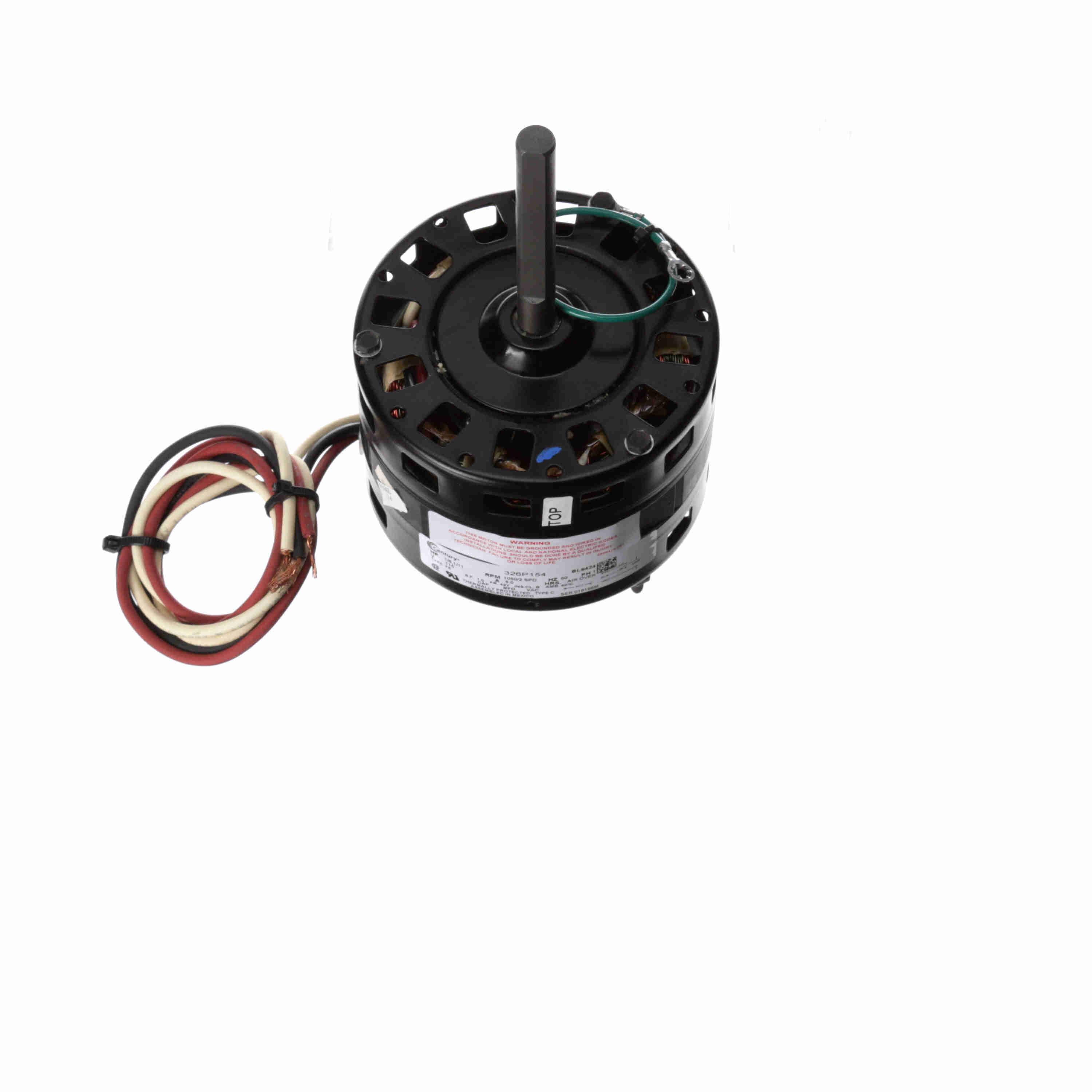

Century® BL6424 Shaded Pole Fan and Blower Motor, OAO Enclosure, 1/8, 1/11 hp, 115 V, 60 Hz, 1 Phase, 42Y Frame, 1050 rpm Speed, Extended Studs Mounting

Manufacturer: Regal Rexnord
Brand Name: Century®
Part#: BL6424
MPN: BL6424
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Add / Remove CPN
Amperage Rating      :      5.0 A
Application Type      :      Fan and Blower AC Motor, NEMA/HVAC/R Motors
Bearing Type      :      Sleeve
Enclosure Type      :      OAO
Frame      :      42Y
Frequency Rating      :      60 Hz
Horsepower      :      1/8, 1/11 hp
Insulation Class      :      Class B
Mounting Type      :      Extended Studs
Number of Speeds      :      2
Phase      :      1
Rotation      :      Counterclockwise
Service Factor      :      1
Shaft Size      :      0.5 in Dia x 4.1 in L
Speed      :      1050 rpm
Temperature Rating      :      40 deg C
Type      :      Shaded Pole
Voltage Rating      :      115 V

Century®, BL6424, Fan and Blower Motor, Shaded Pole, Fan and Blower AC Motor, NEMA/HVAC/R Motors Application, 1/8, 1/11 hp, 115 V, 5.0 A, 60 Hz Frequency, 1 ph, 1050 rpm Speed, 2 Speed, OAO Enclosure, 42Y Frame, 0.5 in Dia x 4.1 in L Shaft, Counterclockwise Rotation, 1 Service Factor, Sleeve Bearing, Extended Studs Mounting, 40 deg C

  • Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40 deg C Ambient
  • 1/2 in Diameter Shaft with Flat Leads
  • Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount
