Century® 12SP

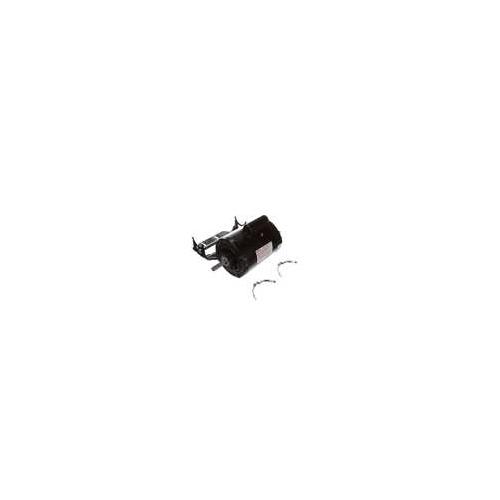

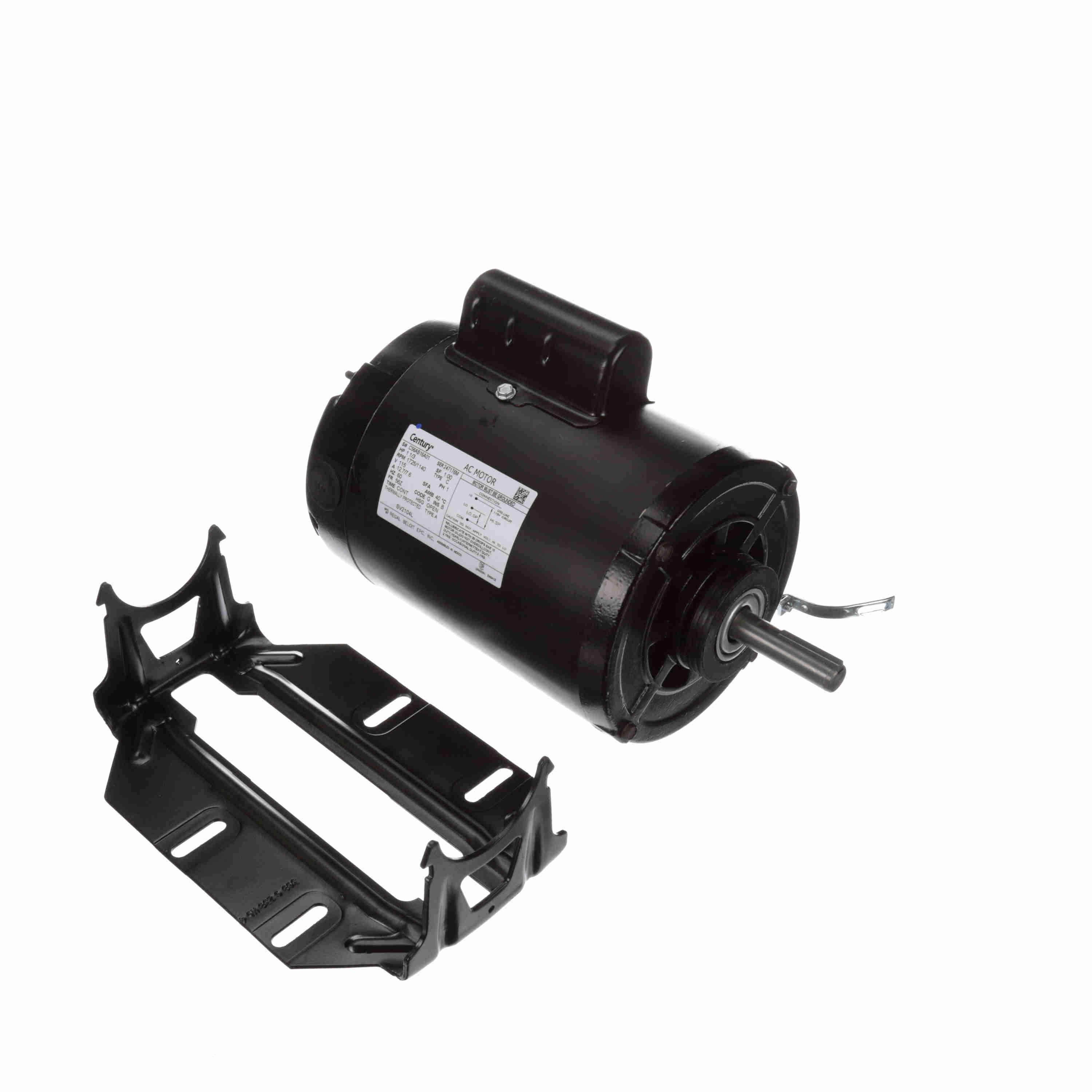

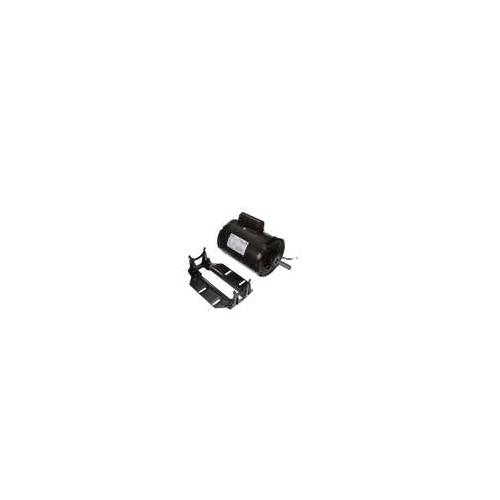

Century® SV2104L Capacitor Start Induction Run Refrigeration Motor, Open Enclosed Enclosure, 1-1/3 hp, 115 V, 60 Hz, 1 Phase, 56Z Frame, 1725/1140 rpm Speed, Resilient Base Mounting

Manufacturer: Regal Rexnord
Brand Name: Century®
Part#: 12SP
MPN: SV2104L
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Add / Remove CPN
Amperage Rating      :      12.7/7.6 A
Application Type      :      NEMA/HVAC/R Motors, Refrigeration Motors
Bearing Type      :      Sleeve
Enclosure Type      :      Open Enclosed
Frame      :      56Z
Frequency Rating      :      60 Hz
Horsepower      :      1-1/3 hp
Insulation Class      :      Class B
Material      :      Rolled Steel
Mounting Type      :      Resilient Base
Number of Speeds      :      2
Phase      :      1
Rotation      :      Counterclockwise
Service Factor      :      1
Shaft Size      :      0.625 in Dia x 2.13 in L
Speed      :      1725/1140 rpm
Temperature Rating      :      40 deg C
Type      :      Capacitor Start Induction Run
Voltage Rating      :      115 V

Century®, SV2104L, Refrigeration Motor, Capacitor Start Induction Run, NEMA/HVAC/R Motors, Refrigeration Motors Application, 1-1/3 hp, 115 V, 12.7/7.6 A, 60 Hz Frequency, 1 ph, 1725/1140 rpm Speed, 2 Speed, Open Enclosed Enclosure, 56Z Frame, 0.625 in Dia x 2.13 in L Shaft, Counterclockwise Rotation, 1 Service Factor, Sleeve Bearing, Resilient Base Mounting, 40 deg C, Rolled Steel

  • Brass current carrying
  • Single and two speed
  • Continuous filtration of oil
  • Electro-zinc encapsulating varnish
  • Heavy magnet wire insulation
  • Electro-zinc plated governor parts, dust caps and terminal board cover
  • Auto protector
