Broan® QTXE110

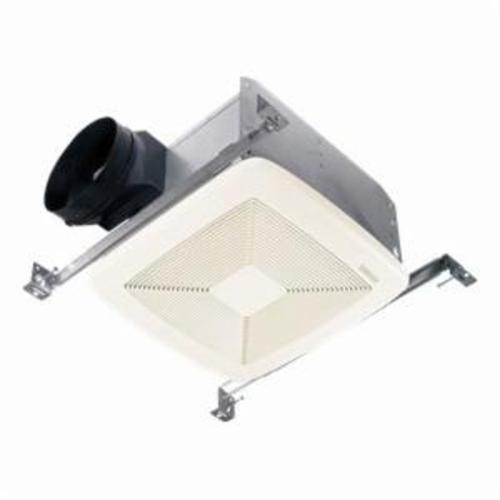

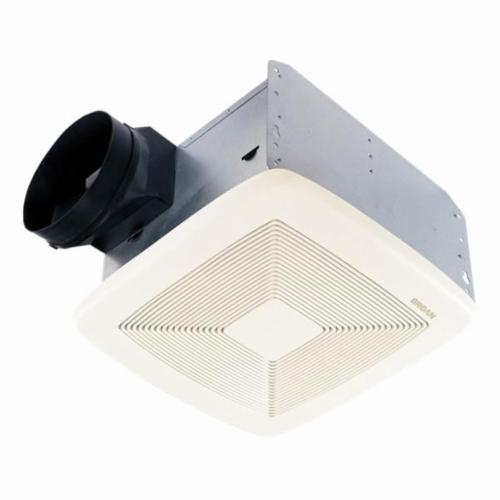

Broan® Ultra Silent™ Heat-A-Ventlite® QTXE110 Ultra-Quiet Bathroom Exhaust Fan, 110 cfm, 6 in Dia Duct, 33.5 W, 120 VAC, 0.3 A, 0.7 sones, Domestic

Manufacturer: Broan-NuTone
Brand Name: Broan®
Part#: QTXE110
MPN: QTXE110
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White
Current/Amps      :      0.3 A
Domestic/Import      :      Domestic
Duct Diameter      :      6 in
Flow Rate      :      110 cfm
Grille Length      :      13 in
Grille Material      :      Polymer
Grille Width      :      13-3/4 in
Housing Height      :      7-5/8 in
Housing Length      :      10-1/2 in
Housing Material      :      Galvanized Steel
Housing Width      :      11-3/8 in
Humidity Sensing      :      No
Motion Sensing      :      No
Mounting Type      :      Ceiling
Series      :      QTXE
Sones      :      0.7 sones
Type      :      Ultra-Quiet
Voltage Rating      :      120 VAC
Wattage Consumption      :      33.5 W

Broan® QT series ventilation products offer the rare combination of power and extremely quiet operation. Offered with a variety of additional functions such as lights, nightlights and heaters, they also do the job efficiently as most are ENERGY STAR® qualified.

Broan® Ultra Silent™ Heat-A-Ventlite® Bathroom Exhaust Fan, Ultra-Quiet, Series: QTXE, 110 cfm Flow Rate, 6 in Diameter Duct, 120 VAC, 0.3 A Current/Amps, 33.5 W Wattage Consumption, 0.7 sones, 13 in Grille Length, 13-3/4 in Grille Width, Polymer Grille, 10-1/2 in Housing Length, 11-3/8 in Housing Width, 7-5/8 in Housing Height, Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, No Motion Sensing, White, Domestic

  • Motor engineered for continuous operation
  • Hanger bars for easy, fast and universal installation in all types of construction
  • Plug-in, permanently lubricated motor engineered for continuous operation
  • Dynamically balanced centrifugal blower wheel for quiet and efficient performance
  • Maintains a high percentage of rated cfm in less than ideal installations
  • Low rpm for quiet operation blower
  • Polymeric duct connector with tapered sleeve and no metallic clatter
  • 7-5/8 in height allows for 2 x 8 in (nominal) joist installations
  • Sturdy, easy, 4-point mounting directly to joist
  • Includes unique spacer (patent pending) for mounting to engineered "I" joists
  • Includes hanger bars to position housing anywhere between 16 to 24 in on-center joists
  • Two sets of mounting holes for hanger bars allow flush installation with bottom or top of drywall
  • Can be mounted in ceilings up to 12/12 pitch
  • Innovative design the result of extensive research with designers and consumers

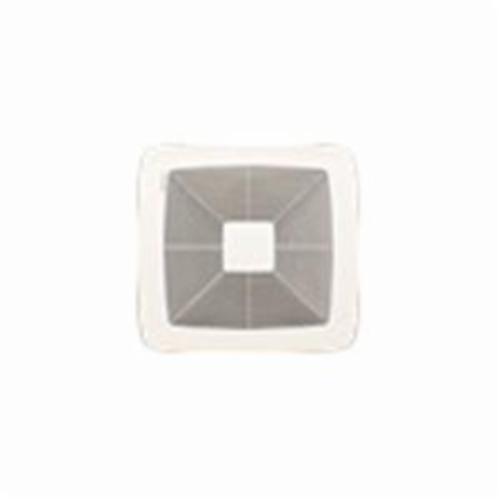

  • Ultra quiet, high performance bath fan with a modern styled grille
  • Horizontal duct direction
  • 110 cfm at 0.1 in SP, 90 cfm at 1/4 in SP flow rate
  • Rugged 26 ga galvanized steel construction housing
  • 6 in round ducting for superior performance
