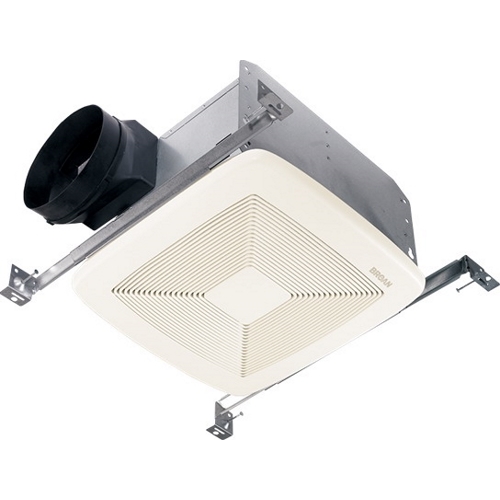

Broan® QTXE080

Broan® Heat-A-Ventlite® QTXE080 Ultra-Quiet Bathroom Ventilation Fan, 80 cfm, 6 in Dia Duct, 23.3 W, 120 VAC, 0.2 A, 0.3 Sones, Domestic

Manufacturer: Broan-NuTone
Brand Name: Broan®
Part#: QTXE080
MPN: QTXE080
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White
Current/Amps      :      0.2 A
Domestic/Import      :      Domestic
Duct Diameter      :      6 in
Flow Rate      :      80 cfm
Frequency Rating      :      60 Hz
Grille Length      :      13 in
Grille Material      :      Polymer
Grille Width      :      13-3/4 in
Housing Height      :      7-5/8 in
Housing Length      :      10-1/2 in
Housing Material      :      Galvanized Steel
Housing Width      :      11-3/8 in
Humidity Sensing      :      No
Motion Sensing      :      No
Mounting Type      :      Ceiling
Series      :      QTXE
Sones      :      0.3
Type      :      Ultra-Quiet
Voltage Rating      :      120 VAC
Wattage Consumption      :      23.3 W

Broan® QT series ventilation products offer the rare combination of power and extremely quiet operation. Offered with a variety of additional functions such as lights, nightlights and heaters.

Broan® Heat-A-Ventlite® Bathroom Ventilation Fan, Ultra-Quiet, Series: QTXE, 80 cfm, 6 in Duct Dia, 120 VAC, 0.2 A, 60 Hz, 23.3 W, 0.3 Sones, 13 in Grille Length, 13-3/4 in Grille Width, Polymer Grille, 10-1/2 in Housing Length, 11-3/8 in Housing Width, 7-5/8 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, White, Domestic

  • Plug-in, permanently lubricated motor engineered for continuous operation
  • Dynamically balanced centrifugal blower wheel for quiet, efficient performance
  • Low rpm for quiet operation blower
  • Rugged construction
  • Polymeric duct connector with tapered sleeve and no metallic clatter
  • 7-5/8 in height allows for 2 x 8 in (nominal) joist installations
  • Sturdy, easy, 4-point mounting directly to joist
  • 6 in round ducting for superior performance, Horizontal duct direction
  • Innovative design - the result of extensive research with designers and consumers
  • Fan shall have corrosion resistant galvanized steel housing with 4-point mounting capability
  • Blower assembly shall be removable, have a centrifugal type blower wheel and a permanently lubricated motor designed for continuous operation
  • Includes unique, patented spacer for mounting to engineered I joists
  • Includes hanger bars to position housing anywhere between 16 to 24 in on-center joists
  • Two sets of mounting holes for hanger bars allow flush installation with bottom or top of drywall
  • Can be mounted in ceilings upto 12/12 pitch
  • Hanger bars for easy, fast and universal installation in all types of construction
  • Can be used to comply with ASHRAE 62.2 and CALGreen
  • No nightlight
  • 80 cfm at 0.1 in SP/55 cfm at 1/4 in SP airflow rate
