| Color | : | White |
| Current/Amps | : | 0.23 A |
| Domestic/Import | : | Import |
| Duct Diameter | : | 4 in |
| Flow Rate | : | 50, 80, 100 cfm |

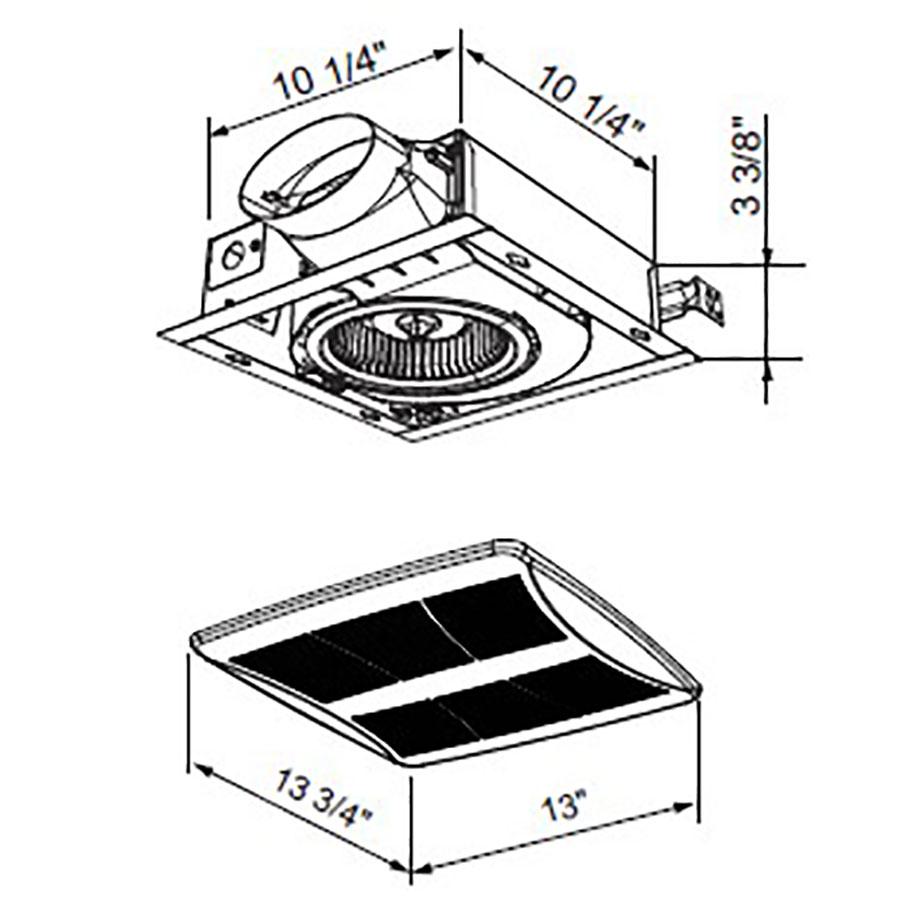

| Grille Length | : | 13 in |

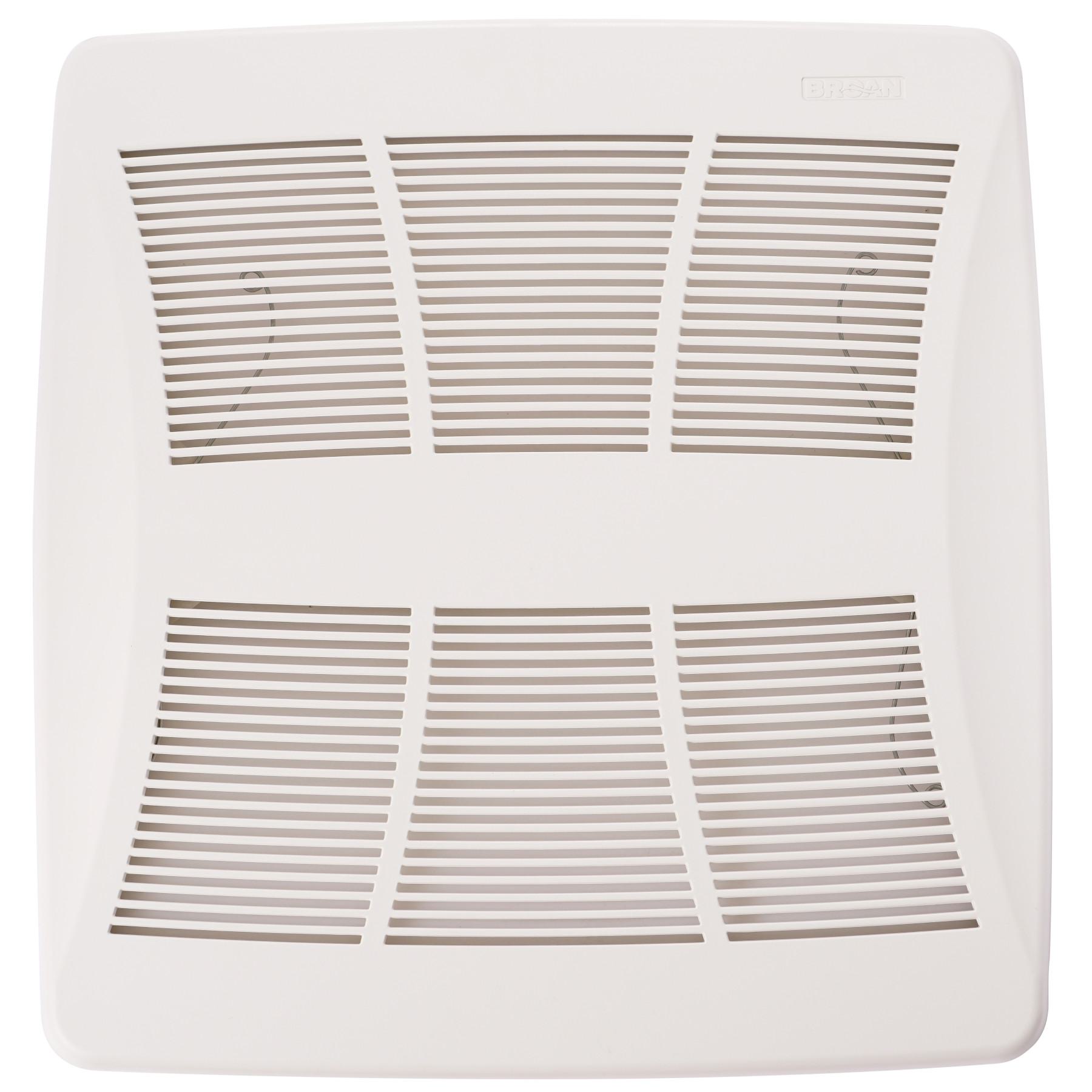

| Grille Material | : | Polymer |
| Grille Width | : | 13.75 in |
| Housing Height | : | 10-1/4 in |
| Housing Length | : | 10-1/4 in |
| Housing Material | : | Galvanized Steel |
| Housing Width | : | 3-3/8 in |
| Humidity Sensing | : | No |
| Motion Sensing | : | No |
| Mounting Type | : | Ceiling |
| Series | : | Lo-Profile DC |
| Voltage Rating | : | 120 VAC |

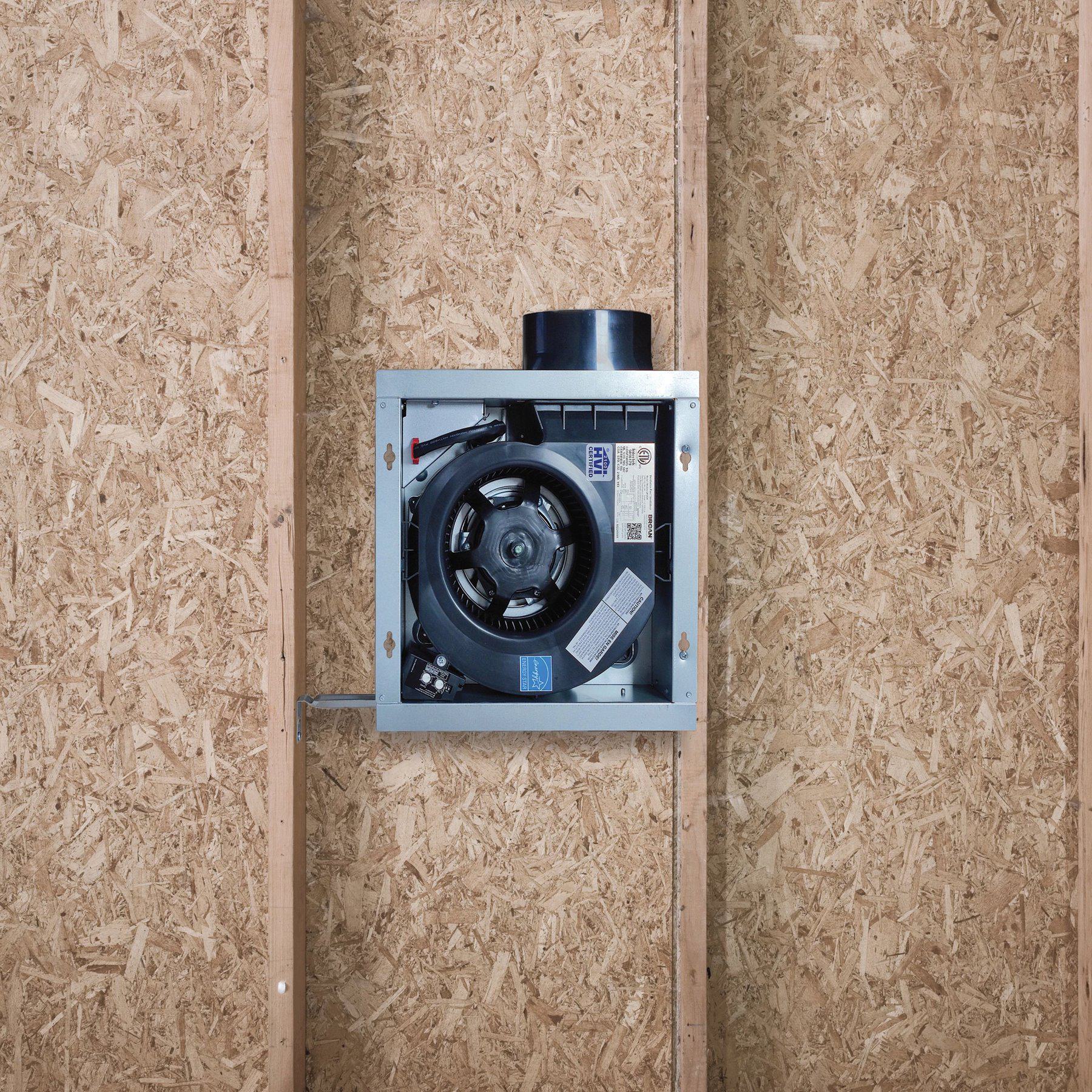

The Broan® Lo-Profile fan is our solution for installations where conventional ventilation simply won't fit. The LoProfile fan is narrow enough to be installed in a wall between 2x4 studs, such as multi-family applications. This Lo-Profile fan is the only exhaust ventilation fan on the market that features selectable CFM, between 50, 80, and 100 CFM and pre-installed continuous run that allows a user to set their low-speed mode between 30 and 100 CFM. This fan also features TRUE CFM™ which when installed the fan will not lose CFM performance regardless of how complicated the ducting. This bath fan meets ASHRAE 62.2 and is ENERGY STAR® certified.
Broan®, LP510R, Bathroom Exhaust Fan, Series: Lo-Profile DC, 50, 80, 100 cfm Flow Rate, 4 in Diameter Duct, 120 VAC, 0.23 A Current/Amps, 13 in Grille Length, 13.75 in Grille Width, Polymer Grille, 10-1/4 in Housing Length, 3-3/8 in Housing Width, 10-1/4 in Housing Height, Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, White, Import
- Selectable CFM and Continuous Run, speeds of 50-80-100 for effective ventilation and built-in continuous run technology to remove moisture and reduce the risk of mold or mildew in most full baths
- TRUE CFM, Installed exhaust fan will not lose CFM performance even with complicated ducting, unlike the competition
- Quiet Performance 0.4 / 0.9 / 1.2 Sones for quiet performance, enough sound to know your fan is on
- Adjustable low CFM setting allows precise adjustment to prevent over-ventilating and maximize energy efficiency
- Adjustable time delay sets how long fan will run on high speed before returning to a continuous lower speed
- ETL listed for use over bathtubs and showers when connected to GFCI protected branch circuit (ceiling installation only)
- Powerful enough for rooms up to 90 sq. ft
- 4 in oval duct connection for installation flexibility, allows for ceiling or wall mounting
- Optional 4 in oval to 3 in round duct adapter sold separately (S1110515)
