| Amperage Rating | : | 0.4 A |
| Color | : | White |

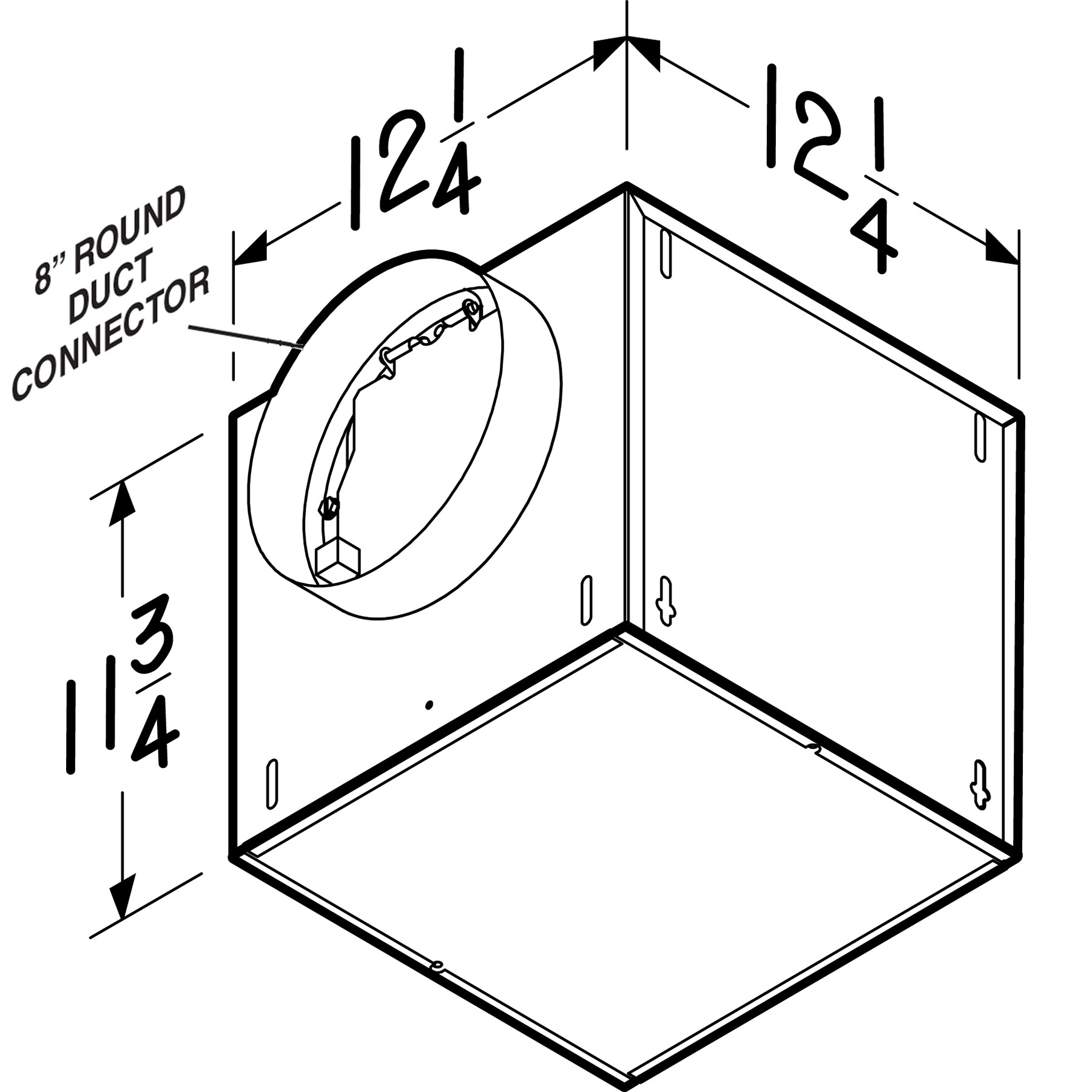

| Dimensions | : | 11.75 in H x 12.25 in W |
| Domestic/Import | : | Domestic |
| Duct Size | : | 8 in |
| Flow Rate | : | 174 cfm |
| Frequency Rating | : | 60 Hz |
| Housing Material | : | Galvanized Steel |
| Length | : | 12.25 in |
| Motor Speed | : | 1023 rpm |
| Motor Type | : | Plug-In |
| Power Rating | : | 4.1 W |
| Type | : | High Capacity |
| Voltage Rating | : | 120 V |
Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.
Broan®, L150EL, Inline Ventilation Fan, High Capacity, 120 V, 0.4 A, 4.1 W Power, 174 cfm Flow Rate, 8 in Duct, 12.25 in Length, 60 Hz Frequency, Plug-In Motor, 1023 rpm Motor, Galvanized Steel Housing Material, White, 11.75 in H x 12.25 in W Dimensions
- Ventilator shall have galvanized steel housing insulated with at least 1/2 in of acoustic insulation
- Housing to have adjustable mounting brackets and removable panel to allow motor access without disturbing ductwork
- Automatic backdraft damper to be located within duct connector
- Blower unit shall be removable from housing and shall have a dynamically balanced centrifugal-type blower wheel
- Motor to be permanently lubricated and mounted with resilient antivibration mounts
