Broan® L100

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.

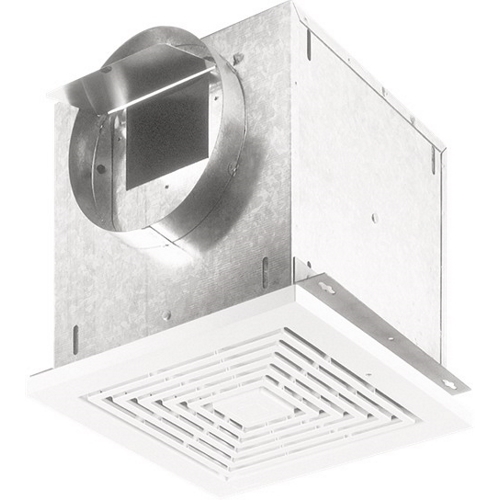

Broan® LoSone Select® Ceiling Exhaust Ventilator, High Capacity, 112 cfm, 6 in Duct Dia, 120 VAC, 1.1 A, 60 Hz, 14 in Grille Length, 14 in Grille Width, Polymer Grille, 12-1/4 in Housing Length, 12-1/4 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, White, Domestic

• Resilient anti-vibration motor mounts
• Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
• Low profile styling grille blends with any decor
• Can be ducted horizontally or at 0.1 in SP vertically with in-line ducting available with separate adapter, rugged 20 ga galvanized steel housing with 1/2 in acoustic insulation inside
• 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
• May be installed as an in-line ventilator with addition of accessory kit Model 961L, for controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control
• Plug-in permanently lubricated thermally protected motor designed for continuous operation
• Low rpm for quiet operation blower
• 115 cfm at 0.1 in SP horizontal, 117 cfm at 0.1 in SP vertical
• 109 cfm at 1/8 in SP horizontal, 0.9 Sones, 112 cfm at 0.1 in SP at 1/8 in SP vertical, 1 Sones
• Round duct
• UL listed for use over bathtubs and showers when connected to a GFCI circuit
• Square shape grille
• 640 rpm AC motor
