| Color | : | White |
| Current/Amps | : | 0.3 A |
| Domestic/Import | : | Domestic |
| Duct Diameter | : | 4 in |
| Flow Rate | : | 110 cfm |
| Frequency Rating | : | 60 Hz |
| Grille Length | : | 11-3/8 in |
| Grille Material | : | Polymer |
| Grille Width | : | 12 in |
| Housing Height | : | 5-3/4 in |
| Housing Length | : | 9-1/4 in |
| Housing Material | : | Galvanized Steel |
| Housing Width | : | 10 in |
| Humidity Sensing | : | No |
| Motion Sensing | : | No |
| Mounting Type | : | Ceiling |
| Series | : | InVent™ |
| Sones | : | 1.1 |
| Voltage Rating | : | 120 VAC |
| Wattage Consumption | : | 23.4 W |
To simplify installation, Project Finish Packs are ideal for Builders and Contractors. When drywall work and painting is complete, the fan components needed to finish the job are available in single packs under separate model numbers. This patent-pending series marks a revolution of our mid-range ventilation fans. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. And all with new grille designs that are at home in any decor.

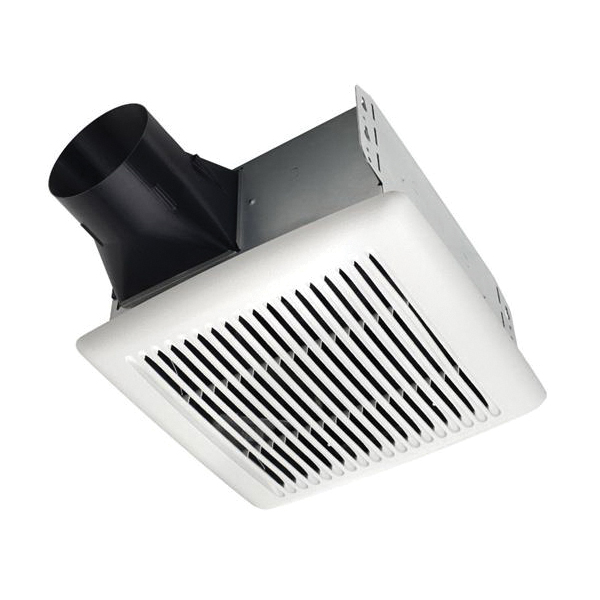

Broan® Bathroom Ventilation Fan Finish Pack, Series: InVent™, 110 cfm, 4 in Duct Dia, 120 VAC, 0.3 A, 60 Hz, 23.4 W, 1.1 Sones, 11-3/8 in Grille Length, 12 in Grille Width, Polymer Grille, 9-1/4 in Housing Length, 10 in Housing Width, 5-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, White, Domestic
- Plug-in, permanently lubricated motor engineered for continuous operation

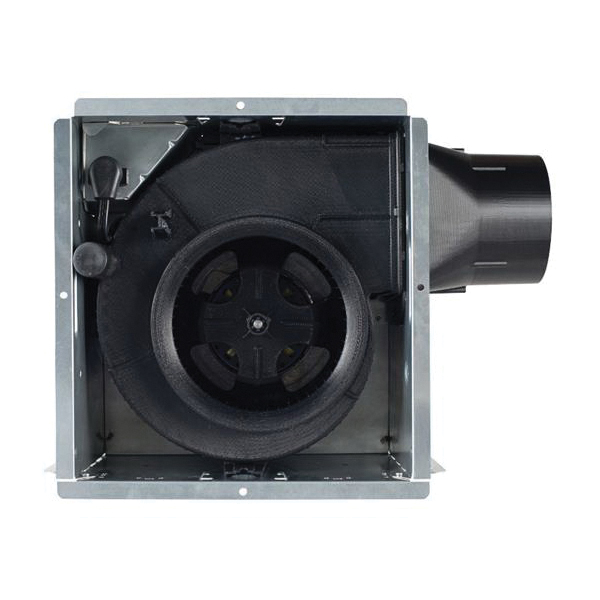

- Dynamically balanced centrifugal blower wheel for quiet, efficient performance
- Low rpm for quiet operation
- Rugged construction
- Polymeric, 4 in duct connector with tapered sleeve and no metallic clatter
- 5-3/4 in height allows for 2 x 6 in ceiling installations
- Sturdy, easy, four-point mounting directly to joist
- Can be mounted in ceilings up to 7/12 pitch
- With our TrueSeal™ damper technology, InVent™ fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- EzDuct™ connector can be installed room-side with no attic access required, fan housing connection have never been easier
- UL listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
