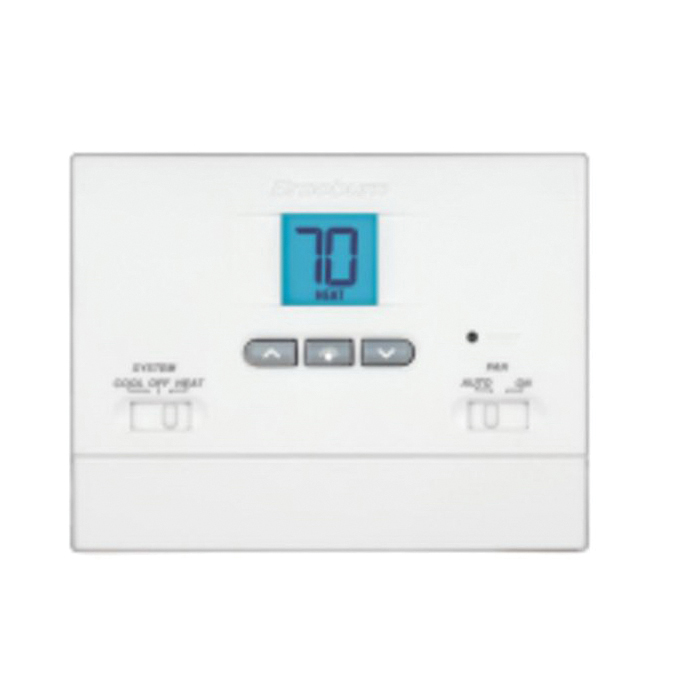

Braeburn® B1020

The digital non-programmable thermostat shall be a Braeburn®, model number 1020, 3.70 in H x 5.16 in W x 1.38 in D, powered independently with either 24 Volt AC or with two "AA" Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv - 750mv millivolt heating systems. The thermostat shall have a bright blue backlight display, adjustable temperature limits and separate sub-base for trouble free installation. Temperature control range shall be between 45 and 90 deg F (7 deg and 32 deg C), accuracy of +/- 1 deg F, humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain all user and temperature settings. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.

Braeburn® Thermostat, Series: Economy, Non-Programmable Thermostat, 45 to 90 deg F Control, 0.5 to 2 deg F Differential, RC, RH, O/B, Y1, W1, G, C Terminal Designations, Circulating Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 5 to 95 % Humidity, 3 sq-in Bright Blue Back-Lit Display, 24 VDC, Battery Power Source, 3.7 x 5.16 x 1.38 in Dimensions, Import

• Adjustable temperature limits
• Permanent memory retains settings
• Compressor short cycle protection
• Separate O and B terminals
• Low battery indication
• ESD Guard™ electronic circuitry
• Front access reset button
• Mount to horizontal box
• +/- 1 deg F accuracy
• 14 to 140 deg F storage temperature
• Compatible with low voltage single stage gas, oil or electric heating or cooling systems, including single stage heat pump system
• Deg F/C switch
• Hardwired power

• Braeburn Systems 1020 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Braeburn_Systems_1020_Specification_Sheet.pdf
