Azure® by Mars® M10860

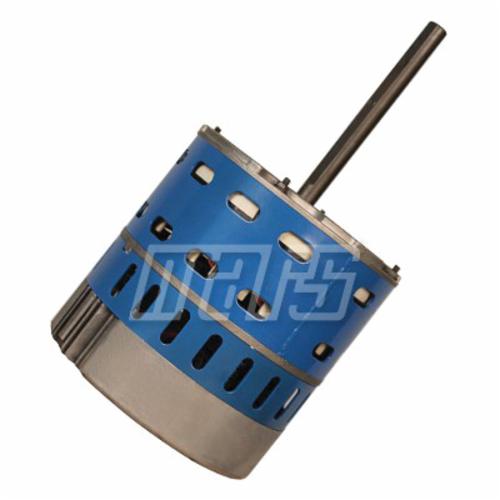

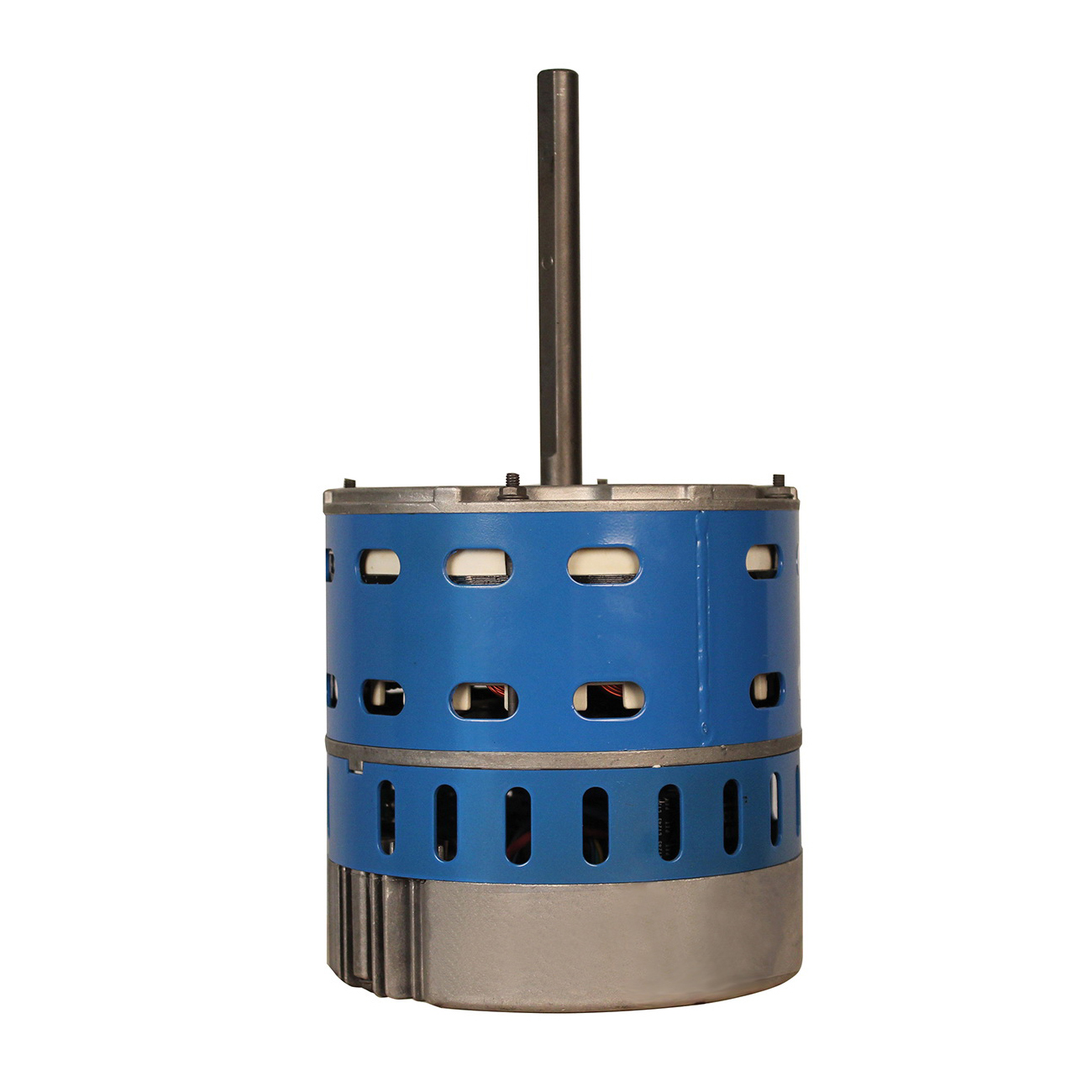

Azure® by Mars® Digi-Motor® 10860 Direct Drive Blower Motor, OAO Enclosure, 1/2 hp, 120/240 VAC, 50/60 Hz, 1 ph, 48 Frame, 350 to 1400 rpm Speed, Belly Band Mount
| Amperage Rating | : | 6.4/3.8 A Full Load |
| Application Type | : | Fan & Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | OAO |
| Frame | : | 48 |
| Frequency Rating | : | 50/60 Hz |
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band |
| Number of Speeds | : | 5 |
| Phase | : | 1 |
| Rotation | : | CW/CCW |
| Shaft Size | : | 0.5 in Dia x 4.94 in L |
| Special Features | : | ECM Motors |
| Speed | : | 350 to 1400 rpm |
| Temperature Rating | : | -20 to 55 deg C |
| Voltage Rating | : | 120/240 VAC |
The Azure® Digi-Motor® from Mars® is a high efficiency variable speed direct drive blower motor for a multitude of applications. Azure® is a replacement for both standard PSC and Genteq X-13 motors. Two motors cover ratings from 1/5 HP to 1 HP at 115V or 230V and CW or CCW. Azure® features an auto sizing learn mode. In start-up learn mode, Azure® runs or approximately 2 min measuring the external static pressure of the system application. Azure® then assigns torque values to each of its speed taps self-programming itself to the correct horsepower for the application. If none of the four speeds provides perfect airflow for the application or if duplicate speeds are desired on 2 or more taps, an optional hand held programmer (Mars® No. 08502) can be used. The programmer connects to Azure® and displays the percentage of torque applied to the speed tap being energized. The percentage (motor speed) can then be increased or decreased and permanently set with the programmer. This tool overrides the motor torques established in the auto sizing mode. Unlike other electronically commutated motors, an outboard surge protector is included within Azure's® wire harness. This is a replaceable device (Mars® No. 08593).
Azure® by Mars® Digi-Motor® Direct Drive Blower Motor, Fan & Blower Motors Application, ECM Motors Special Features, 1/2 hp, 120/240 VAC, 6.4/3.8 A Full Load, 50/60 Hz Frequency, 1 ph, 350 to 1400 rpm Speed, 5 Speed, OAO Enclosure, 48 Frame, 0.5 in Dia x 4.94 in L Shaft, CW/CCW Rotation, Ball Bearing, Belly Band Mounting, -20 to 55 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
- Outboard replaceable surge protector
- Adjustable speeds
- High efficiency 85%
- Multi-horsepower dual voltage
- Thermal overload protection
- For use with PSC and X-13 replacement motor
- Capacitor not included
