| Amperage Rating | : | 2.4 A Full Load |
| Application Type | : | Condenser Fan Motors |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | TEAO |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/3 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | All Angle |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Series | : | 100 |
| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 VAC |

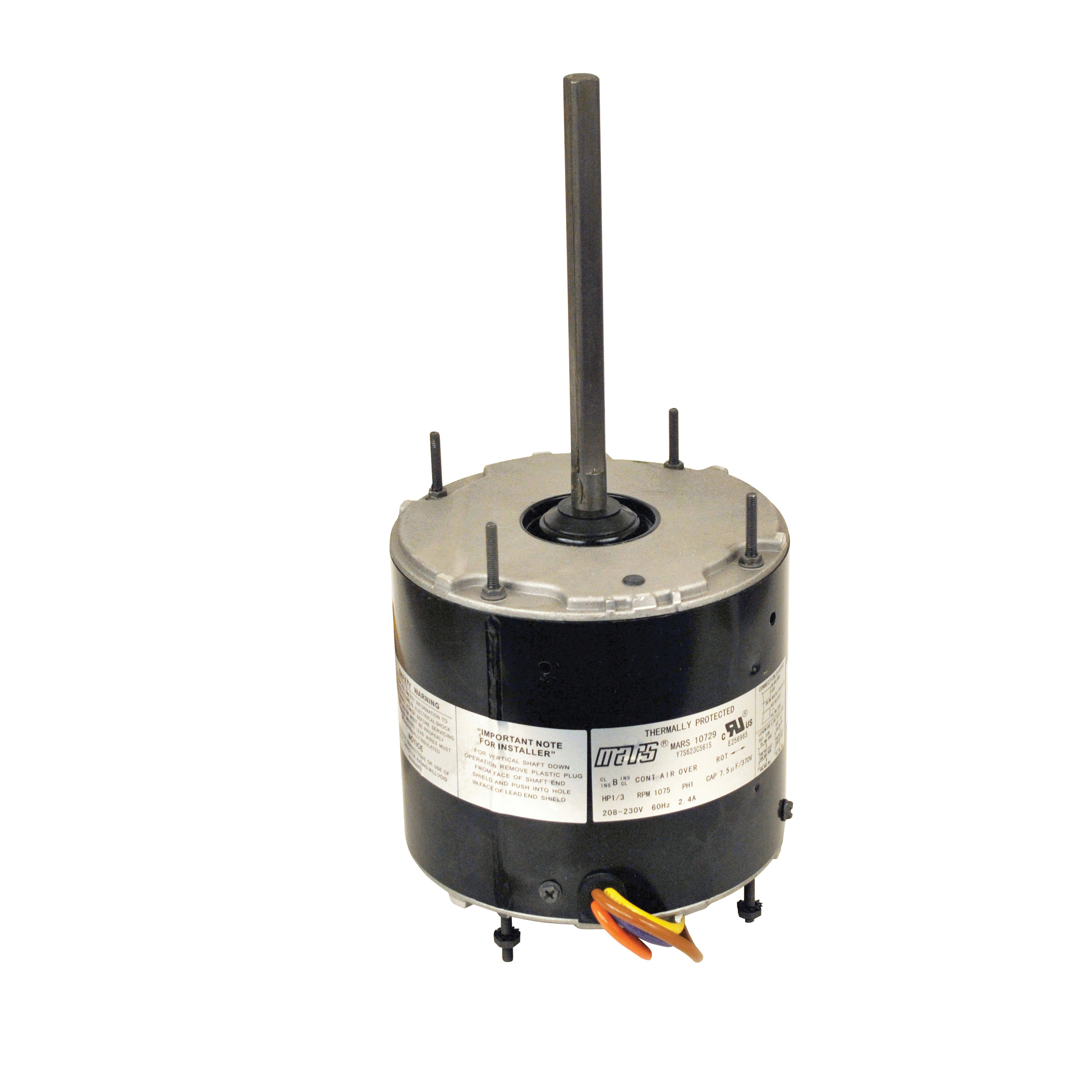

Mars® up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
Azure® by Mars® Condenser Fan Motor, Series: 100, Condenser Fan Motors Application, 1/3 hp, 208 to 230 VAC, 2.4 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, TEAO Enclosure, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible Rotation, Sleeve Bearing, All Angle Mounting, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
- All-angle sleeve or ball bearing
- Rheem® mounting holes with screws installed
- Water slinger on shaft
- Thru-bolt or band mounting
- Double full flatted shaft
- Thermal overload protection
- Fan duty, continuous, air-over
- Capacitor not included
- 7.5 uF at 370 VAC capacitor required
