Armstrong Air® QHA036S4DN1Y

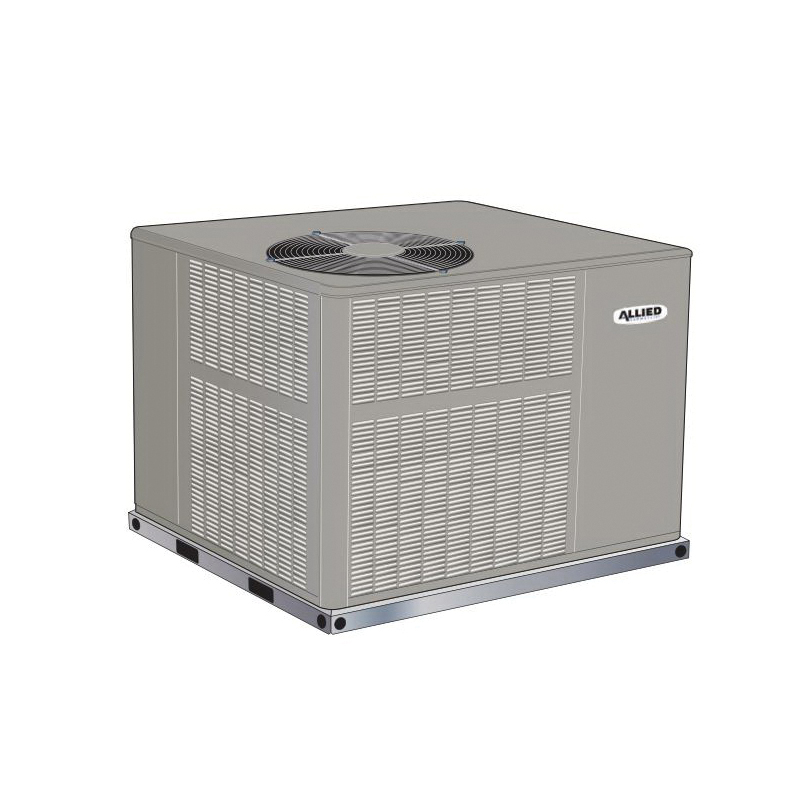

Armstrong Air® 1.623120 Q Series™/QHA Standard Efficiency Heat Pump Packaged Unit, 3 ton Nominal, 33500 Btu/hr Heating, 34000 Btu/hr Net/35000 Btu/hr Gross Cooling, 208/230 VAC, 32400 kW, 3 ph, 60 Hz, 11.5 EER, 8/6.95 HSPF

Manufacturer: Allied Air Enterprises
Brand Name: Armstrong Air®
Part#: QHA036S4DN1Y
MPN: 1.623120
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
COP Rating      :      3.7
Compressor Type      :      Scroll
Cooling Capacity      :      34000 Btu/hr Net/35000 Btu/hr Gross
Dimensions      :      56-1/8 in W x 47-5/8 in D x 44-7/8 in H
Drive Type      :      Direct
EER Rating      :      11.5
Flow Rate      :      1200 cfm
HSPF Rating      :      8/6.95
Heating Capacity      :      33500 Btu/hr
Material      :      Steel
Motor HP      :      3/4 hp Blower, 1/4 hp Fan
Motor RPM      :      825 rpm Fan
Nominal Capacity      :      3 ton
Power Source      :      208/230 VAC, 32400 kW, 3 ph, 60 Hz
Refrigerant Type      :      R-410A
SEER Rating      :      14
Series      :      Q Seriesâ„¢/QHA
Type      :      Standard Efficiency

Armstrong Air®, 1.623120, Heat Pump Packaged Unit, Standard Efficiency, Series: Q Series™/QHA, 3 ton Nominal, 33500 Btu/hr Heating, 34000 Btu/hr Net/35000 Btu/hr Gross Cooling, 208/230 VAC, 32400 kW, 3 ph, 60 Hz Power Source, 1200 cfm Flow Rate, 11.5 EER, 14 SEER, 8/6.95 HSPF, 3.7 COP, Scroll Compressor, R-410A Refrigerant, 3/4 hp Blower, 1/4 hp Fan Motor, 825 rpm Fan, Direct Drive, Steel, 56-1/8 in W x 47-5/8 in D x 44-7/8 in H Dimensions

  • Accommodates both horizontal and downflow applications
  • No special rigging or brackets required for placement
  • Side and bottom connection entrances
  • Base rails with forklift slots
  • Quick connect electric connections
  • Factory installed float switch
  • Easy-to-install, plug-and-play accessories that do not require disassembly
