| Cooling Capacity | : | 60000 Btu/hr |
| Dimensions | : | 21 in W x 21 in D x 26 in H |
| Finish | : | Galvanized |
| Flow Rate | : | 1200 cfm |
| Heating Capacity | : | 68300 Btu/hr |
| Motor HP | : | 3/4 hp |
| Motor Type | : | ECM Variable Speed |
| Power Source | : | 208/230 VAC, 1 ph, 60 Hz |
| Return Air Opening | : | 19-1/2 in W x 19-1/2 in D |
| Series | : | EFV |
| Supply Air Opening | : | 19 in W x 16-1/2 in D |
| Supply Opening Depth | : | 16-1/2 in |
| Supply Opening Width | : | 22-1/2 in |
| Type | : | Modular Air System Variable |

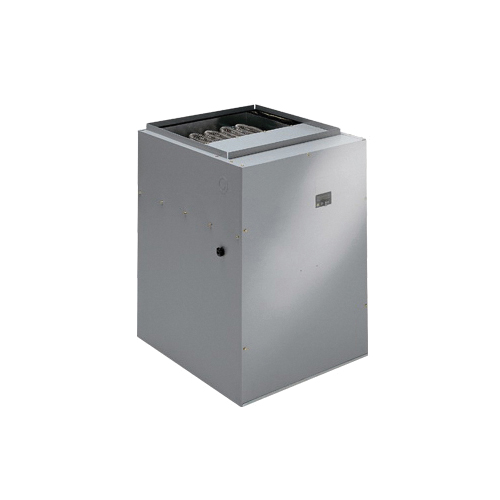

Armstrong Air® Electronic Furnace, Modular Air System Variable, Series: EFV, 60000 Btu/hr Cooling, 68300 Btu/hr Heating, 1200 cfm, 208/230 VAC, 1 ph, 60 Hz Power Source, 19 in W x 16-1/2 in D Supply Air Opening, 19-1/2 in W x 19-1/2 in D Return Air Opening, ECM Variable Speed Motor, 21 in W x 21 in D x 26 in H Dimensions
- 49.9 to 108.5 A minimum circuit
- 5.7 A rated load
- 3/4 hp blower motor
- Upflow, counterflow and horizontal positions
- Cabinet dimensions match standard furnace widths
- Painted galvanized cabinet
